Industrial Grade 5.5KW Waterproof Servo Motor Low RPM High Torque for Printing Equipment

Model：180-M35015

Reservation Now

Consult immediately

QR code

Detail

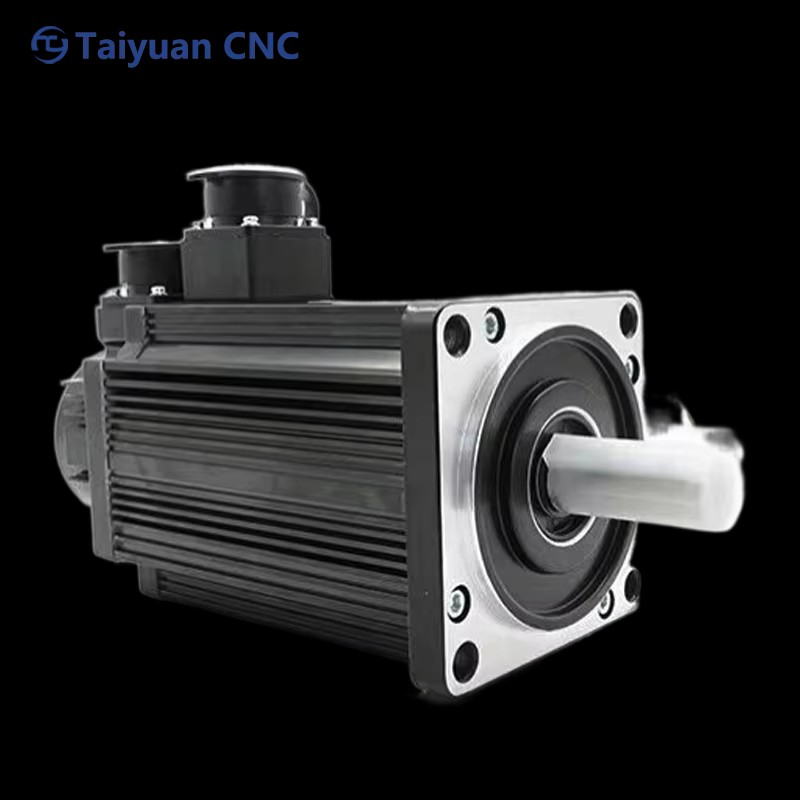

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	180-M35015
Rated power(Kw)	5.5
Rated voltage(v)	220
Rated current(A)	24
Rated speed(rpm)	1500
Rated torque(N.m)	35
Peak torque(N.m)	70
Voltage constant(V/1000r/min)	90
Torgue coefficient(N.m/A)	1.45
Rotor inertia(Kg.M2)	12.25*0.001
LINE-LINE RESISTANCE (Q)	0.28
LINE-LINE INDUCTANCE (mH)	1.0
ELECTRICAL TIME-CONSTANT (MS)	7.14
Weight(kg)	30.5
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing


Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

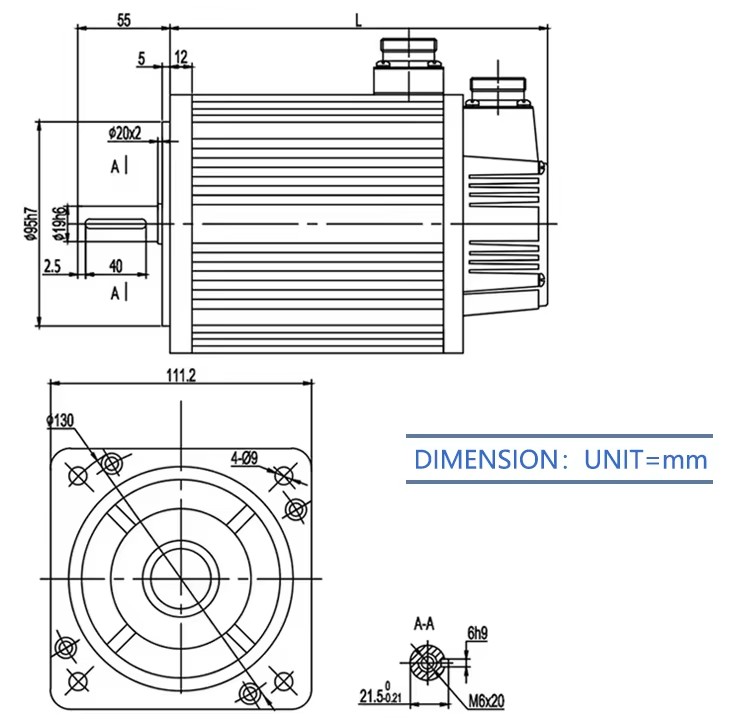

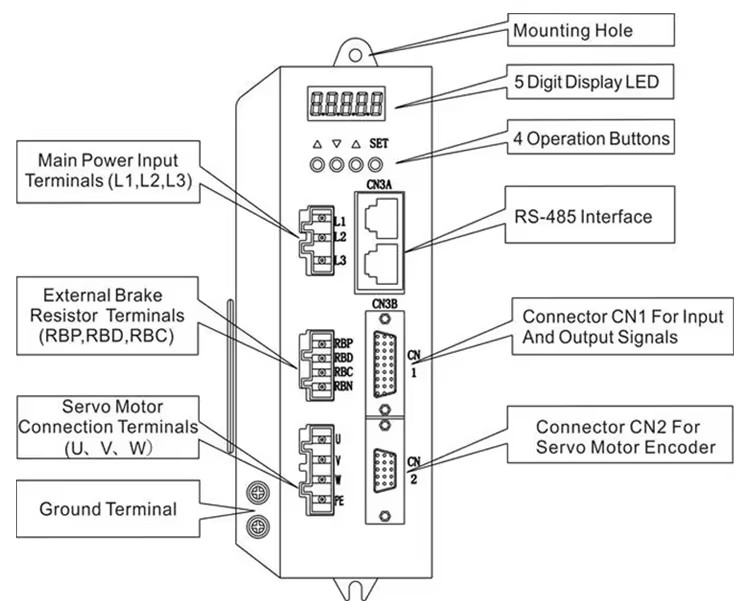

详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg 详情图片_15.jpg
