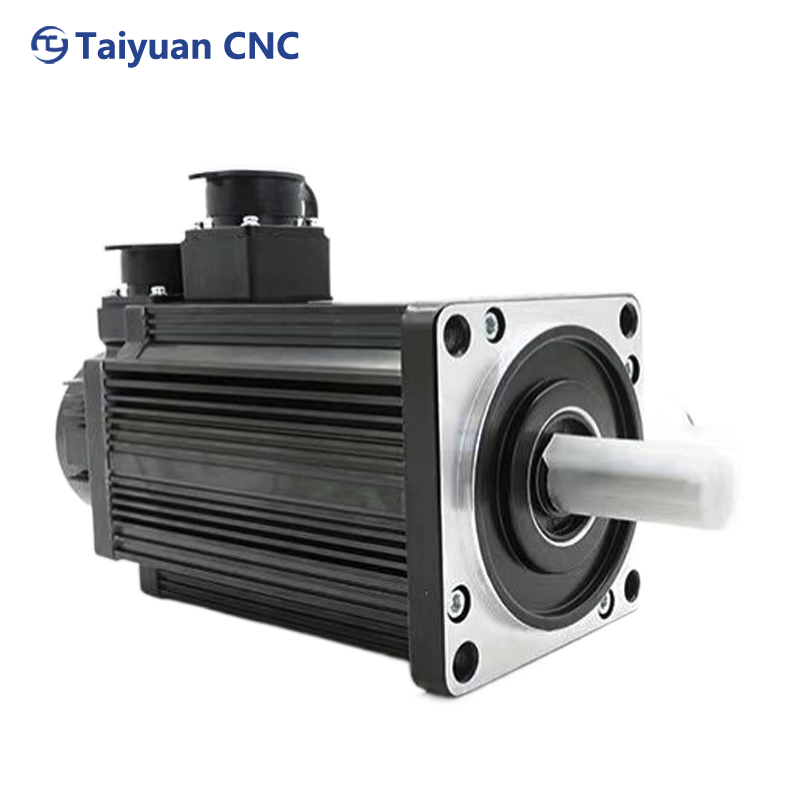

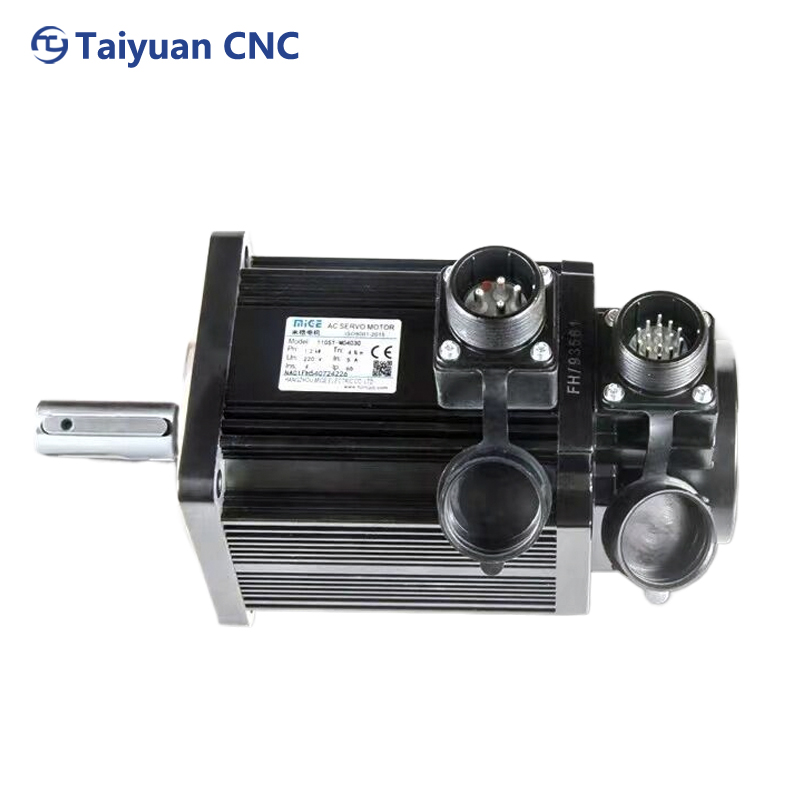

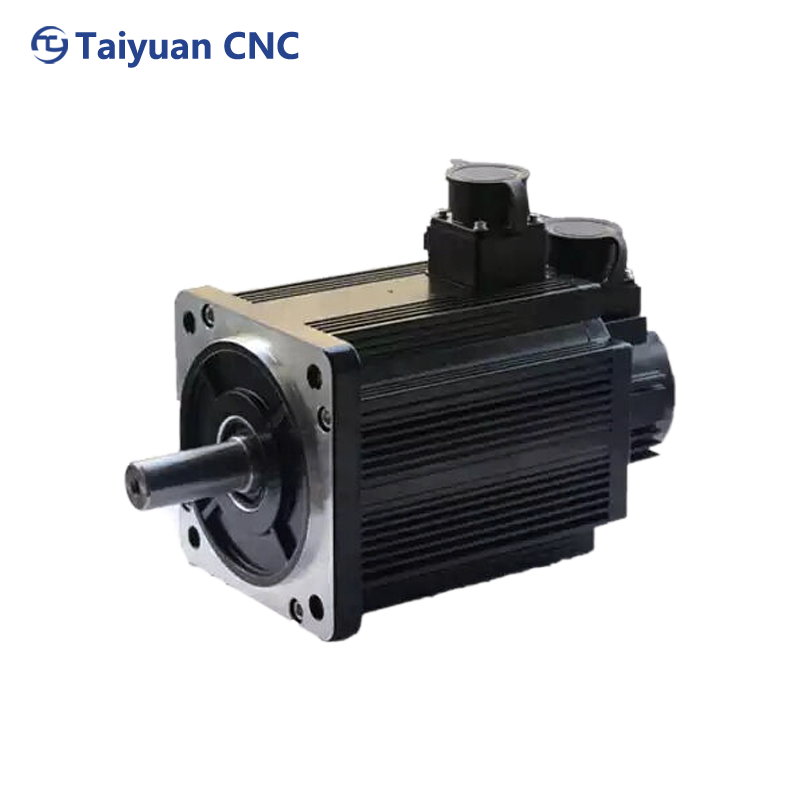

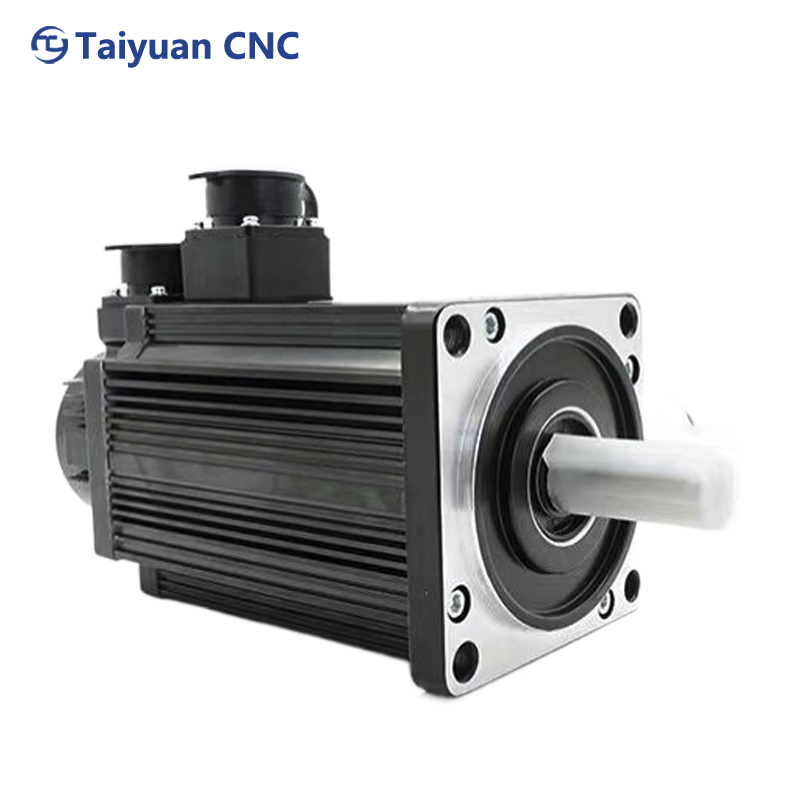

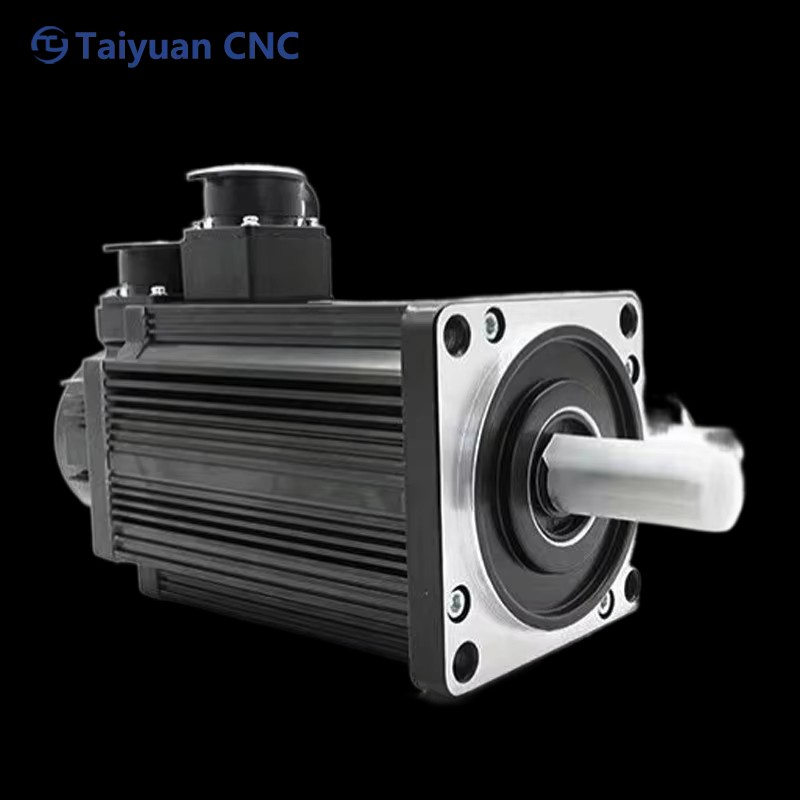

High Efficiency 75KW AC Servo Motor CE Certified for Industrial Automation Systems

Model：180-M48015

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	180-M48015
Rated power(Kw)	7.5
Rated voltage(v)	220
Rated current(A)	32
Rated speed(rpm)	1500
Rated torque(N.m)	48
Peak torque(N.m)	96
Voltage constant(V/1000r/min)	94
Torgue coefficient(N.m/A)	1.5
Rotor inertia(Kg.M2)	16.72*0.001
LINE-LINE RESISTANCE (Q)	0.11
LINE-LINE INDUCTANCE (mH)	0.77
ELECTRICAL TIME-CONSTANT (MS)	7
Weight(kg)	40
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing


Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg 详情图片_15.jpg
