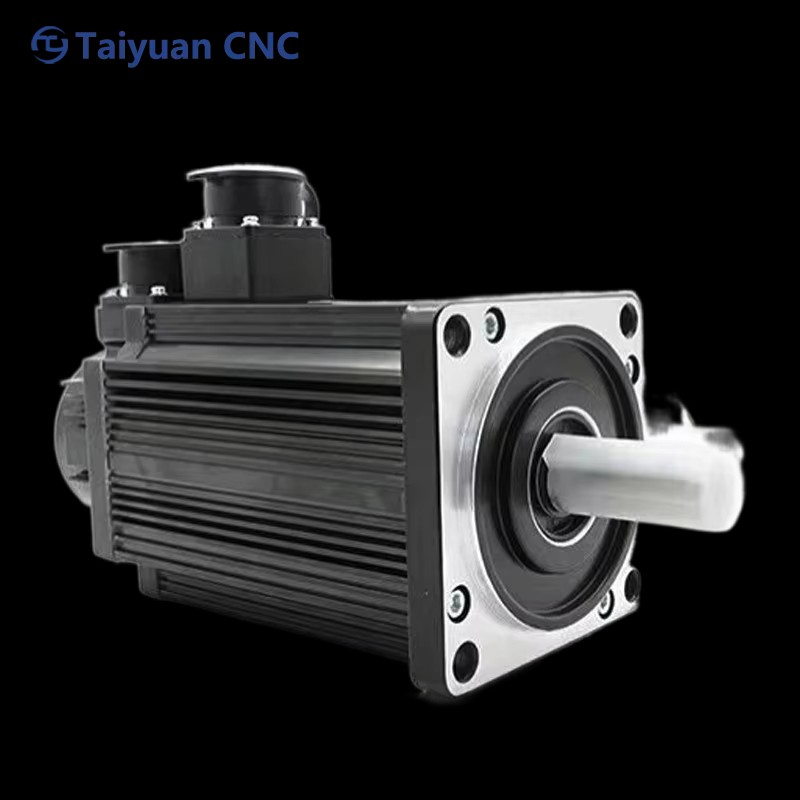

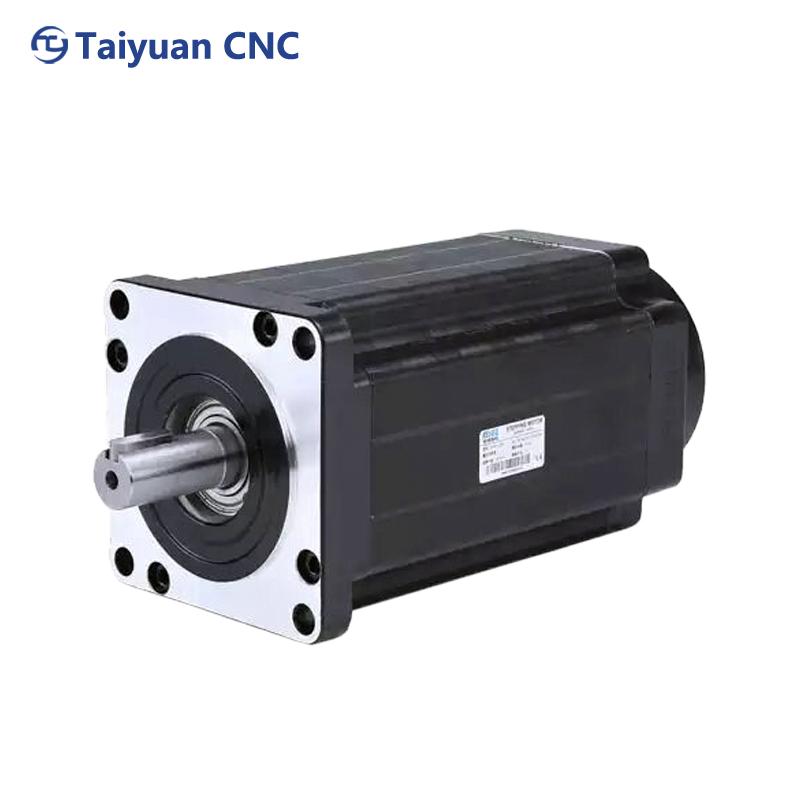

Premium Low Noise 12V Gear Motor High Torque Output for Electric Mobility Solutions

Model：130-M15025

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	130-M07725
Rated power(Kw)	2.0
Rated voltage(v)	220
Rated current(A)	7.5
Rated speed(rpm)	2500
Rated torque(N.m)	7.7
Peak torque(N.m)	22
Voltage constant(V/1000r/min)	66
Torgue coefficient(N.m/A)	1.03
Rotor inertia(Kg.M2)	1.53*0.001
LINE-LINE RESISTANCE (Q)	1.01
LINE-LINE INDUCTANCE (mH)	2.92
ELECTRICAL TIME-CONSTANT (MS)	2.91
Weight(kg)	8.3
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing

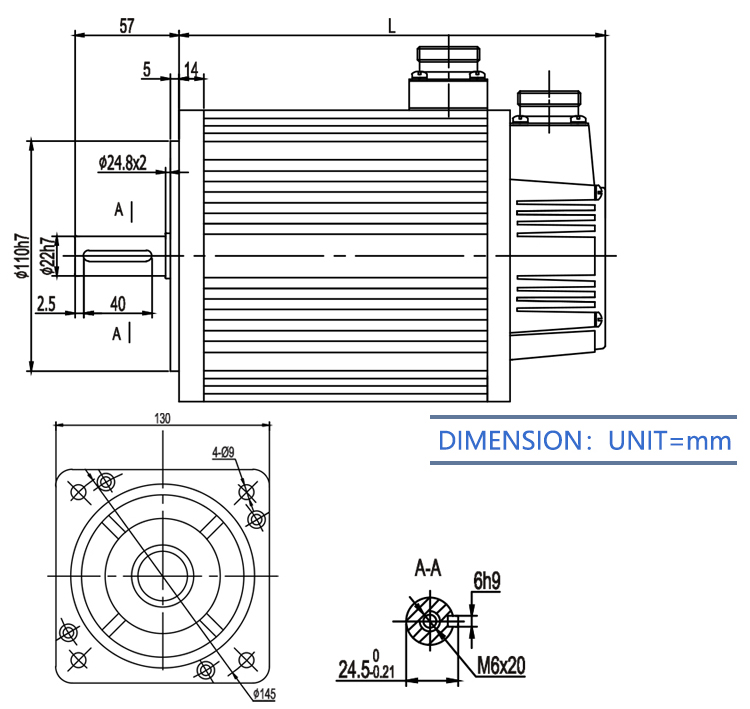

Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg 详情图片_15.jpg
