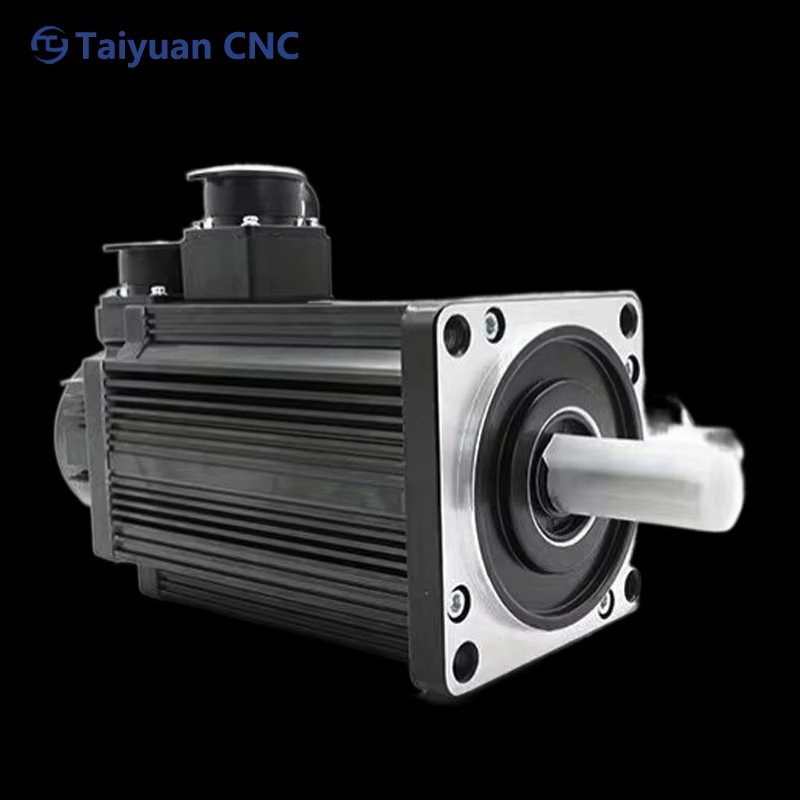

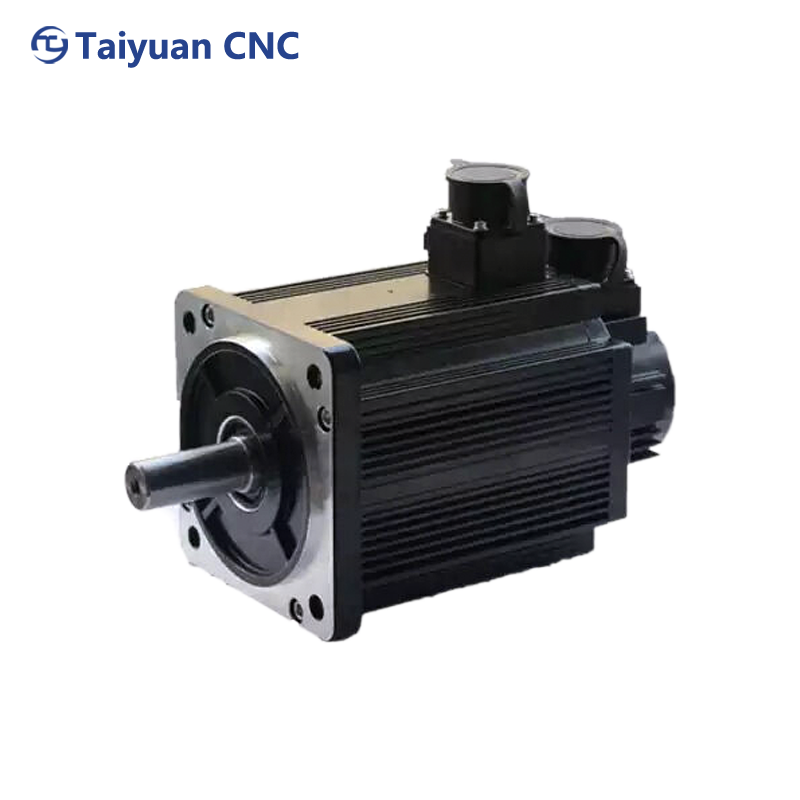

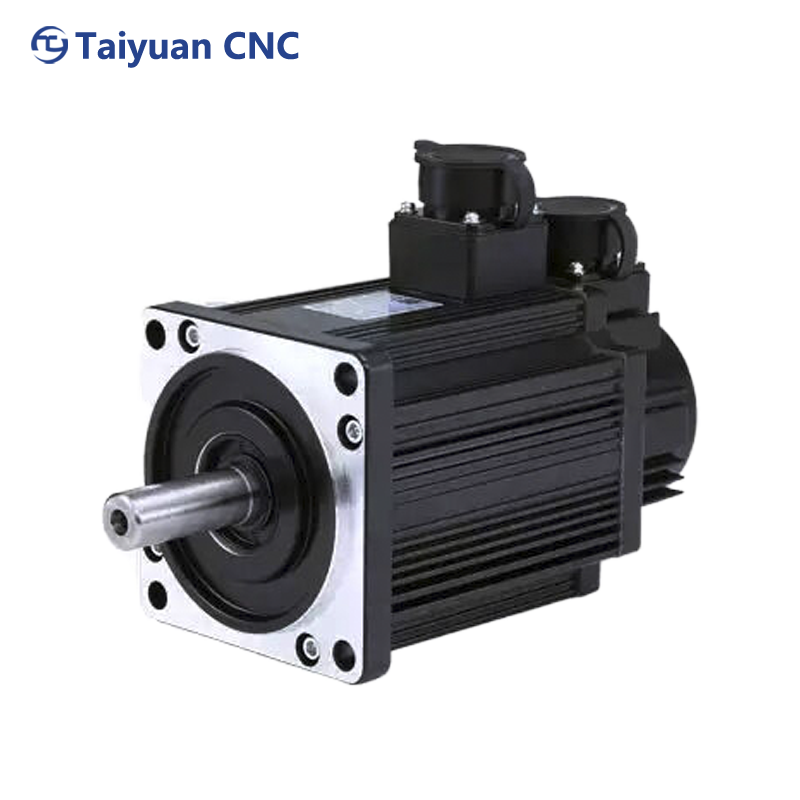

Premium 3000W Waterproof Servo Motor CE Certified for Outdoor Robotics Applications

Model：180-M19015

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	180-M19015
Rated power(Kw)	3.0
Rated voltage(v)	220
Rated current(A)	12
Rated speed(rpm)	1500
Rated torque(N.m)	19
Peak torque(N.m)	47
Voltage constant(V/1000r/min)	97
Torgue coefficient(N.m/A)	1.58
Rotor inertia(Kg.M2)	7*0.001
LINE-LINE RESISTANCE (Q)	0.42
LINE-LINE INDUCTANCE (mH)	2.42
ELECTRICAL TIME-CONSTANT (MS)	6.05
Weight(kg)	20.5
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing


Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

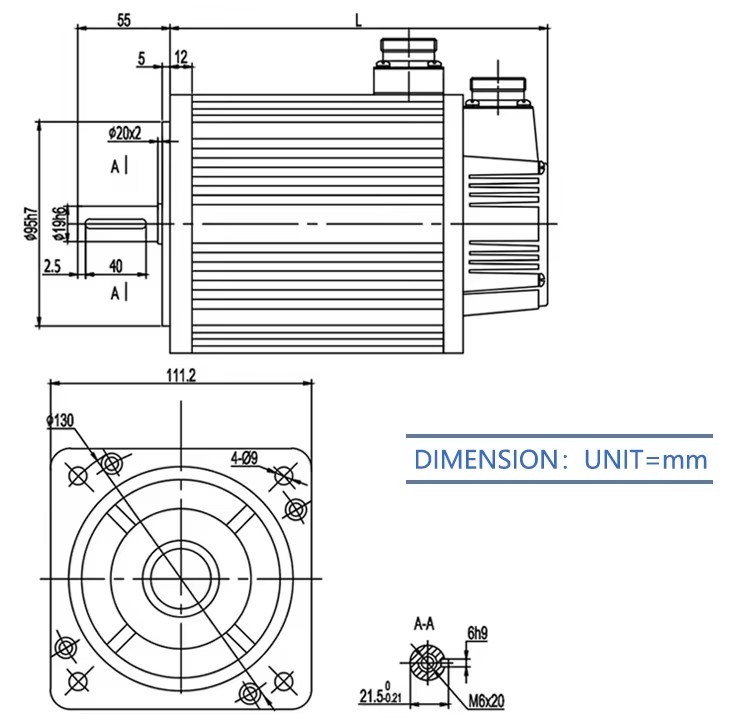

详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_14.jpg 详情图片_11.jpg 详情图片_10.jpg 详情图片_13.jpg 详情图片_15.jpg 详情图片_12.jpg
