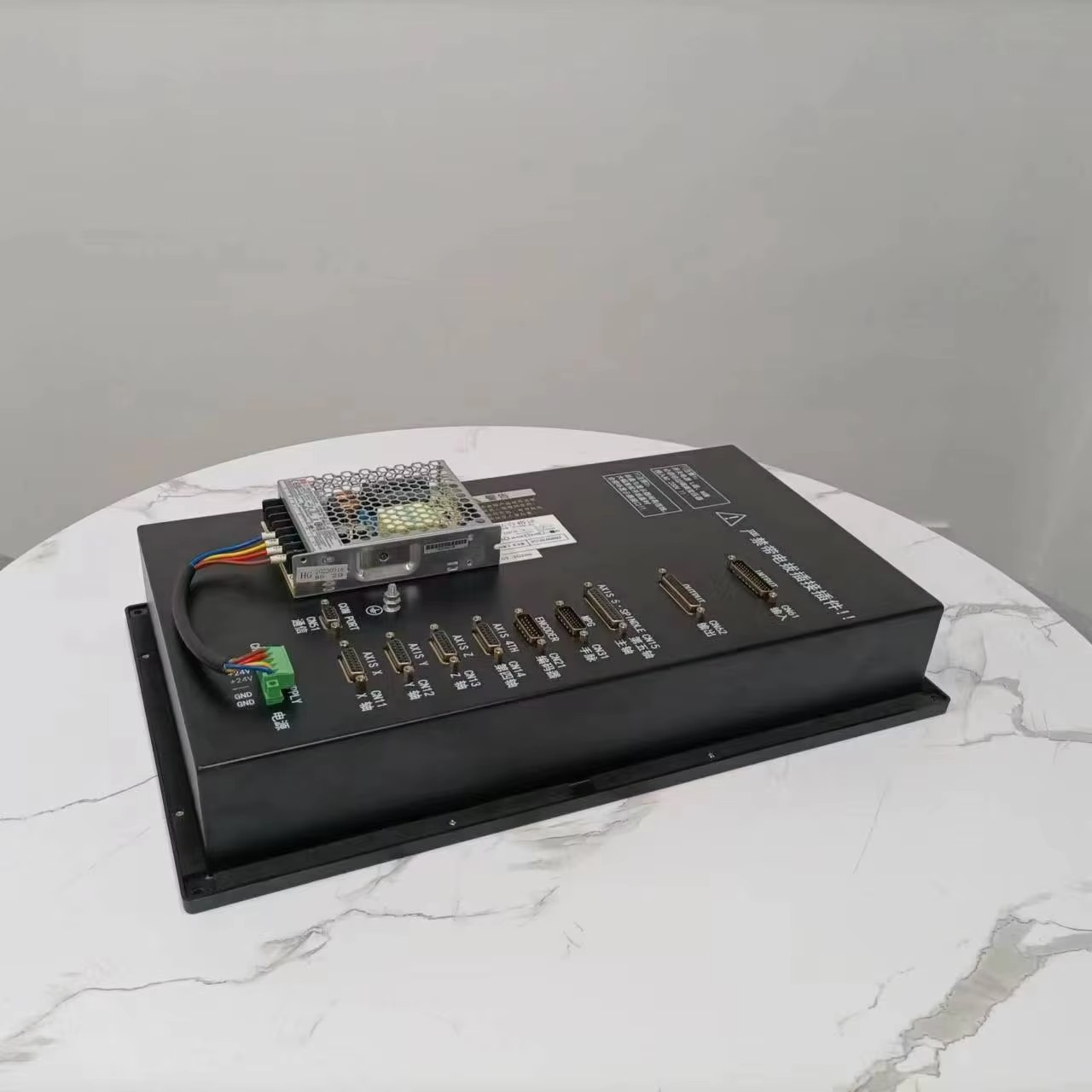

High Precision 3 Axis CNC Controller System for Mini Milling Machine Metal Processing

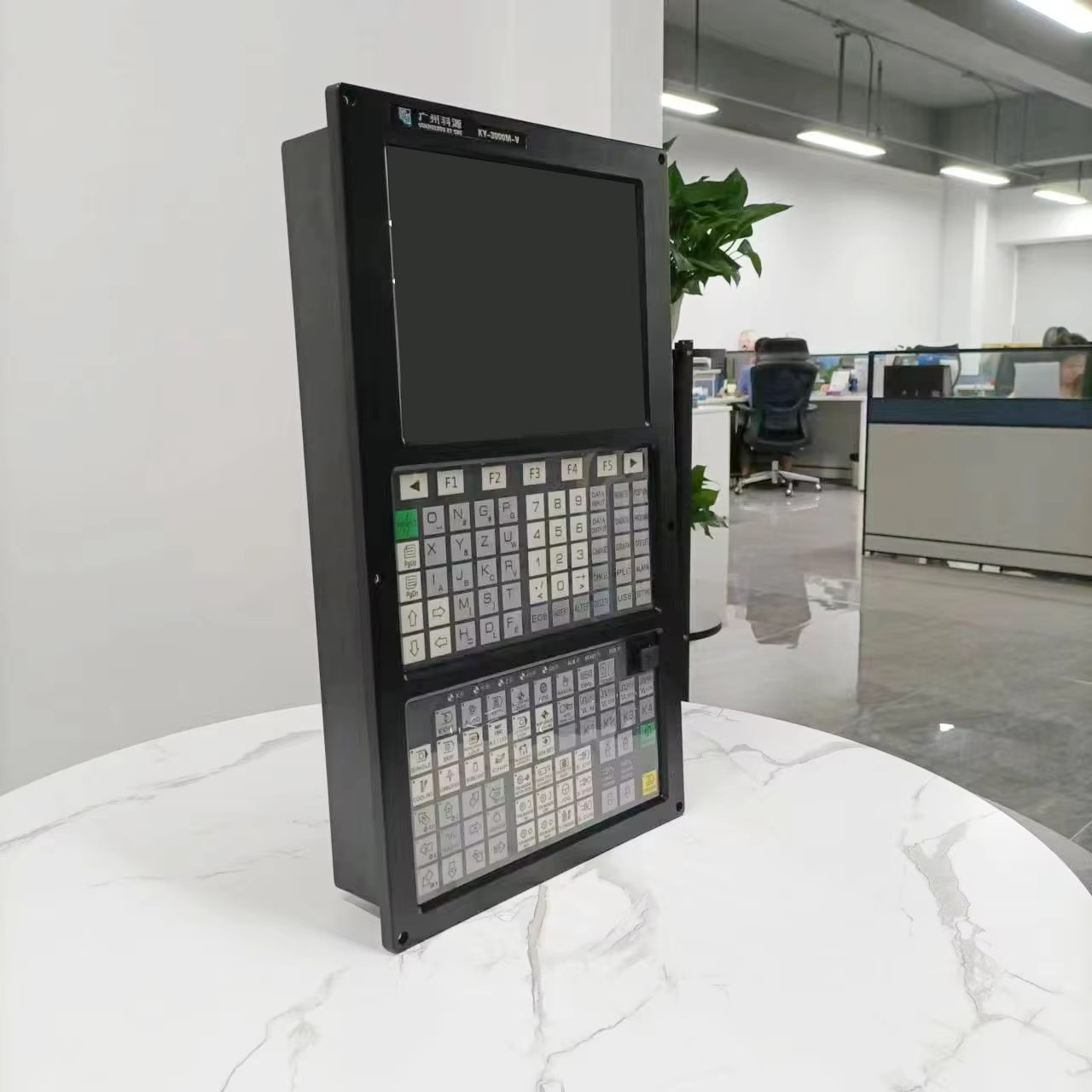

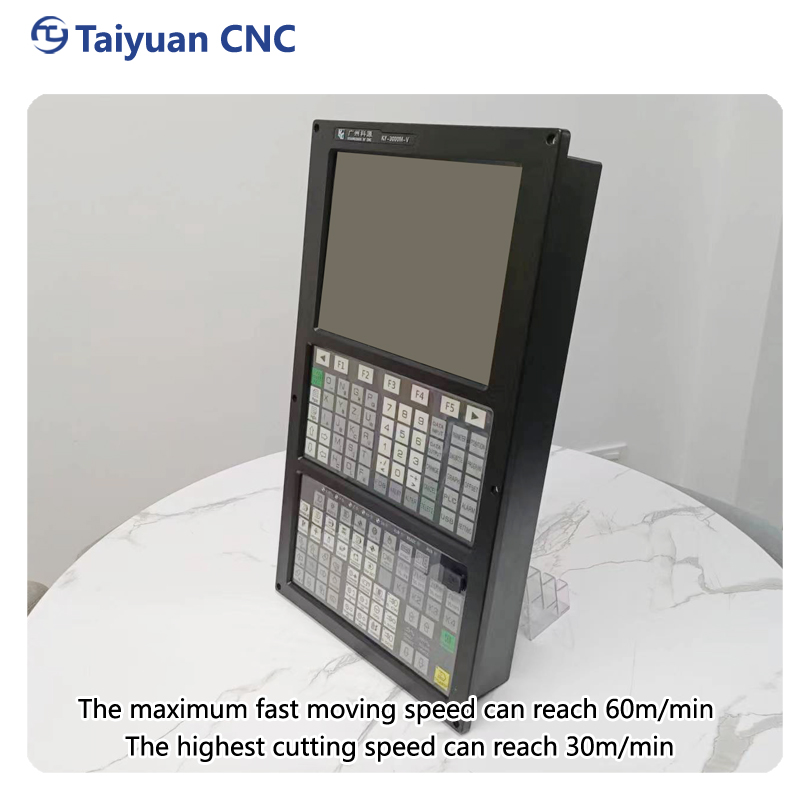

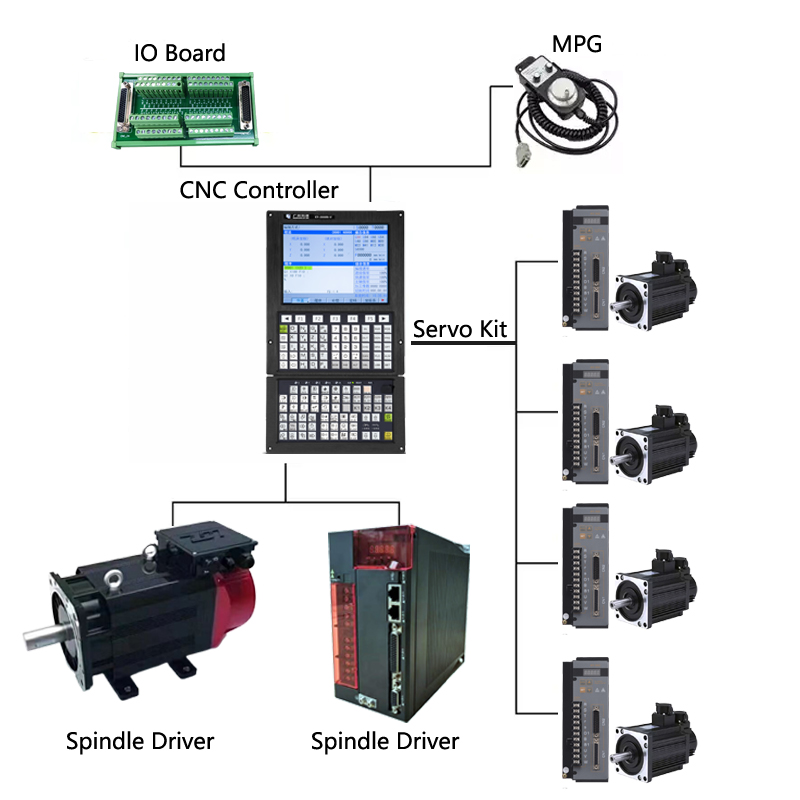

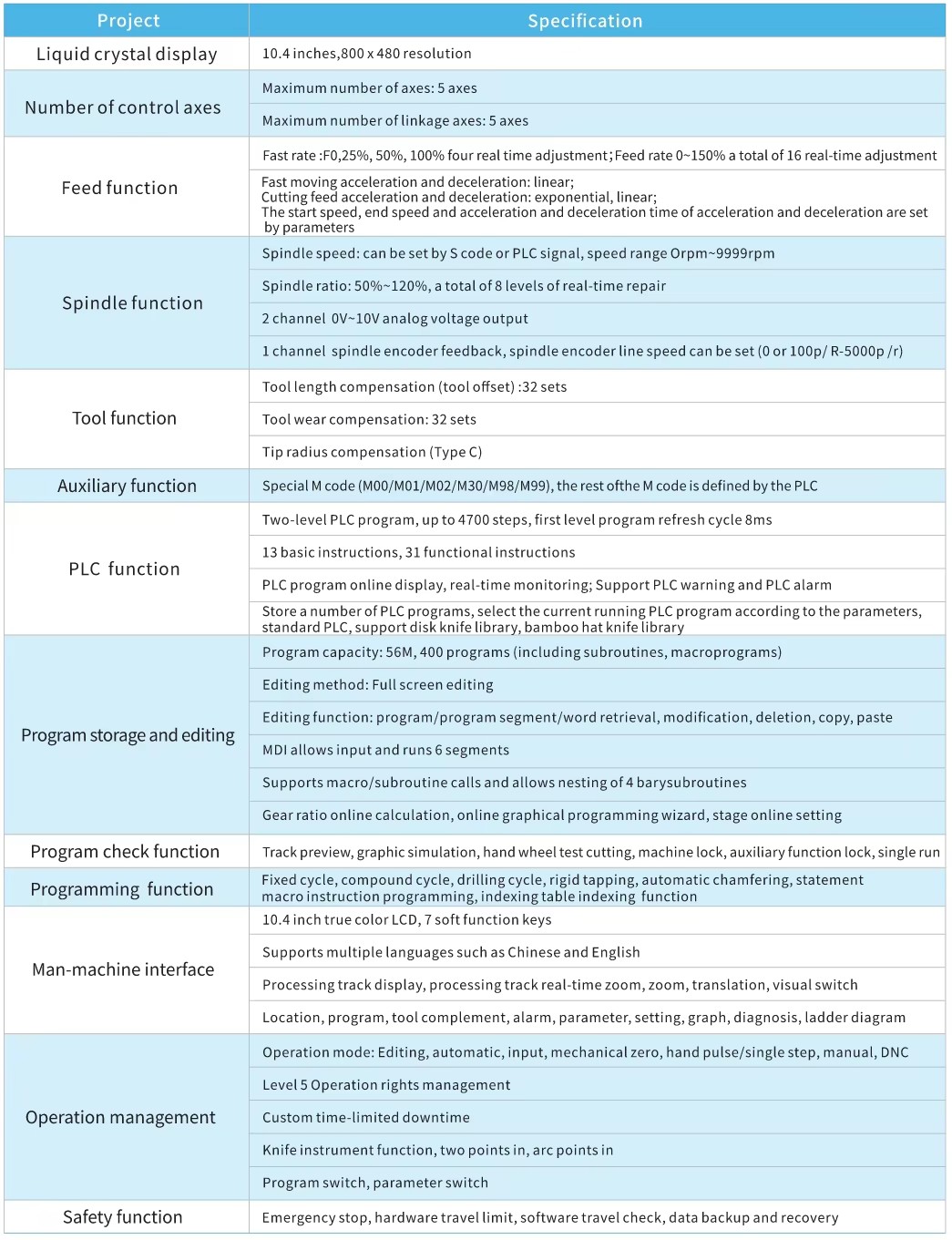

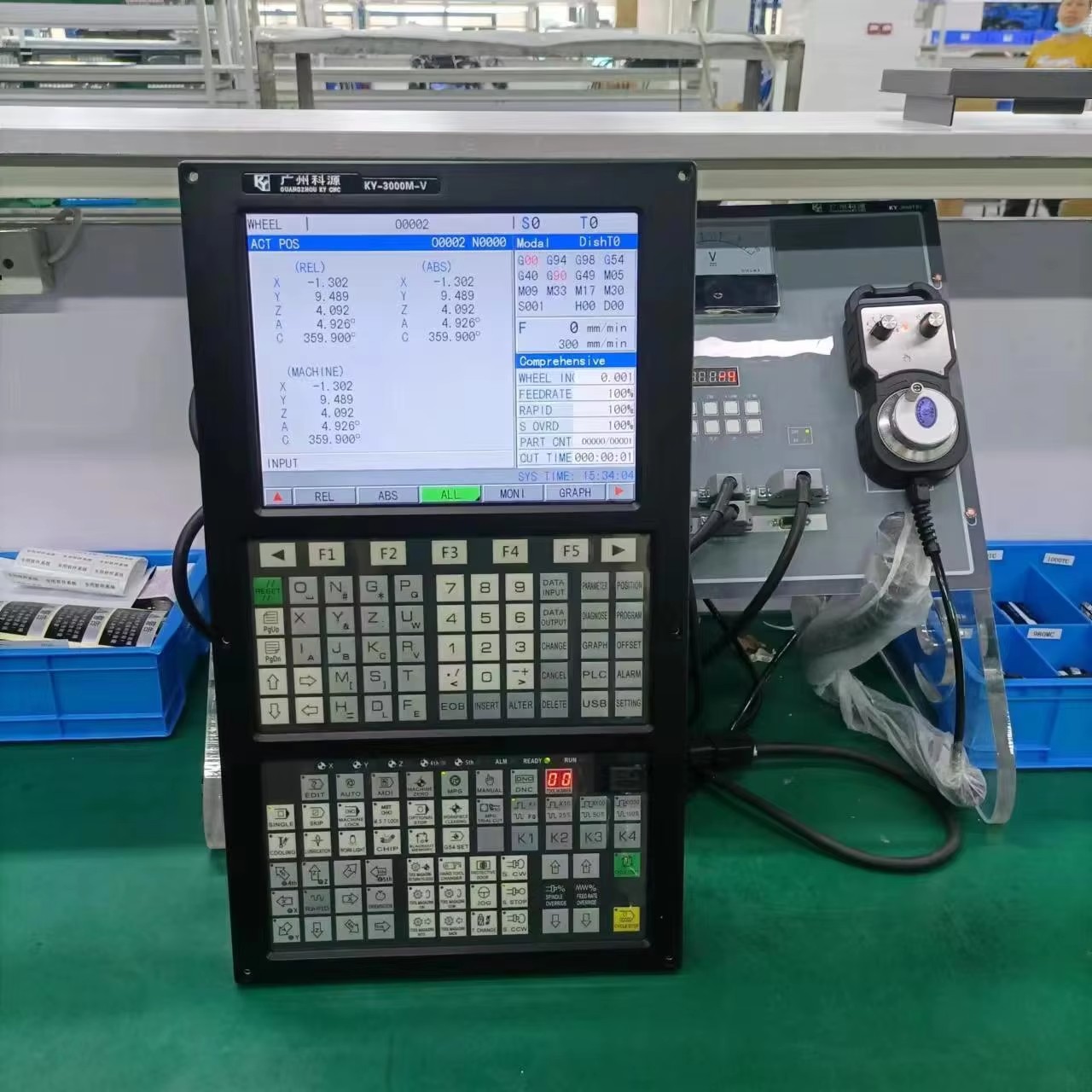

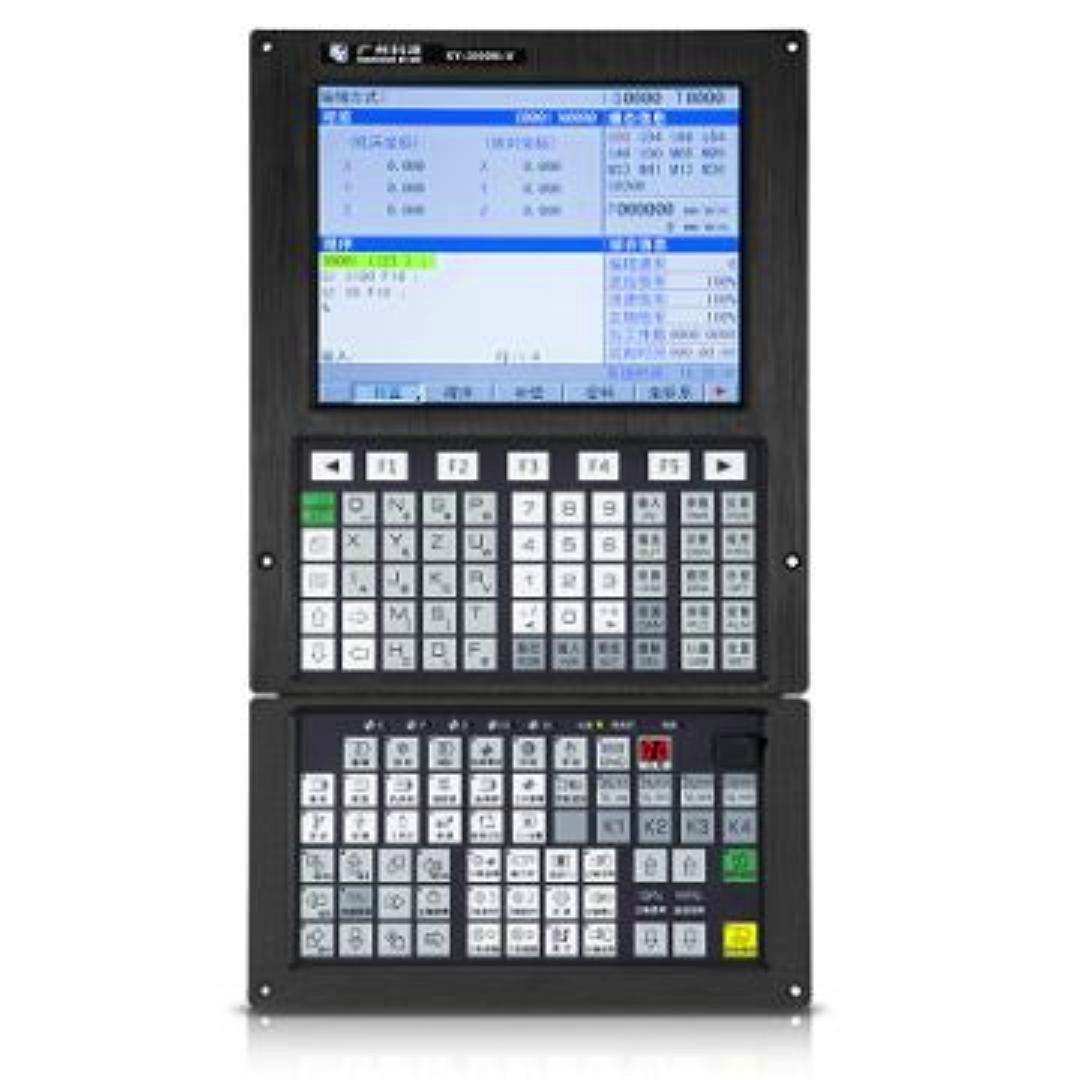

3-5 axis full English CNC milling controller

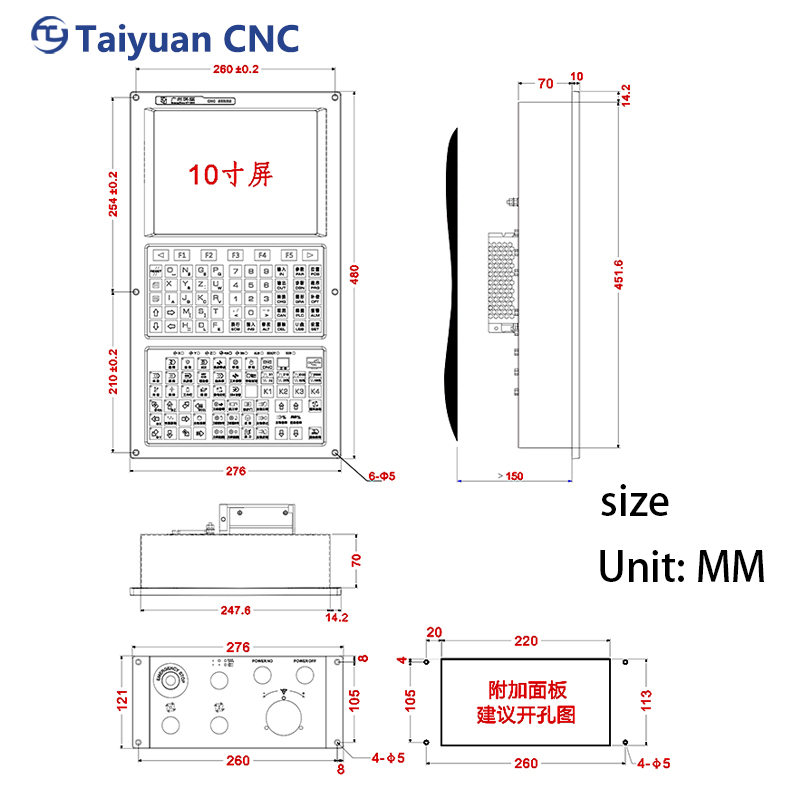

800x600, 10.4-inch true color LCD monitor

None

row tool magazine, bucket-type tool magazine, disc-type tool magazine, turret-type tool magazine, servo hat-type tool magazine

ATC, macro function, PLC function

supports analog and pulse control, pulse control: 1MHz, lμm pulse, 5V signal

spindle positioning, rigid tapping, spindle tapping

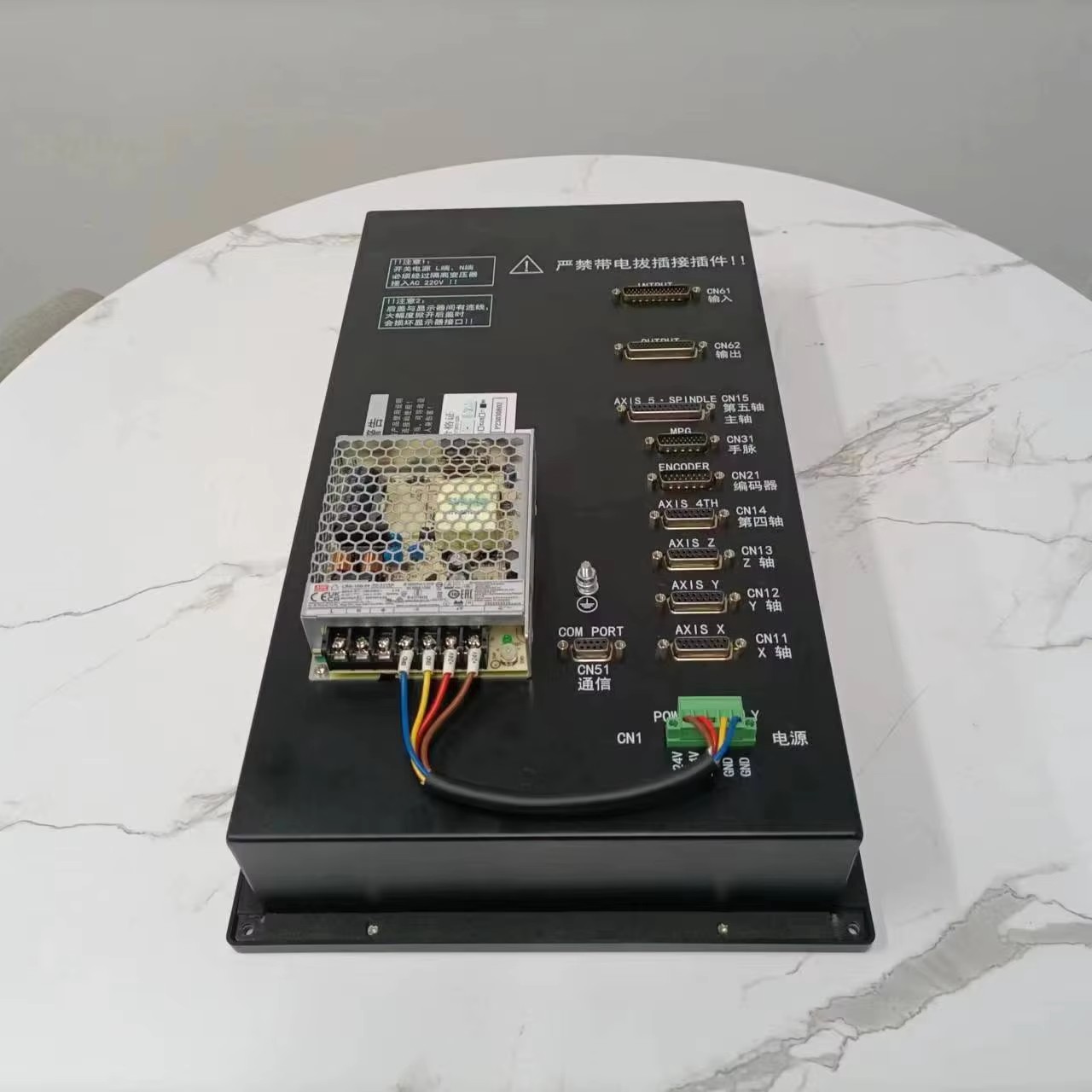

high anti-interference, 220VAC ->24VDC&5V

128MB memory, 100Mb user storage space

USB, upgrade, copy

2 channels of 0~10V analog voltage output, 1 channel of spindle encoder feedback

None

32 inputs/32 outputs, PLC online display, monitoring and design

Tool length compensation (tool offset): 256 groups Tool nose radius compensation (type C)

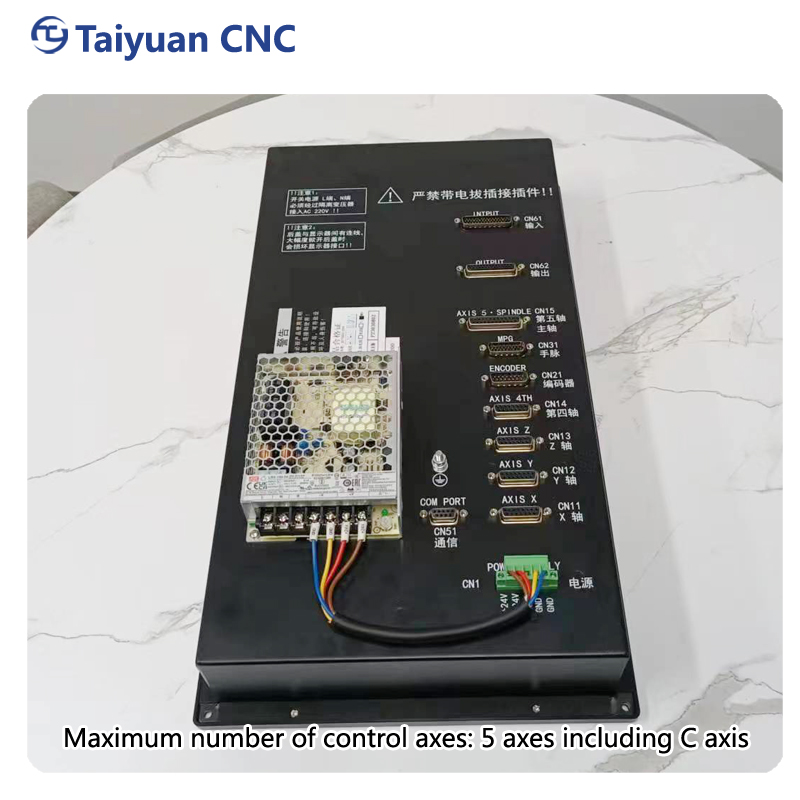

maximum control of 5 feed axes and 5 axes linkage

Chinese and English menus, programs and interfaces, full-screen version

supports macro program/subprogram calling, allowing 4 levels of nesting

screw pitch compensation, backlash compensation

The system adopts Modbus485 protocol

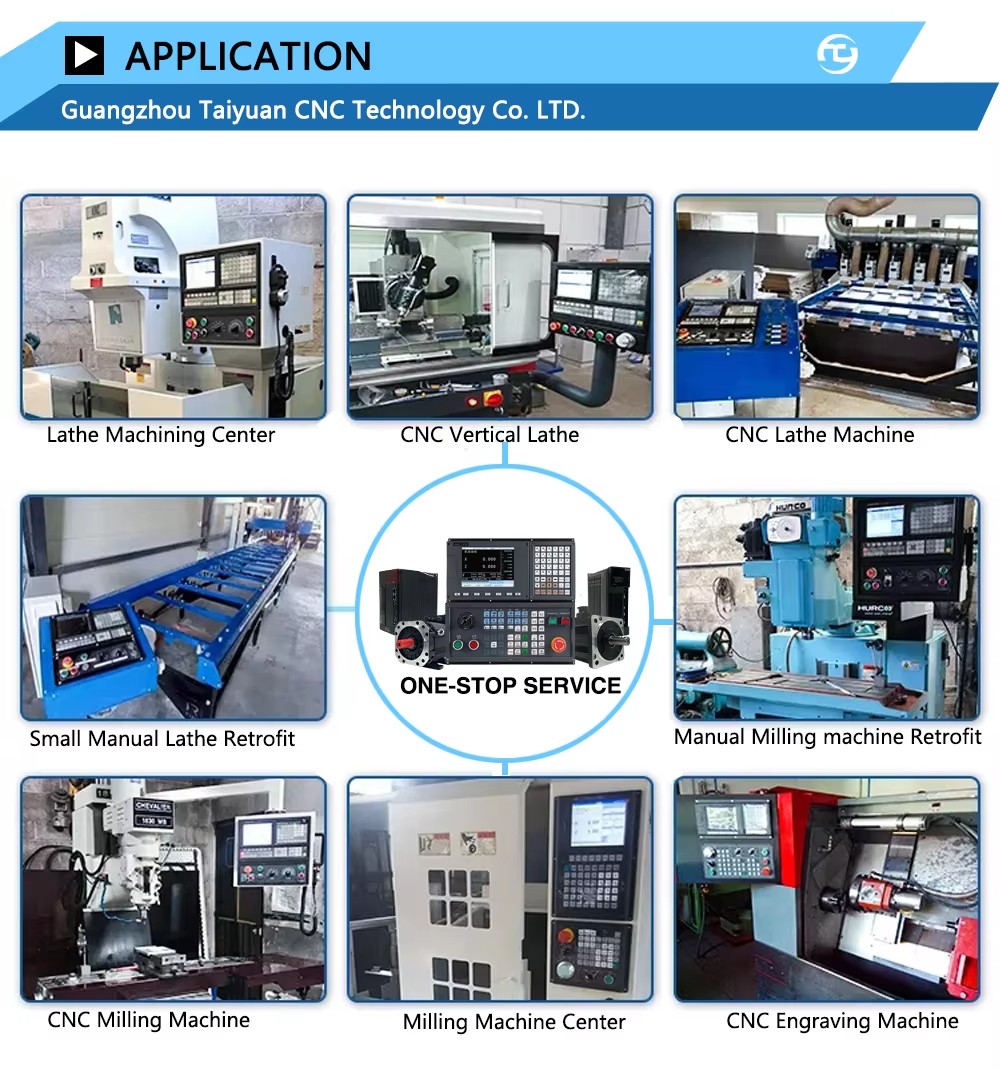

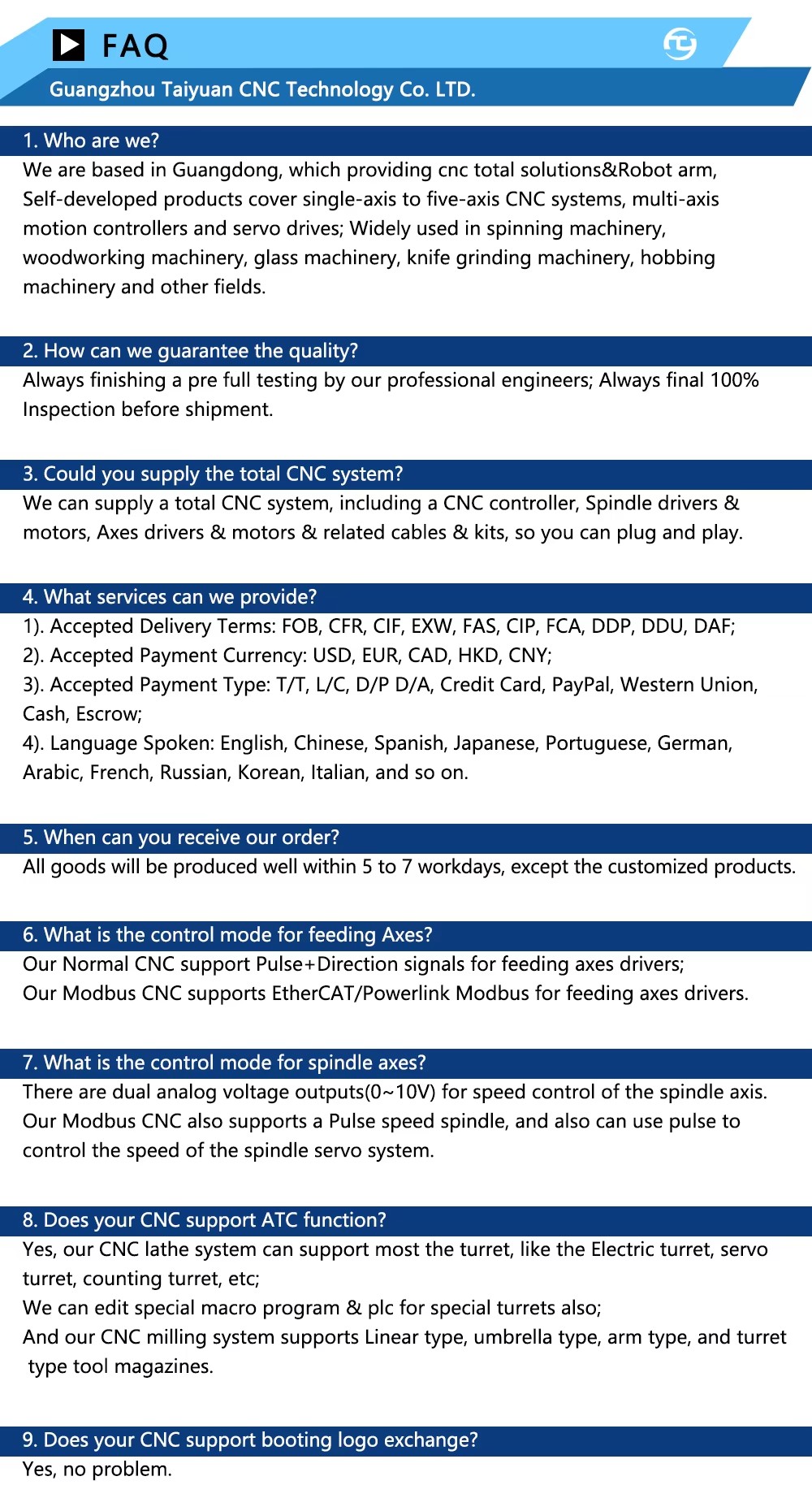

CNC milling machines, drilling machines, grinders and other machinery and automation equipment

trajectory preview, graphic simulation, hand wheel test cutting, machine tool lock, auxiliary function lock
