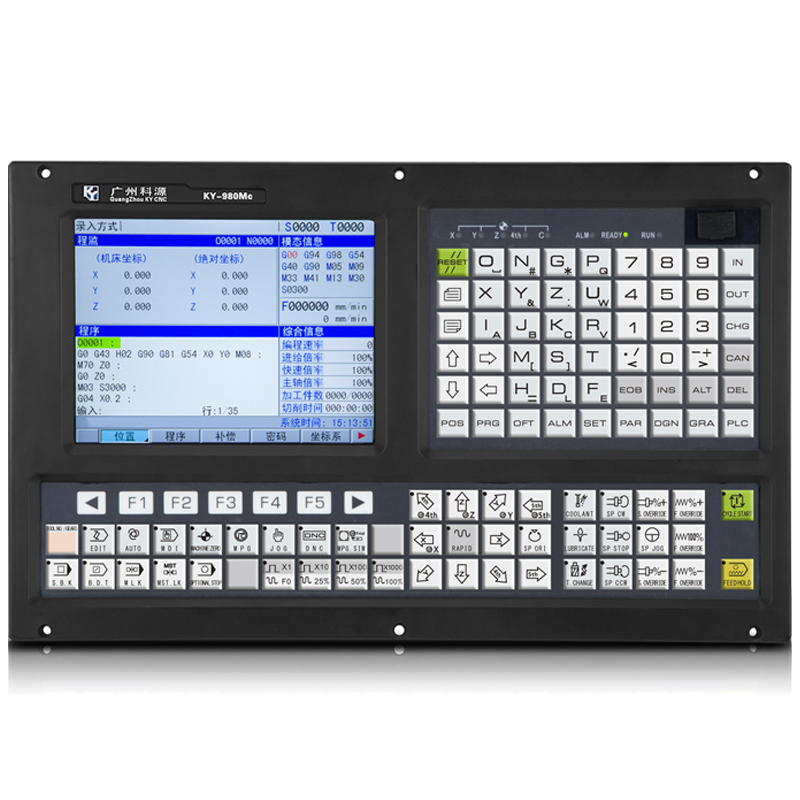

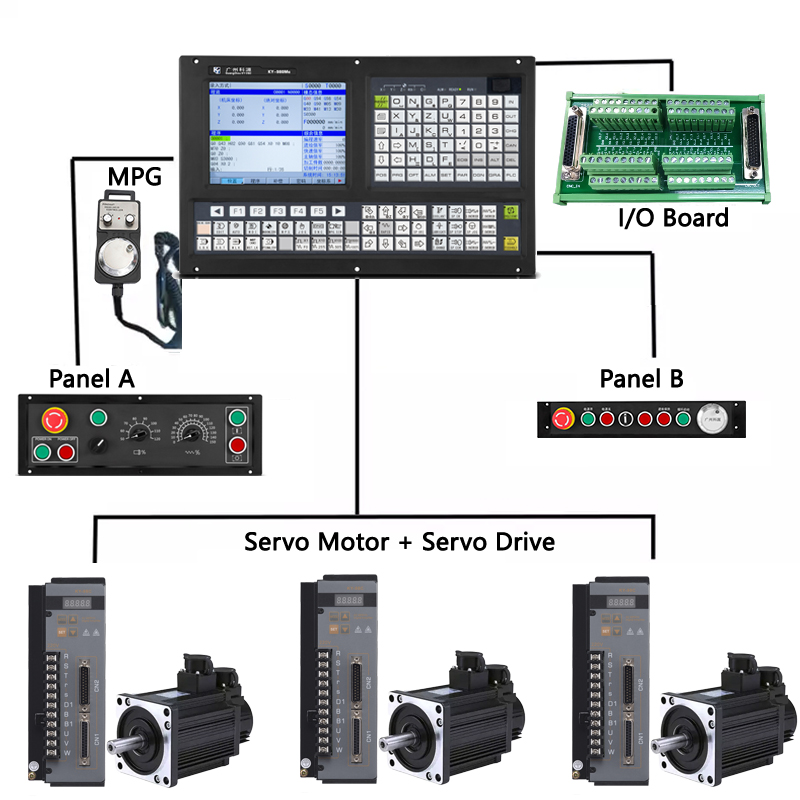

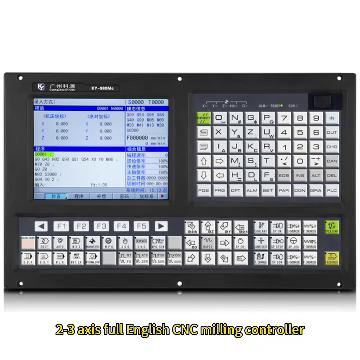

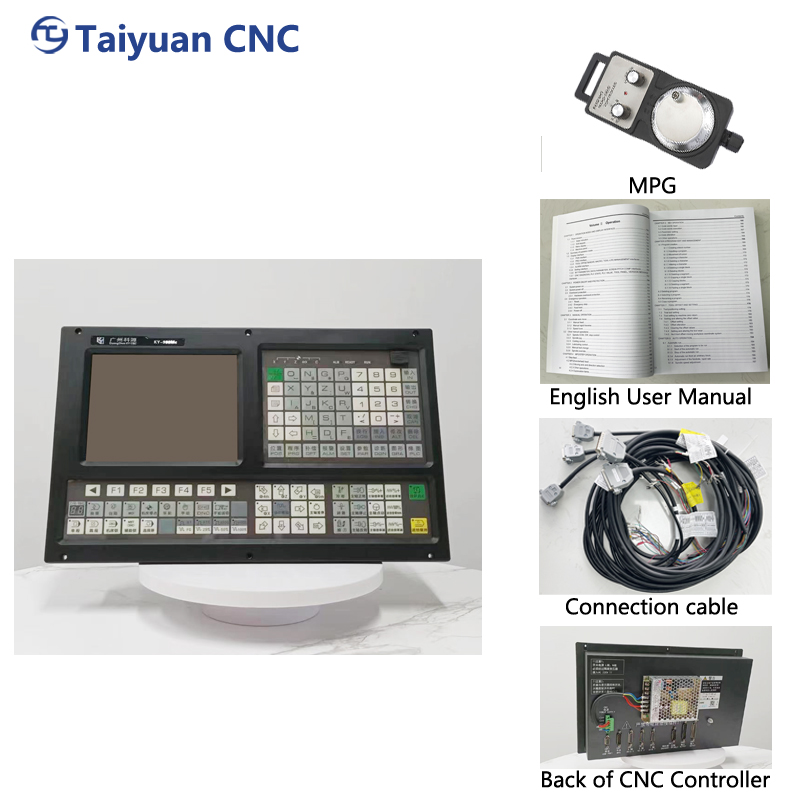

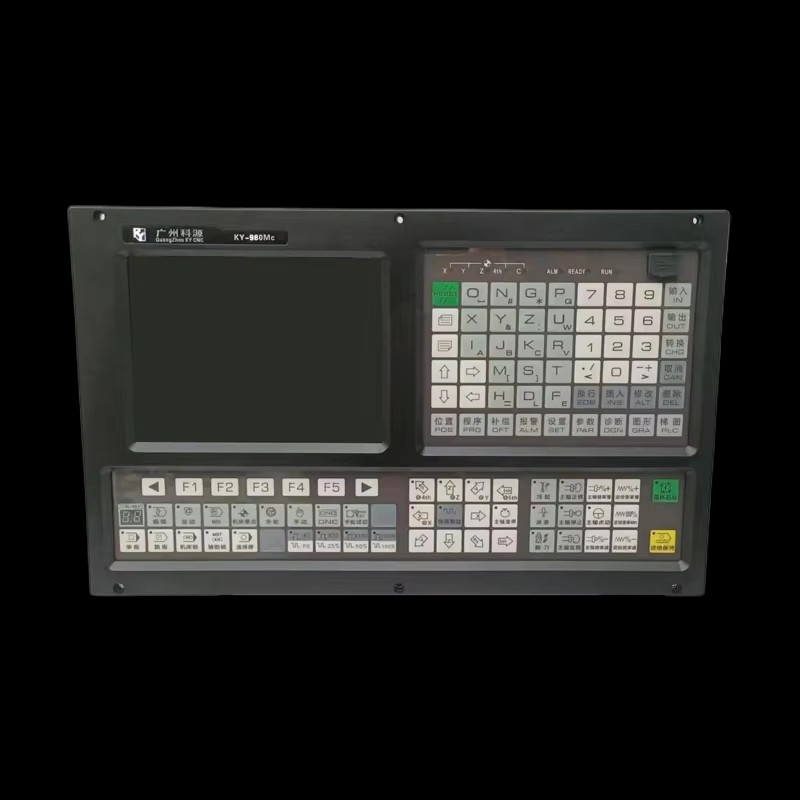

Factory Direct Sales 980MC 3 Axis Cnc Controller Cnc Manufacturing Cnc Controller Kit With Servos fo

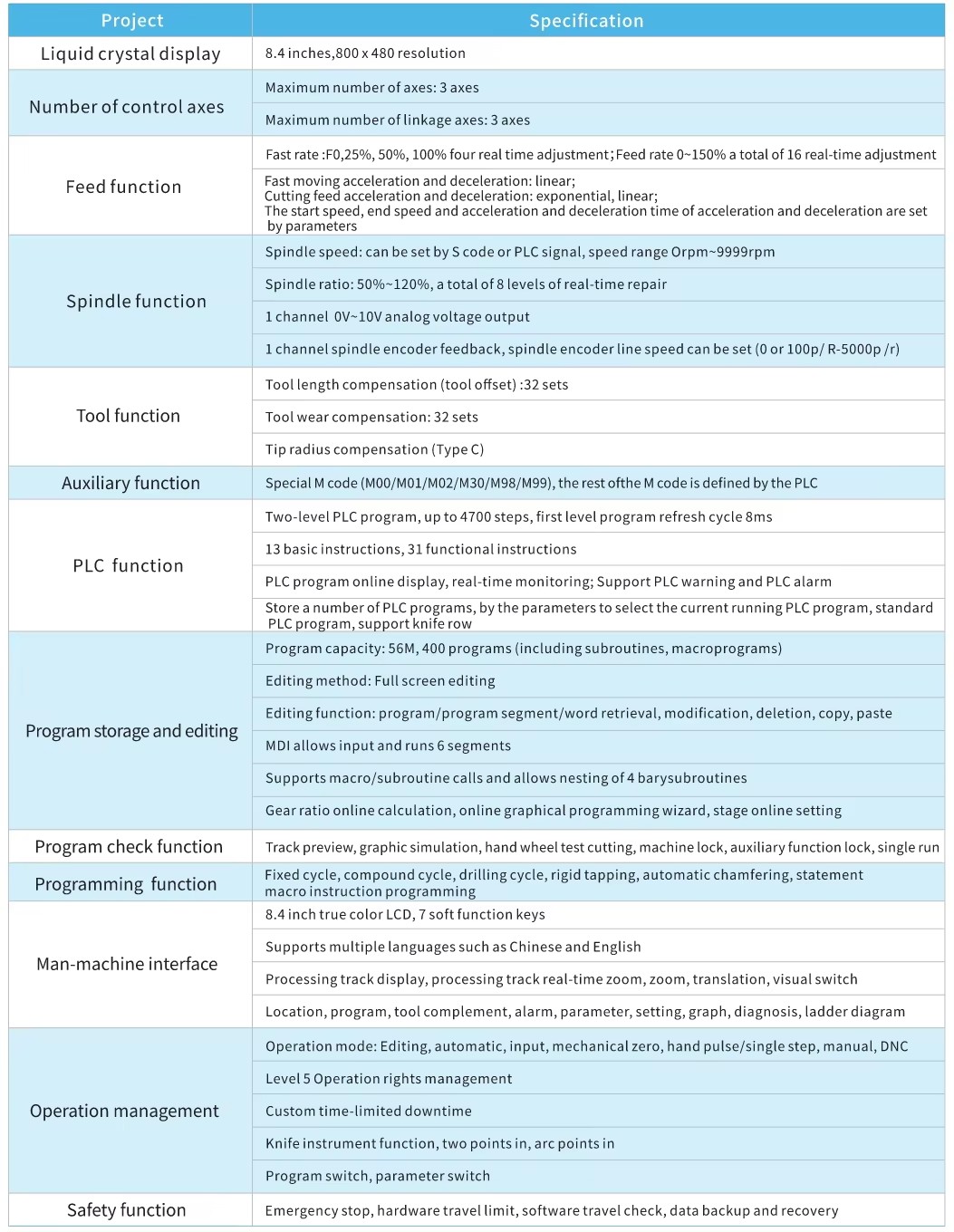

Product Characteristics

◆   8.4 inch LCD full screen editing system

◆   Online modification of knife repair, parameters and other operations

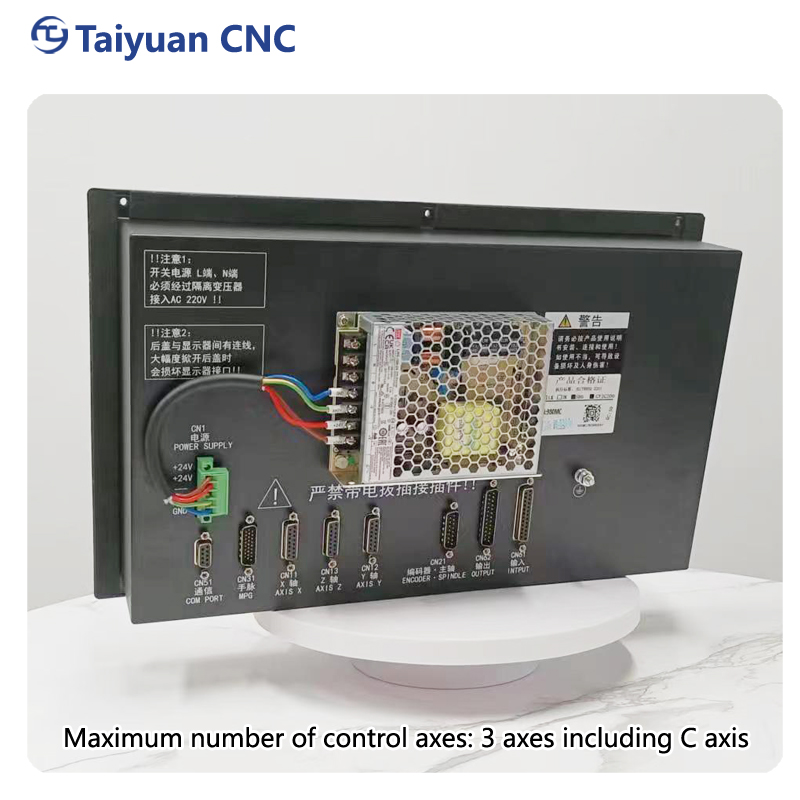

◆ Maximum control 3 axes to achieve 3-axis linkage

◆ Support macro/subroutine calls, allowing 4 double subroutines nested

◆ Support Chinese/English and other languages display

◆ Support the tool function, two points point center, arc center function

◆ Lead screw pitch compensation to maximize machining accuracy

◆ 1ms high-speed interpolation,0.1μm control precision, significantly improve the efficiency, accuracy and surface quality of parts processing

◆ Program preprocessing, can achieve smooth and seamless connection between program segments; Smooth transitions between program segments are optional

◆ Maximum fast moving speed up to 60m/min

◆ The maximum cutting speed can reach 30m/min

◆ 56M user storage space, can store up to 400 programs

◆ Users can edit their own I/O logic control, 16 input /16 output
