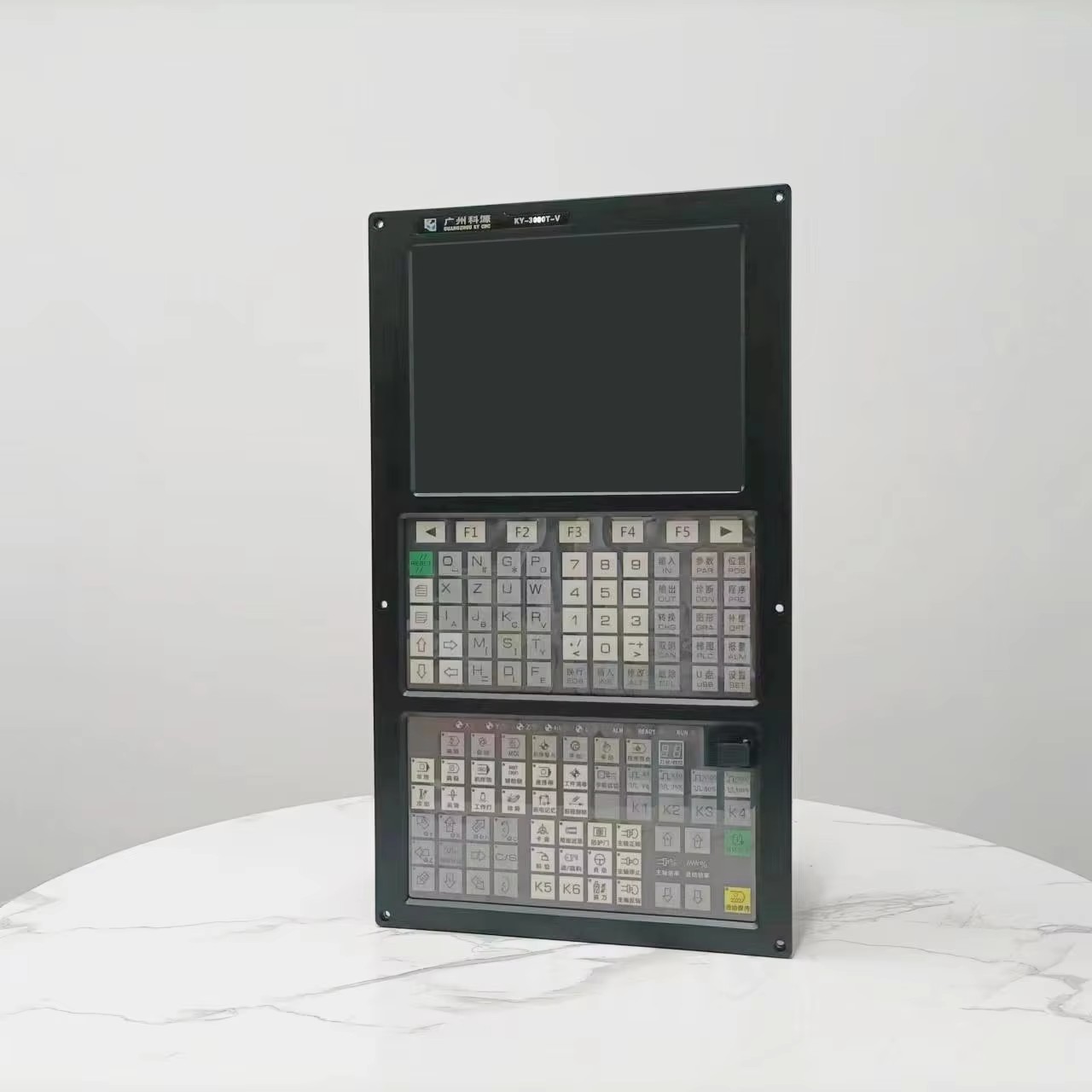

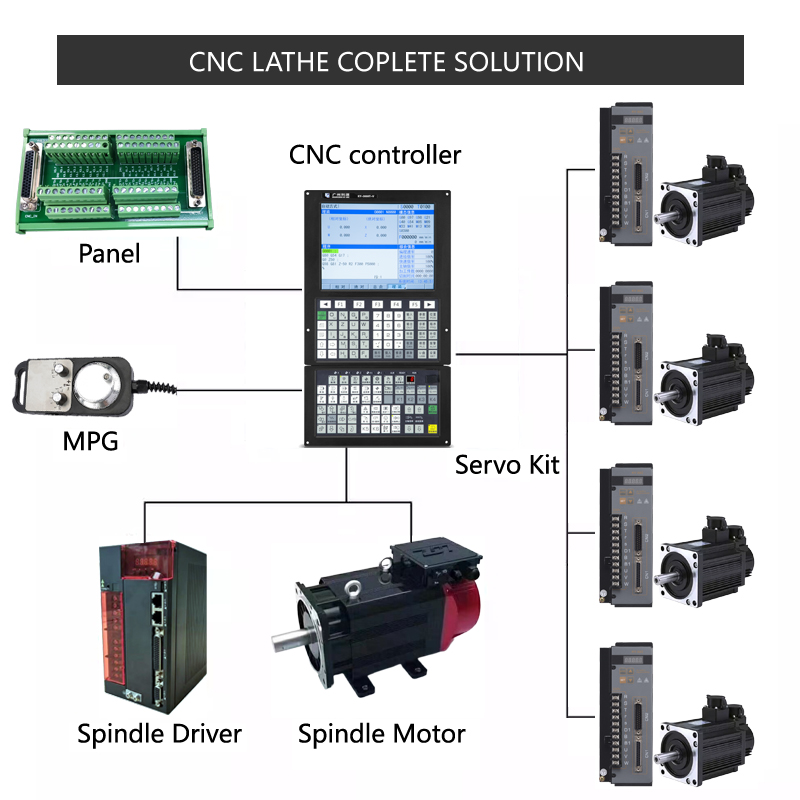

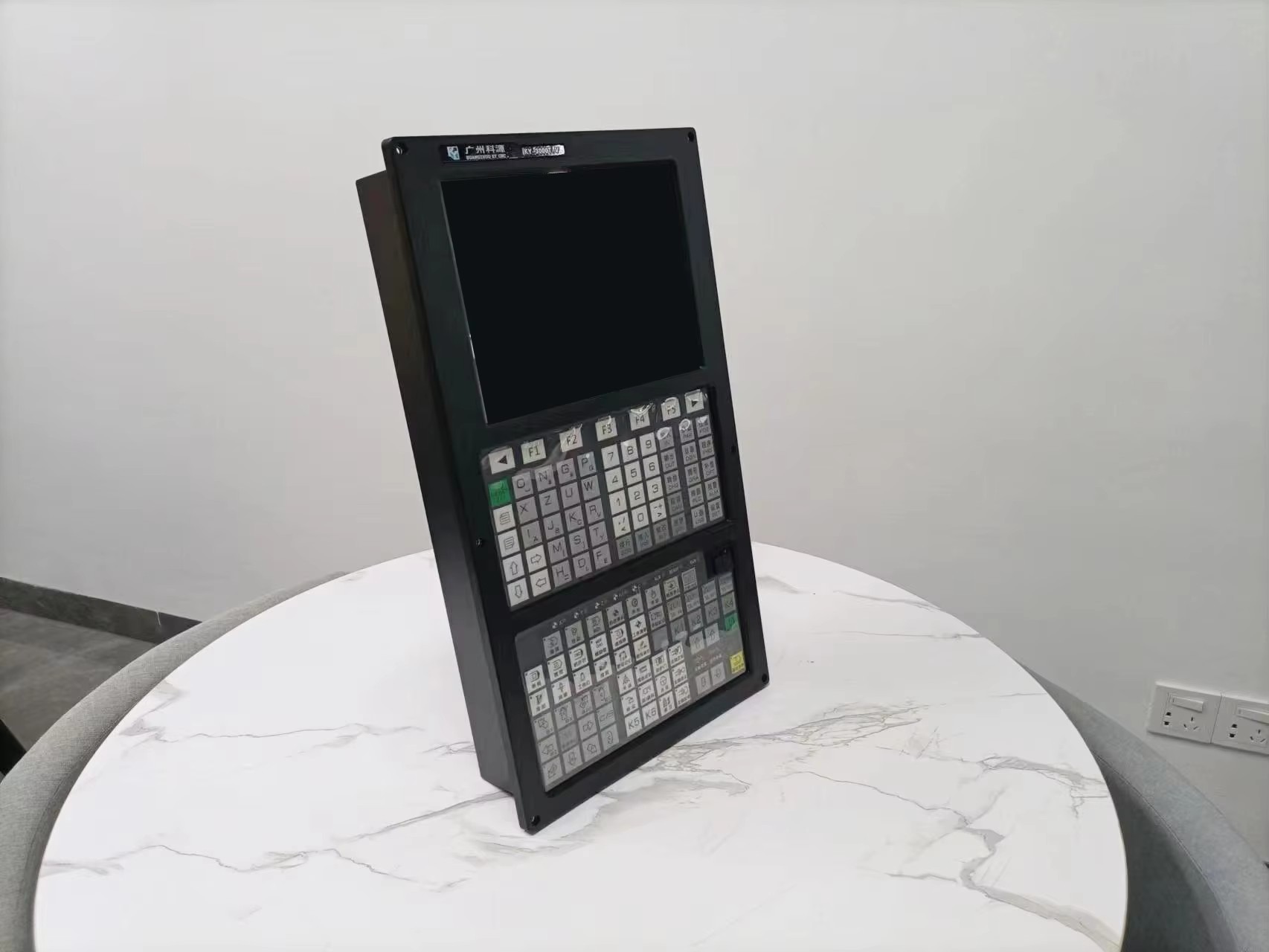

High Stability 5-axis CNC Controller Package Includes Servo Motor and Drive

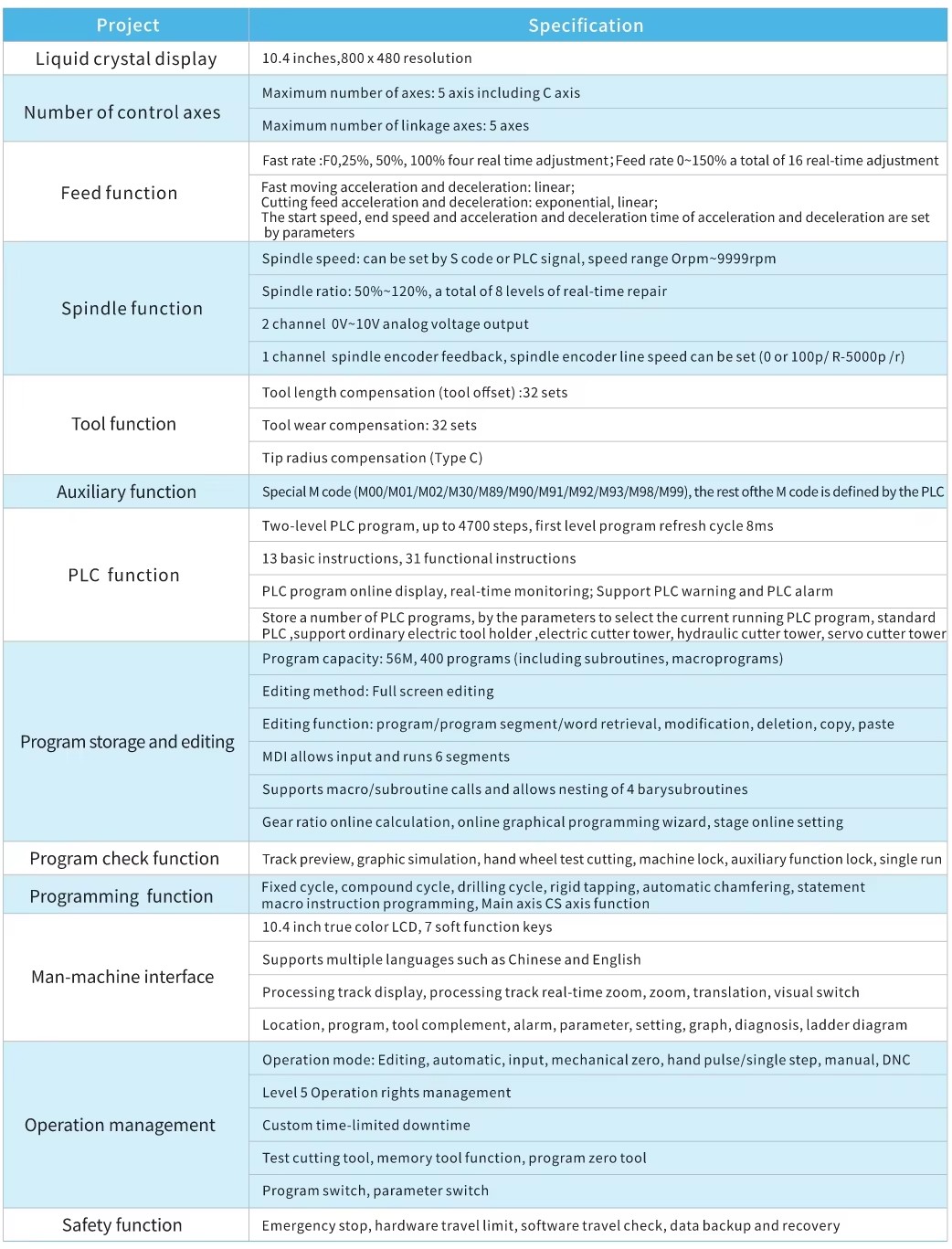

Product characteristics

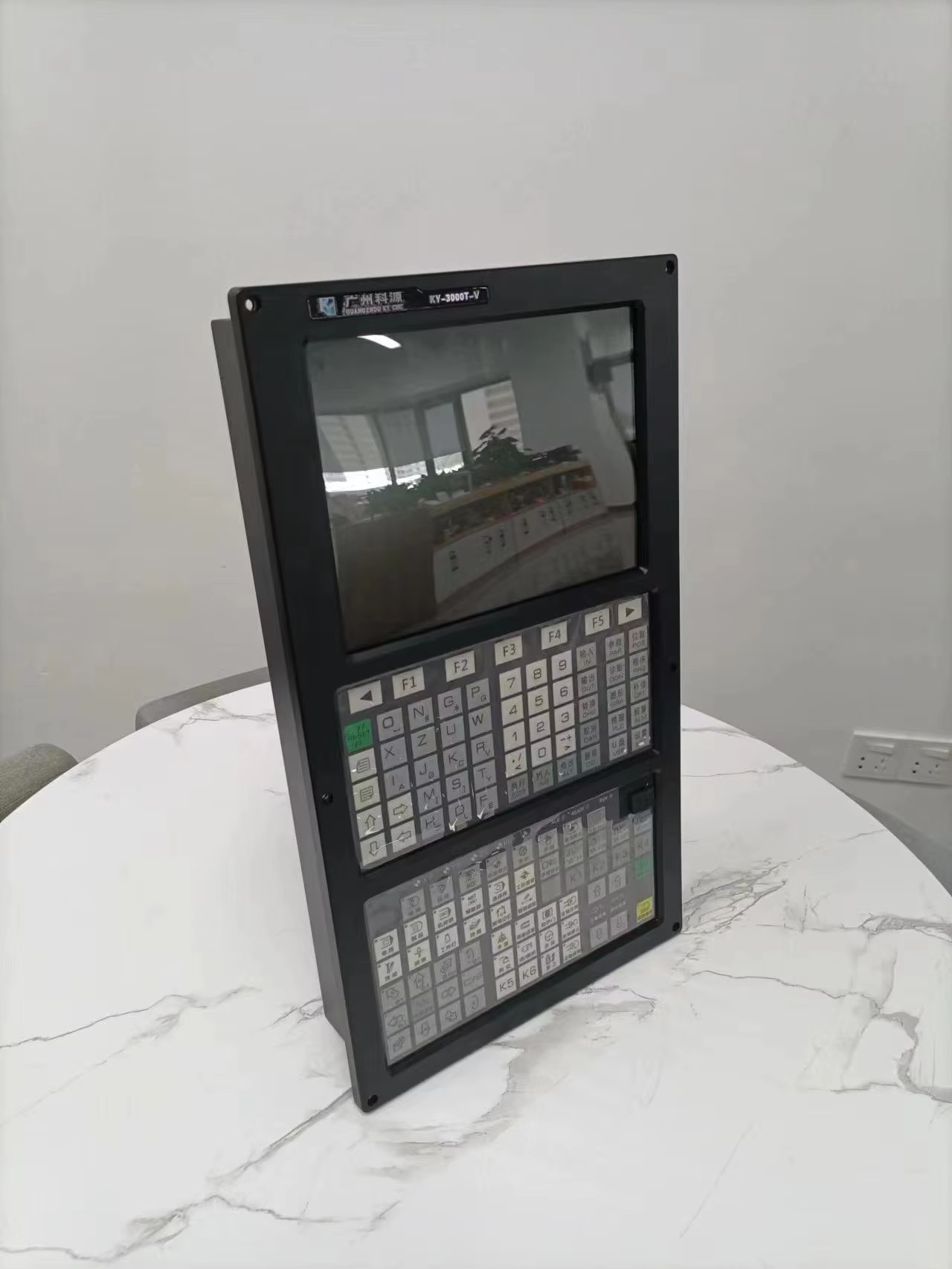

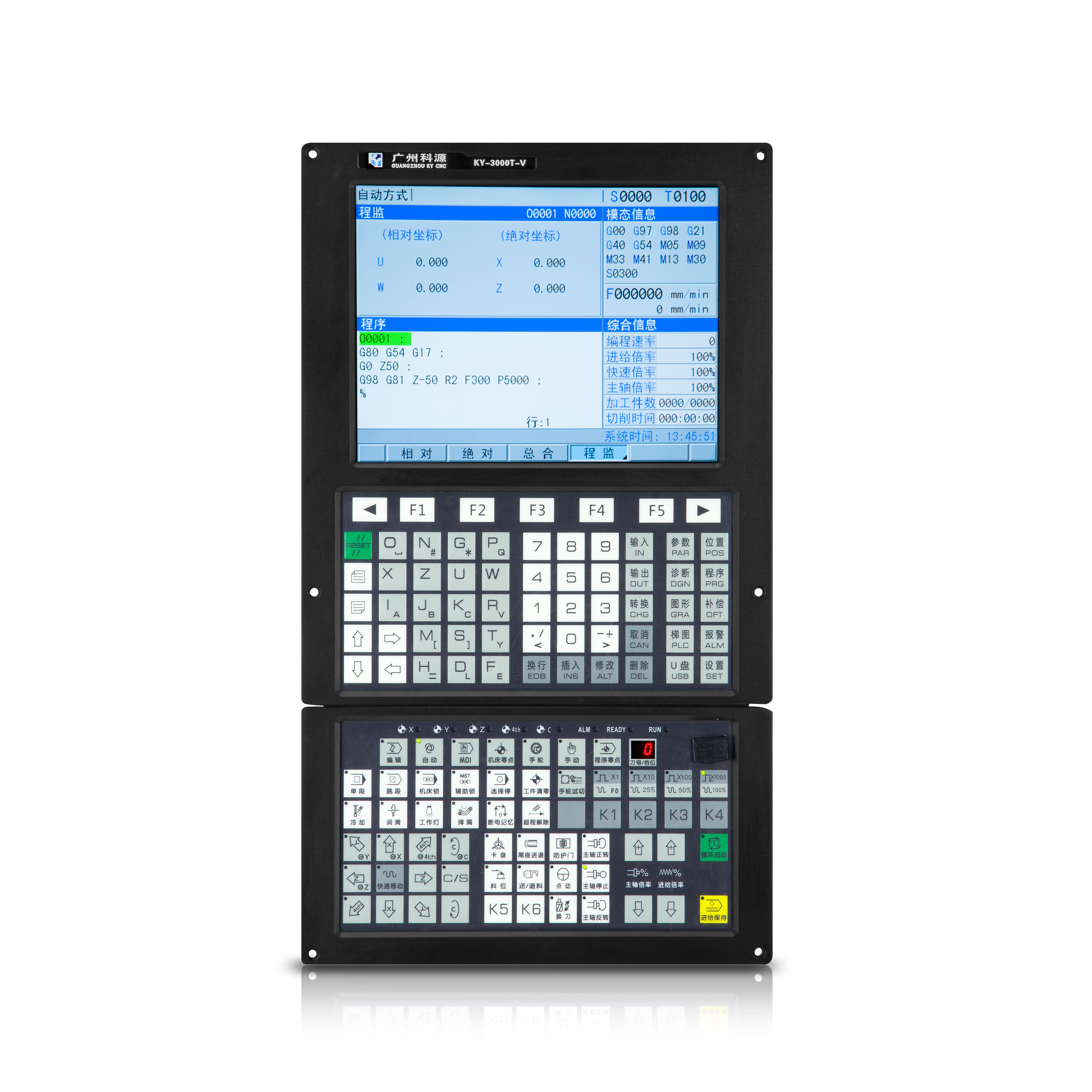

◆ 10.4 inch true color LCD,7 soft function keys

◆ Full-screen editing system, online modification of knife repair, parameters and other operations

◆ Graphics assisted programming

◆ Added tool interface and parameter classification processing

◆ Spindle ratio, feed ratio, fast speed real-time adjustment

◆ Lead screw pitch compensation to maximize machining accuracy

◆ 1ms high-speed interpolation,0.1μm control precision, significantly improve the efficiency, accuracy and surface quality of parts processing

◆ Program preprocessing, can achieve smooth and seamless connection between program segments; Smooth transitions between program segments are optional

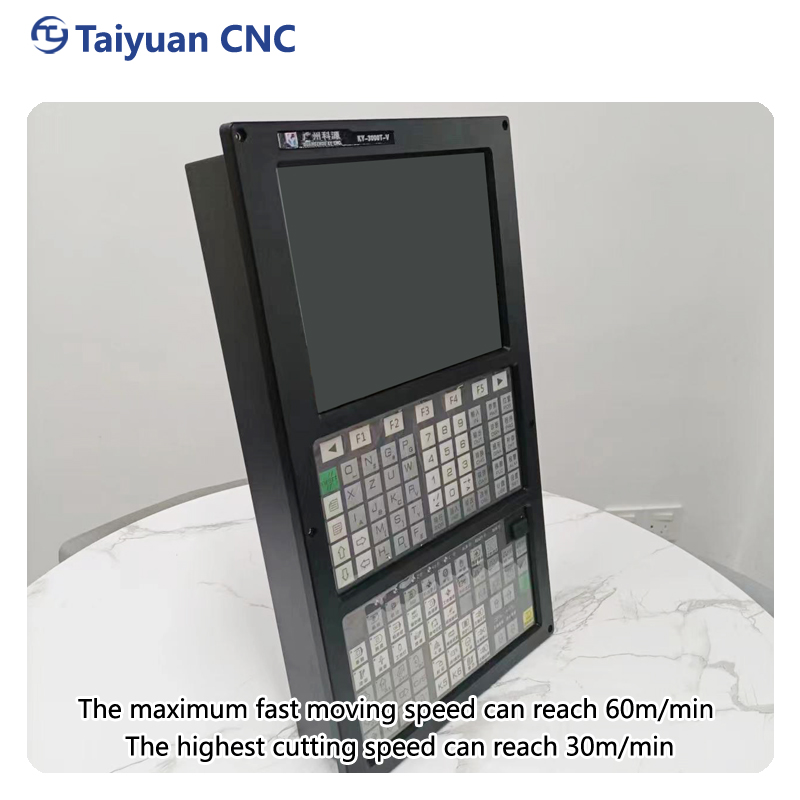

◆ Maximum fast moving speed up to 60m/min

◆ The maximum cutting speed can reach 30m/min

◆ 56M user storage space, can store up to 400 programs

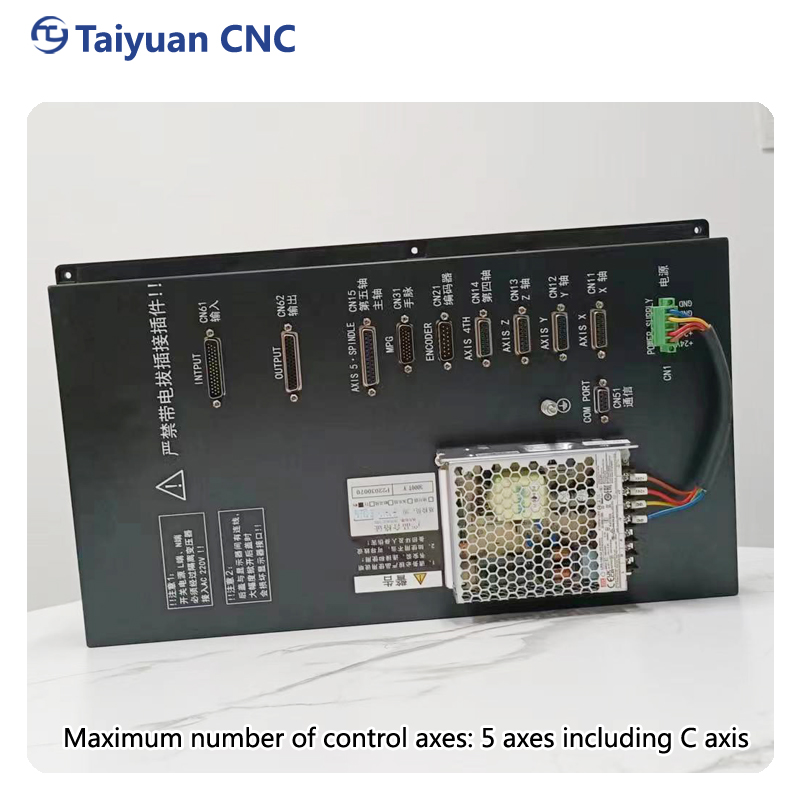

◆ User can define I/O logic control, 32 input /32 output, the input signal can realize high and low level online switching
