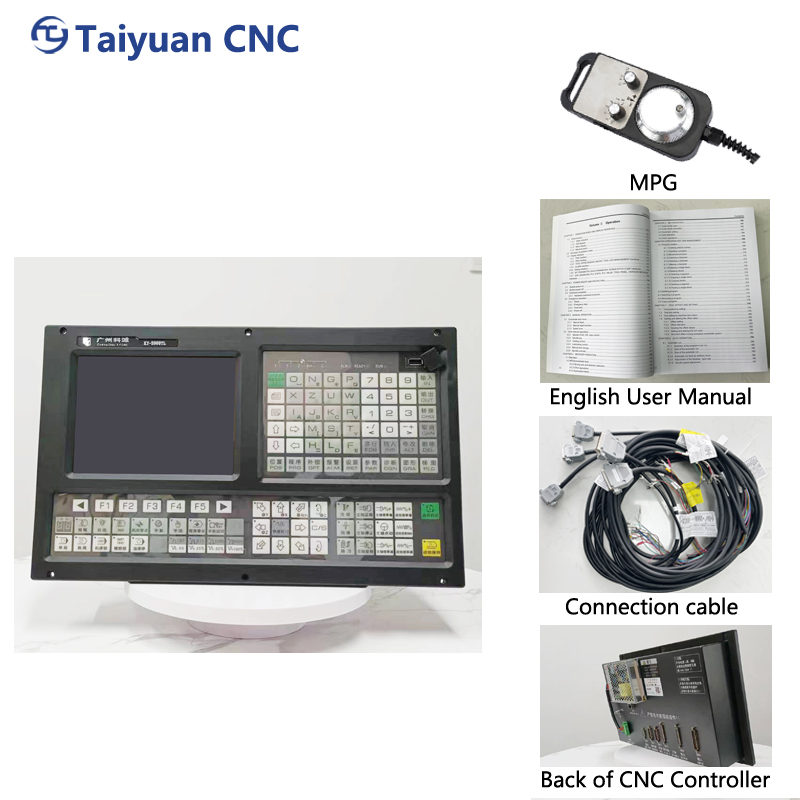

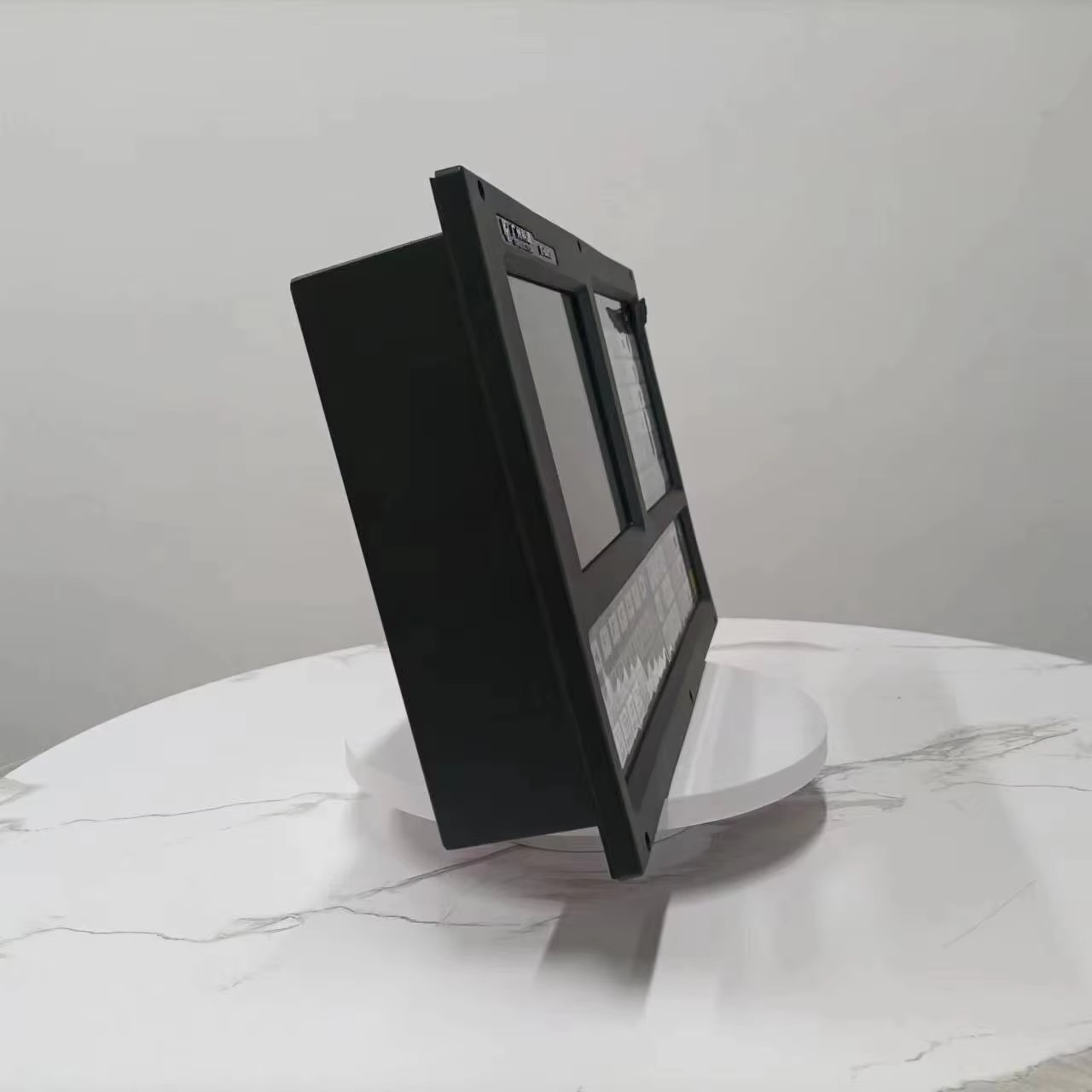

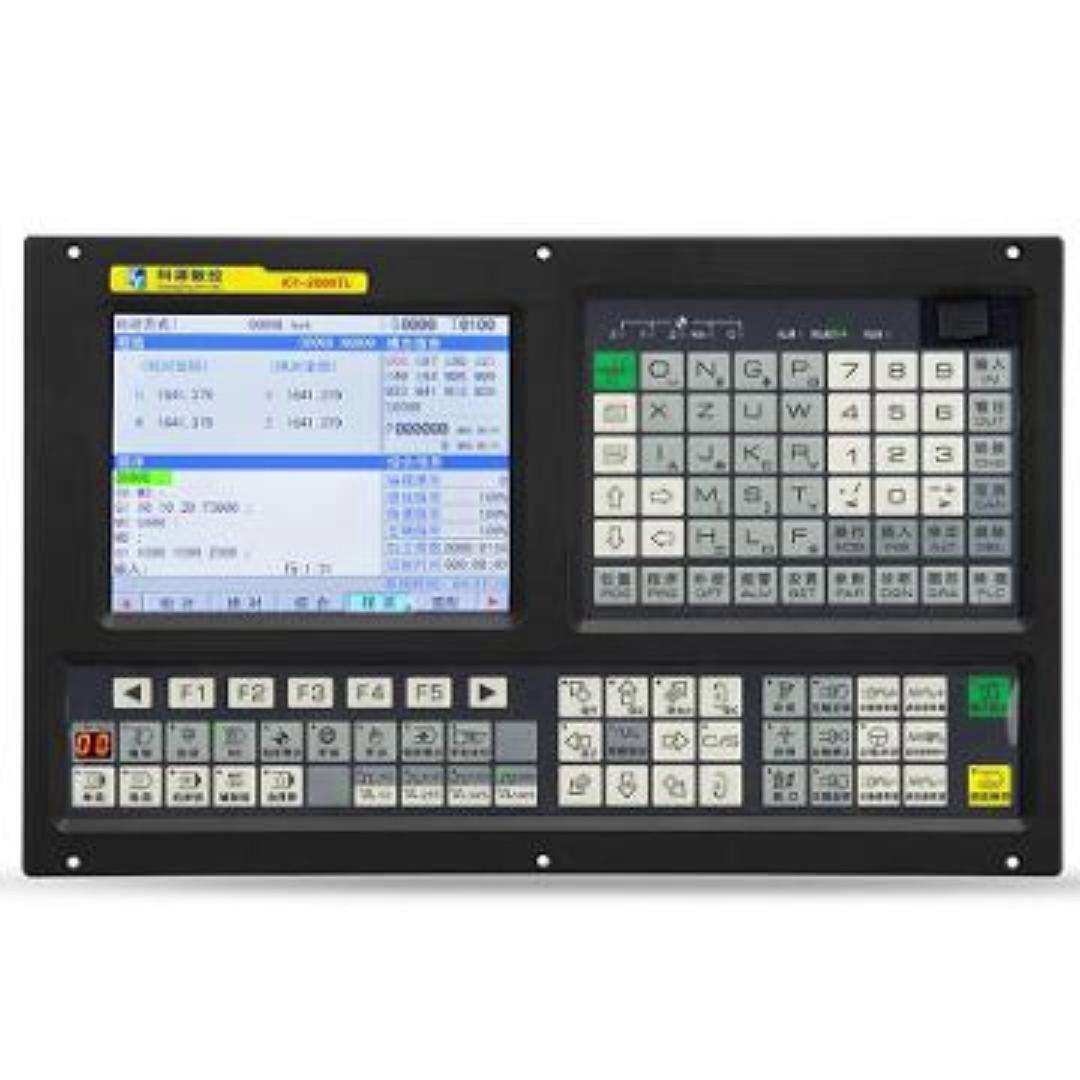

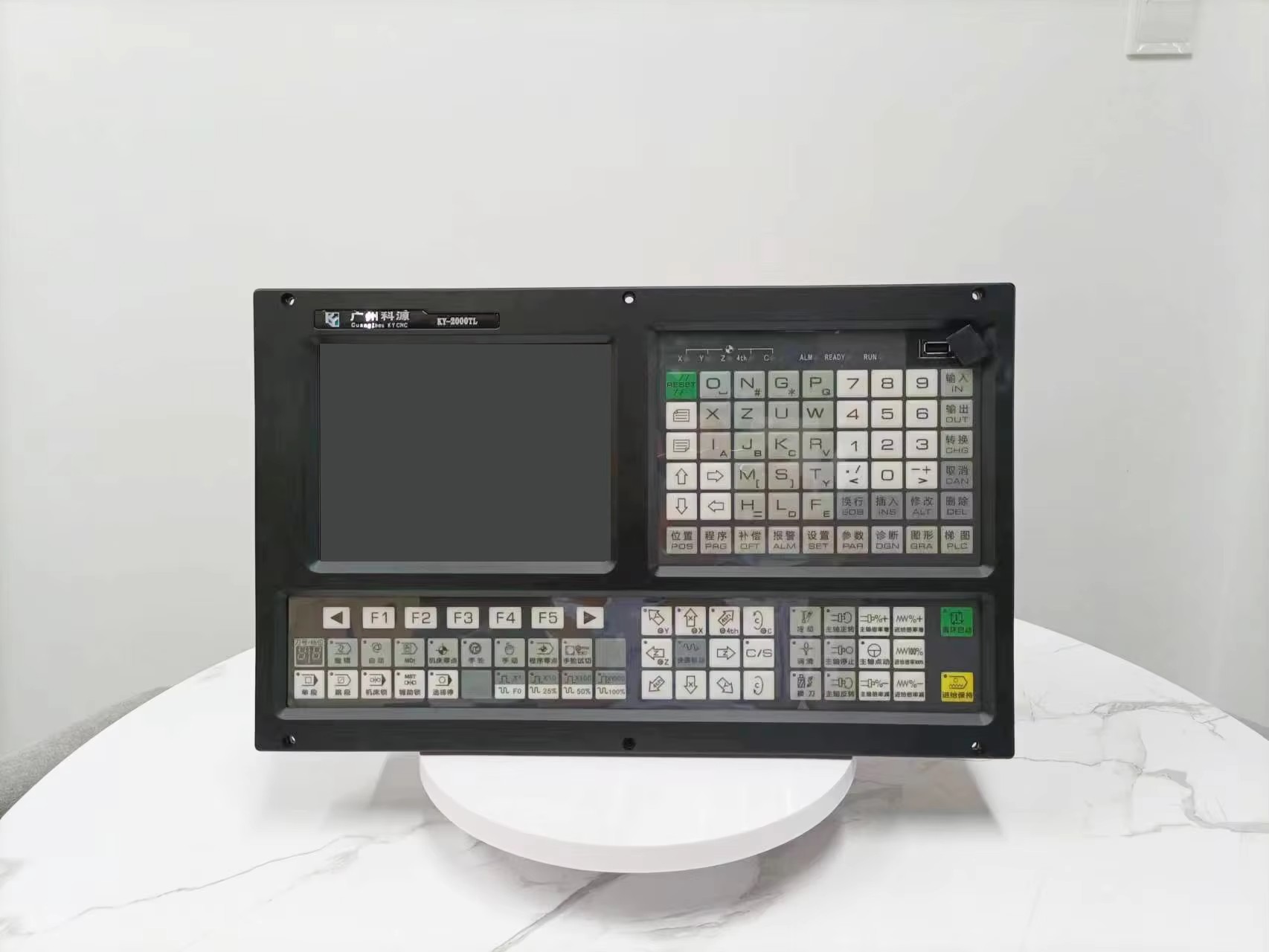

Support Online Plc Programming, Support 2-way Analog Spindle CNC Lathe Controller

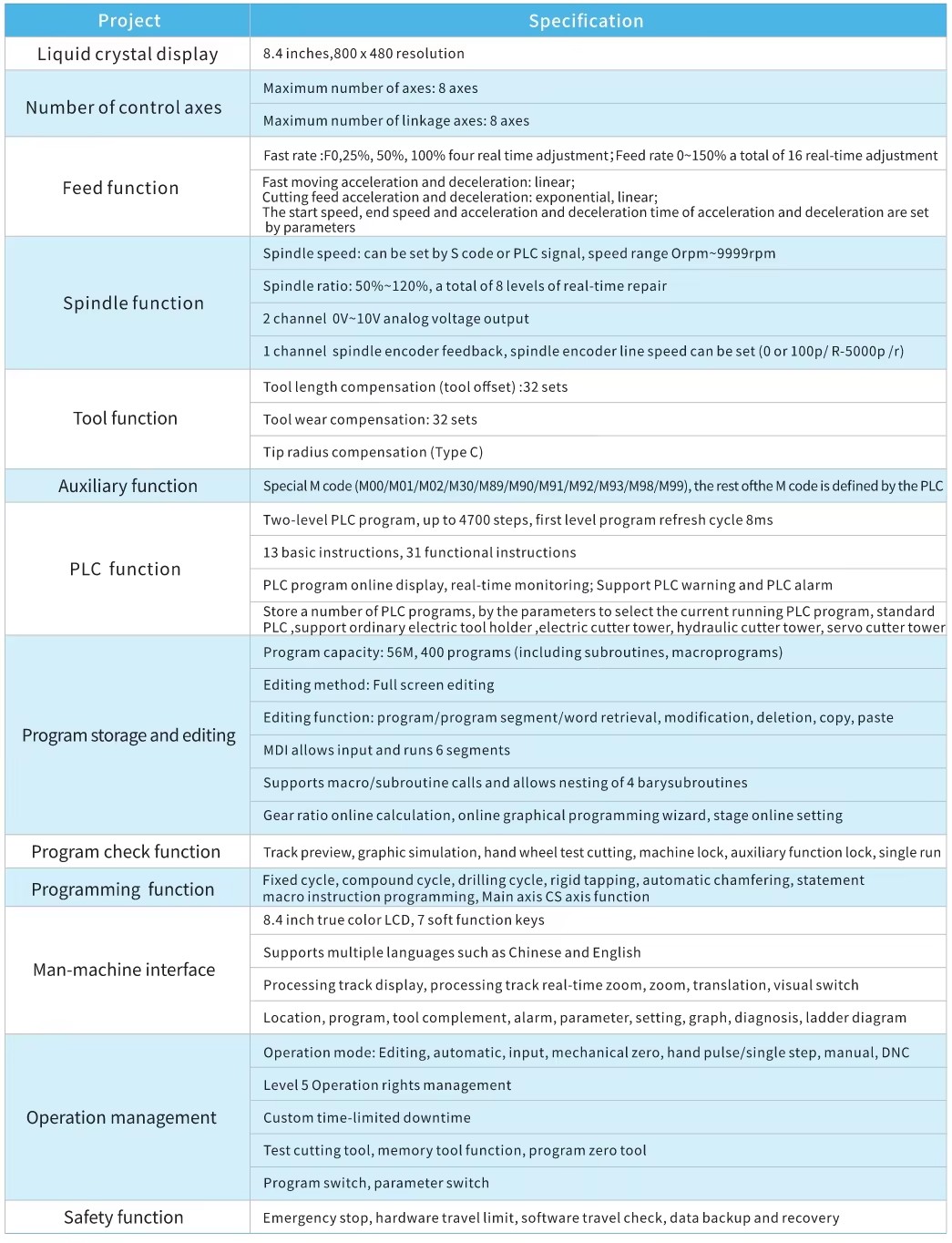

Product Characteristics

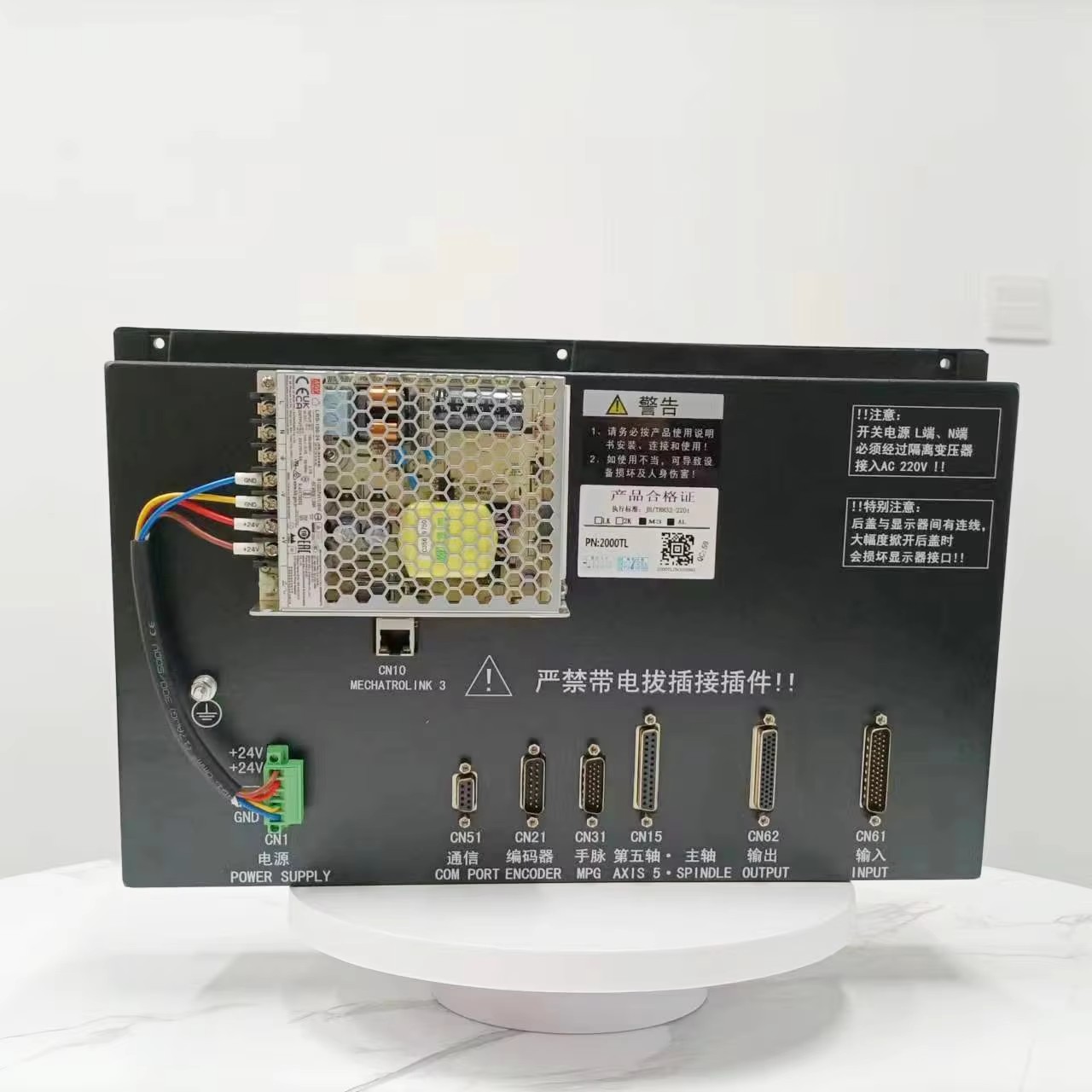

◆ According to Mechatrolink-III communication protocol

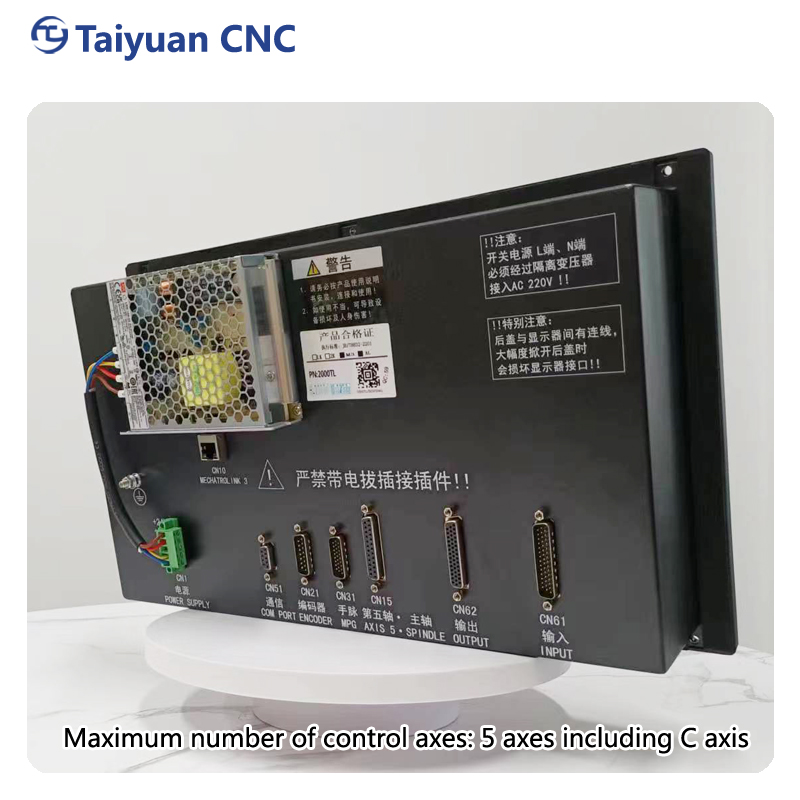

◆ Maximum control 8 axis, control 8 axis linkage

◆ High speed, high performance, strong stability

◆ Simple structure, simple installation

◆ Full-screen editing system, online modification of knife complement, parameters and other operations

◆ Lead screw pitch compensation to maximize machining accuracy

◆ 1ms high-speed interpolation,0.1μm control precision, significantly improve the efficiency, accuracy and surface quality of parts processing

◆ Program preprocessing, can achieve smooth and seamless connection between program segments; Smooth transitions between program segments are optional

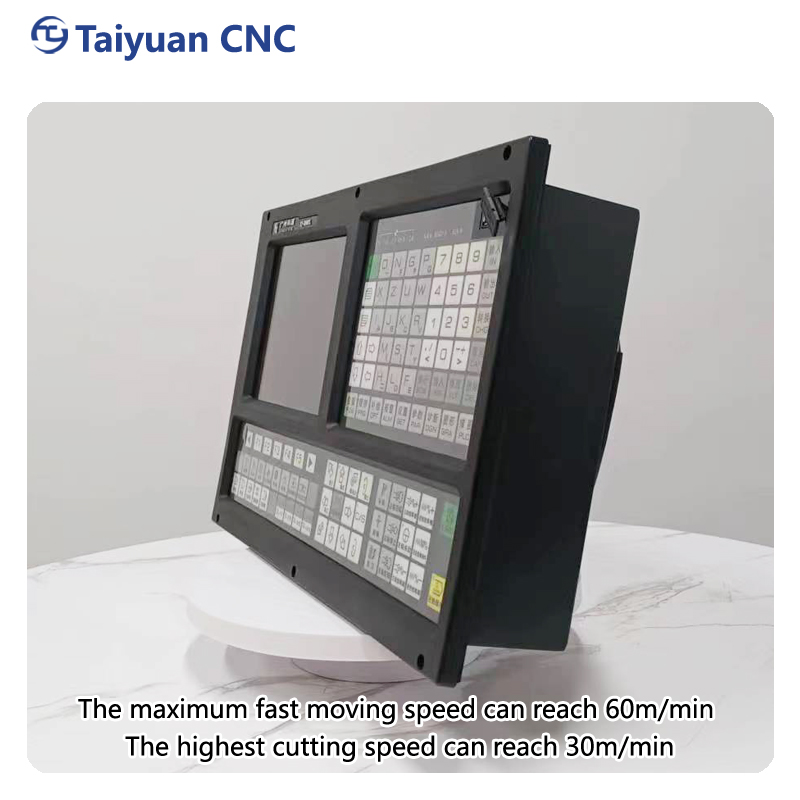

◆ Maximum fast moving speed up to 60m/min

◆ The maximum cutting speed can reach 30m/min

◆ 56M user storage space, can store up to 400 programs

◆ Users can edit I/O logic control, 32 input /32 output
