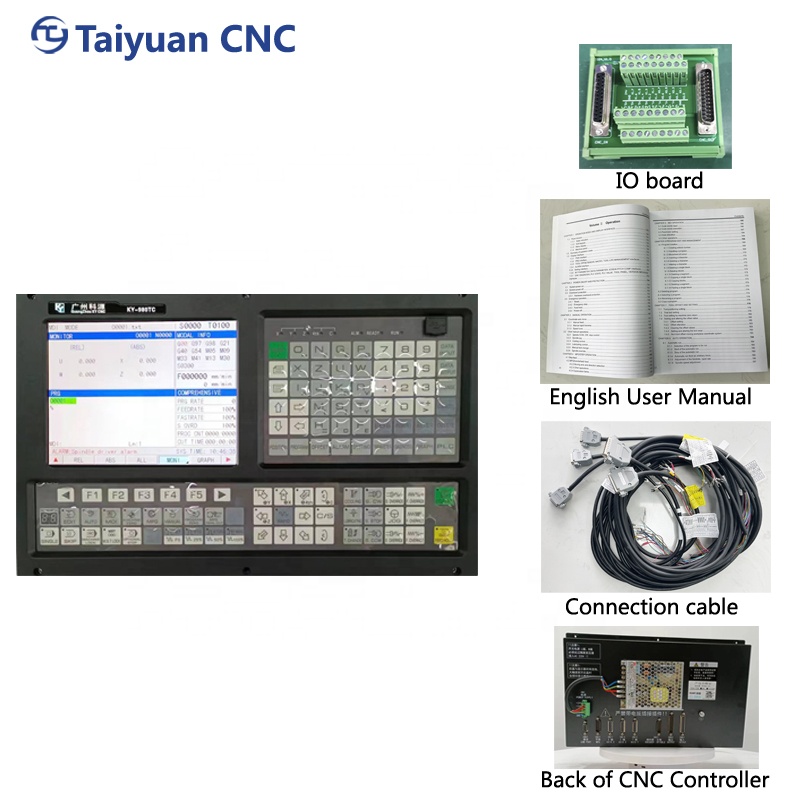

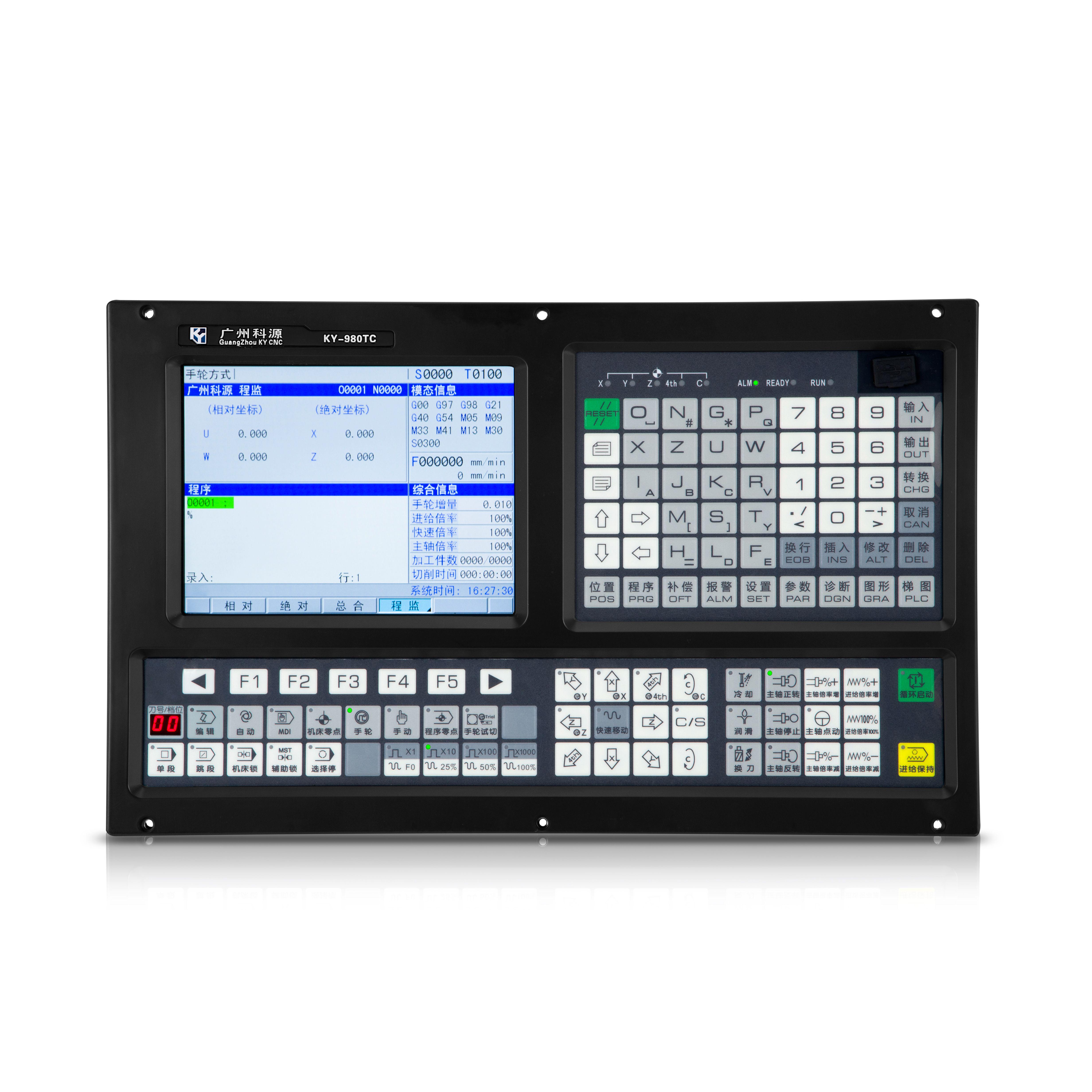

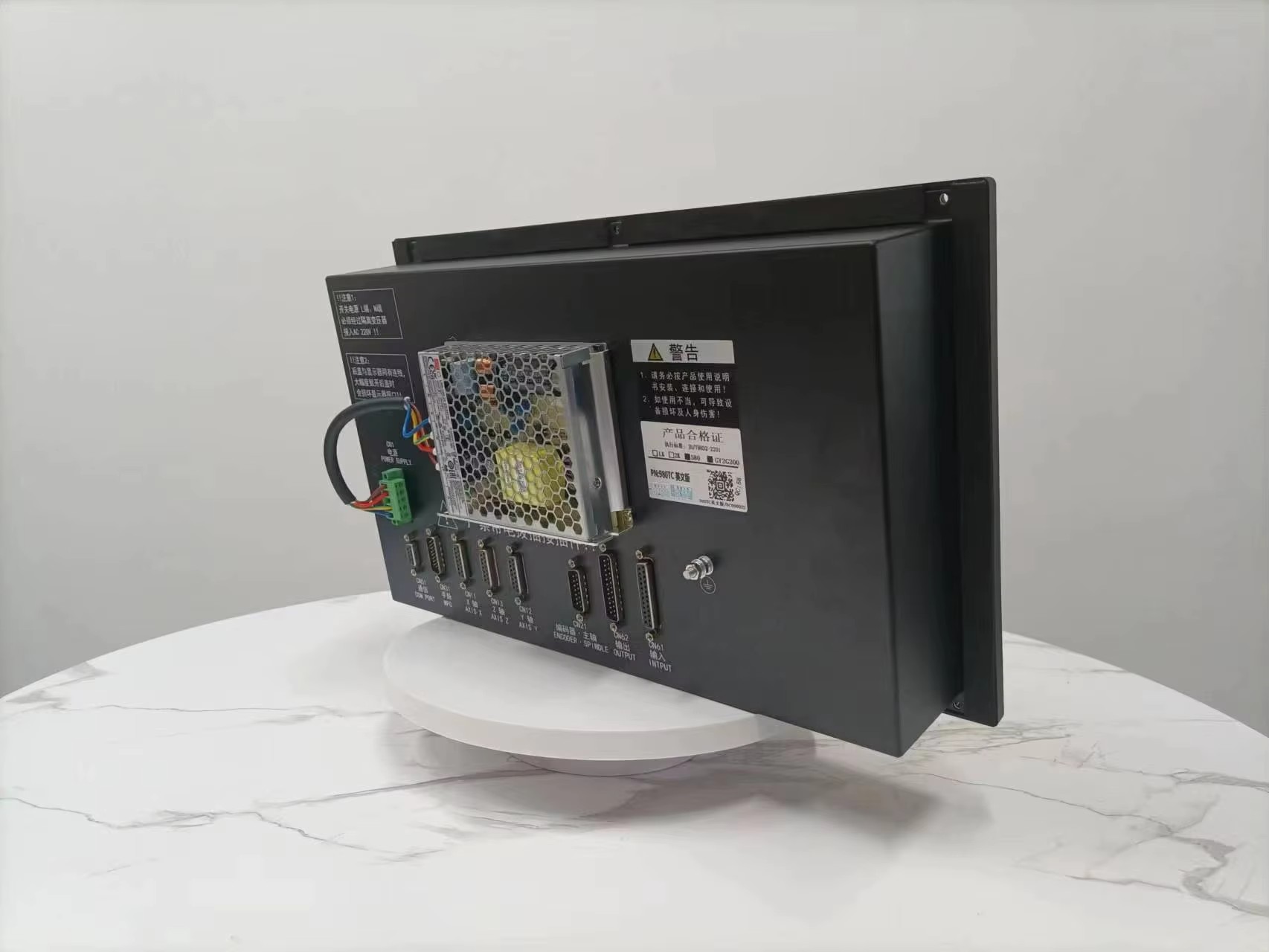

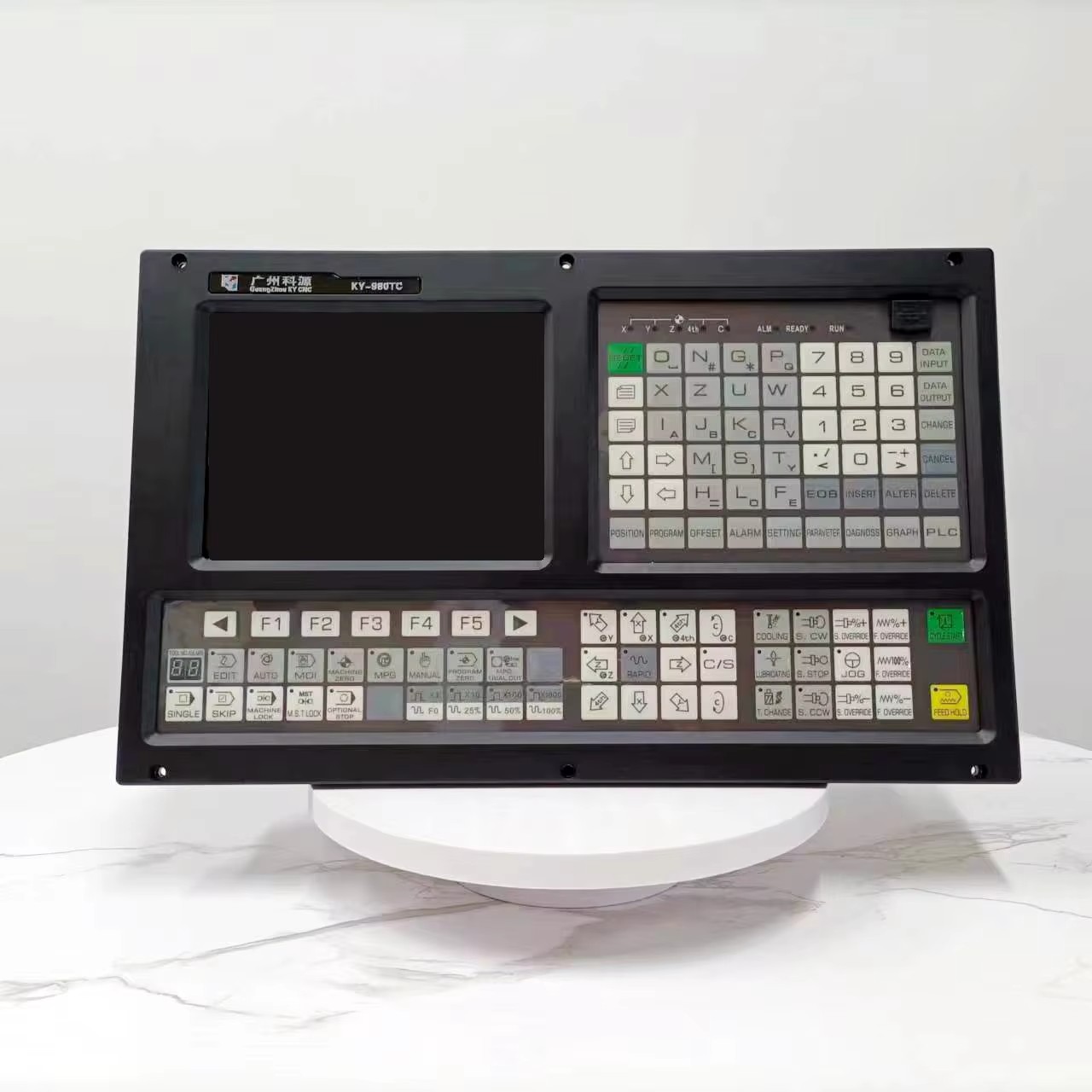

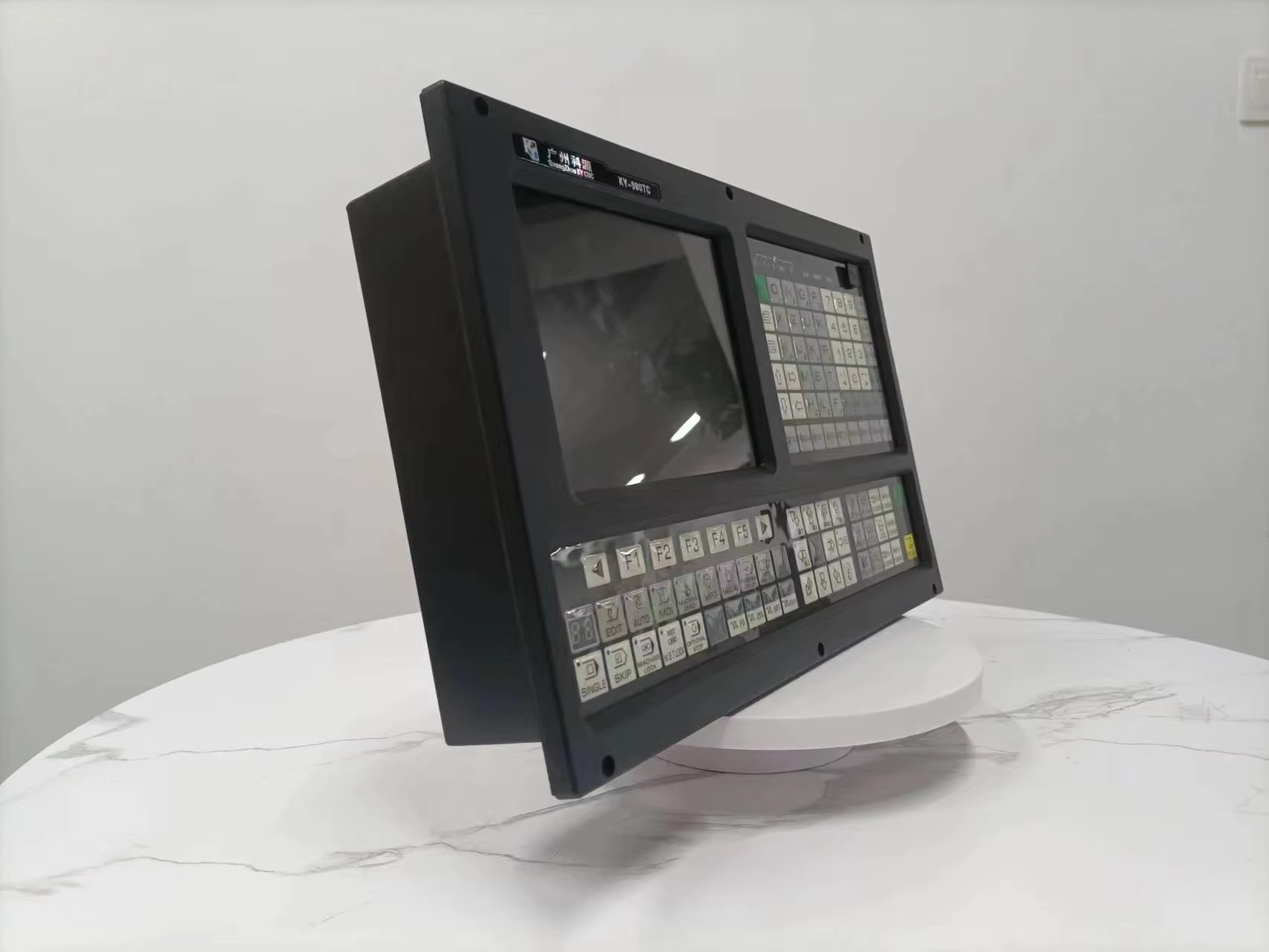

New Panel 3-axis CNC Controller with ATC PLC Motion Control Panel Encoder

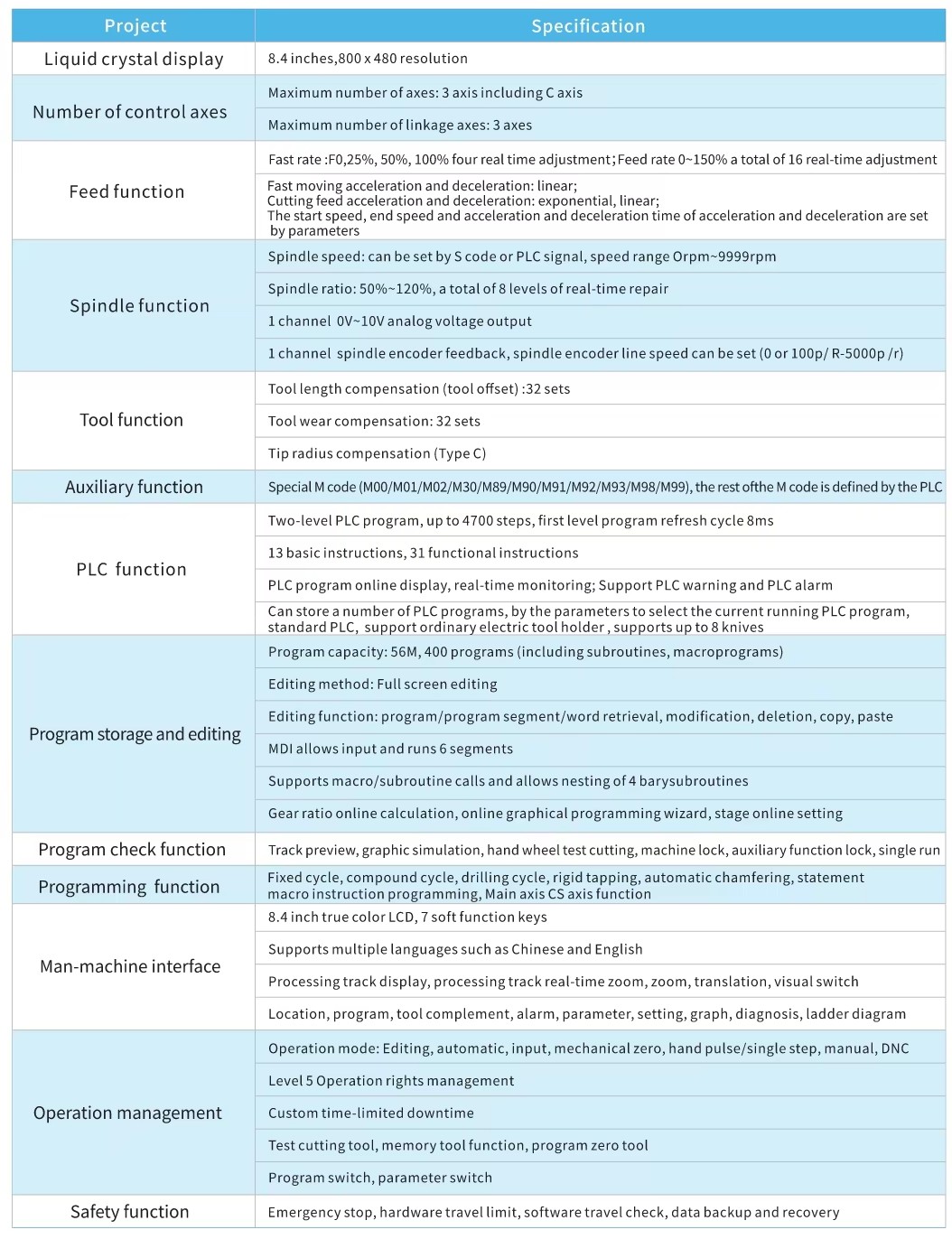

Product Characteristics

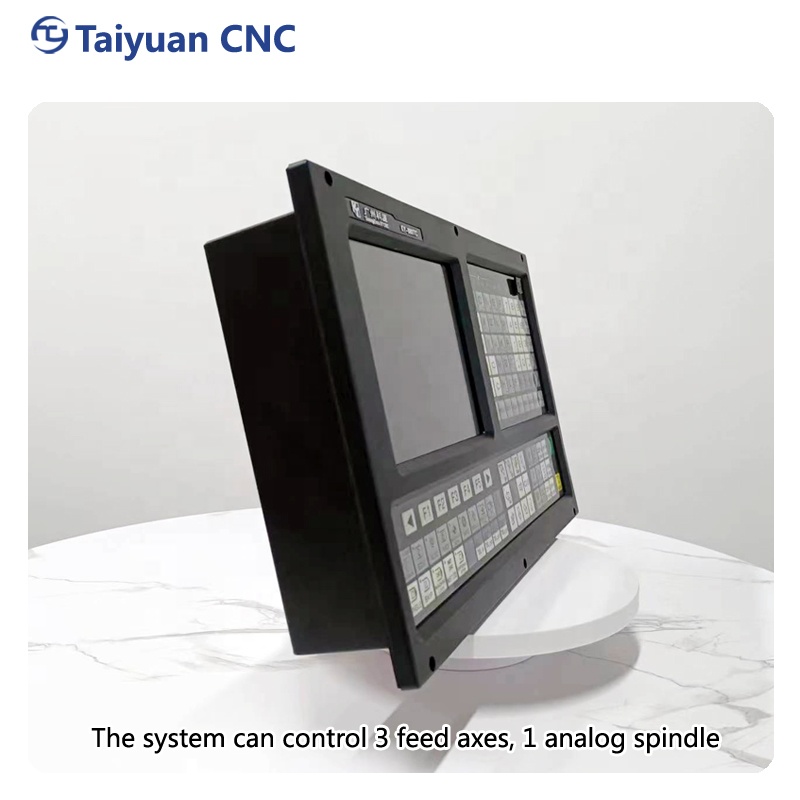

◆   Number of control shafts: 3 feed shafts

◆   1 way 0V-10V simulation spindle

◆   The number of linkage axes: linear 3 axes, arc 3 axes

◆ 8.4-inch windscreen LCD, 800x600 resolution, 7 soft function keys

◆   Fast magnification F0, 25%, 50%, 100% a total of four real-time adjustment

◆   Spindle magnification 50%~120%, a total of 8 levels of real-time repair

◆   Lead screw pitch compensation to maximize machining accuracy

◆   PLC program online display, real-time monitoring, support PLC warning and PLC alarm

◆   Program preprocessing, can achieve smooth and seamless connection between program segments; Smooth transitions between program segments are optional

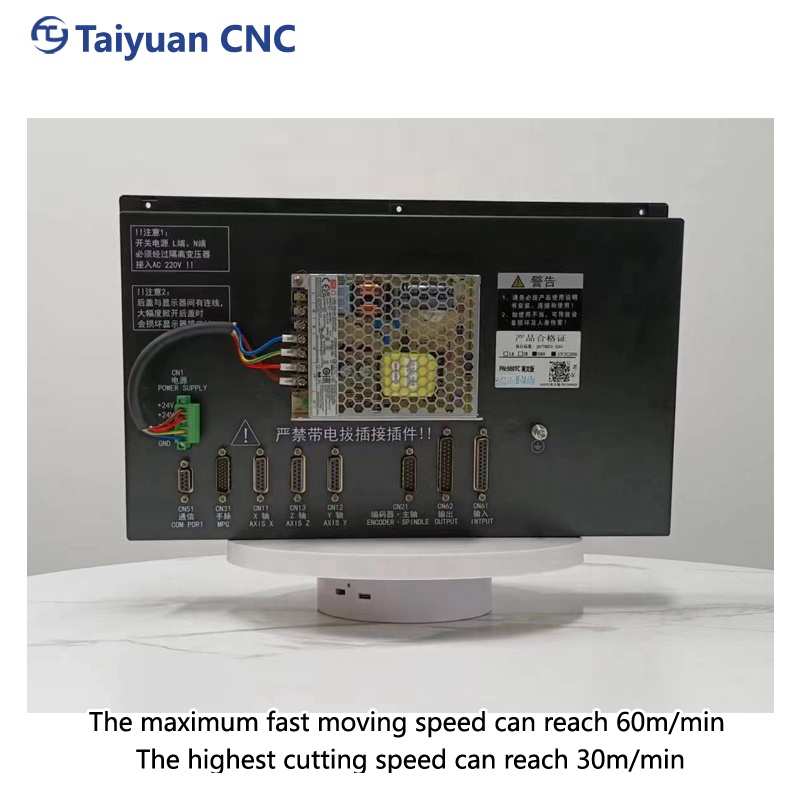

◆   The maximum fast moving speed can reach 60m/min

◆   The highest cutting speed can reach 30m/min

◆   56M user storage space, can store 400 programs

◆   Any program segment start processing, any tool number start processing

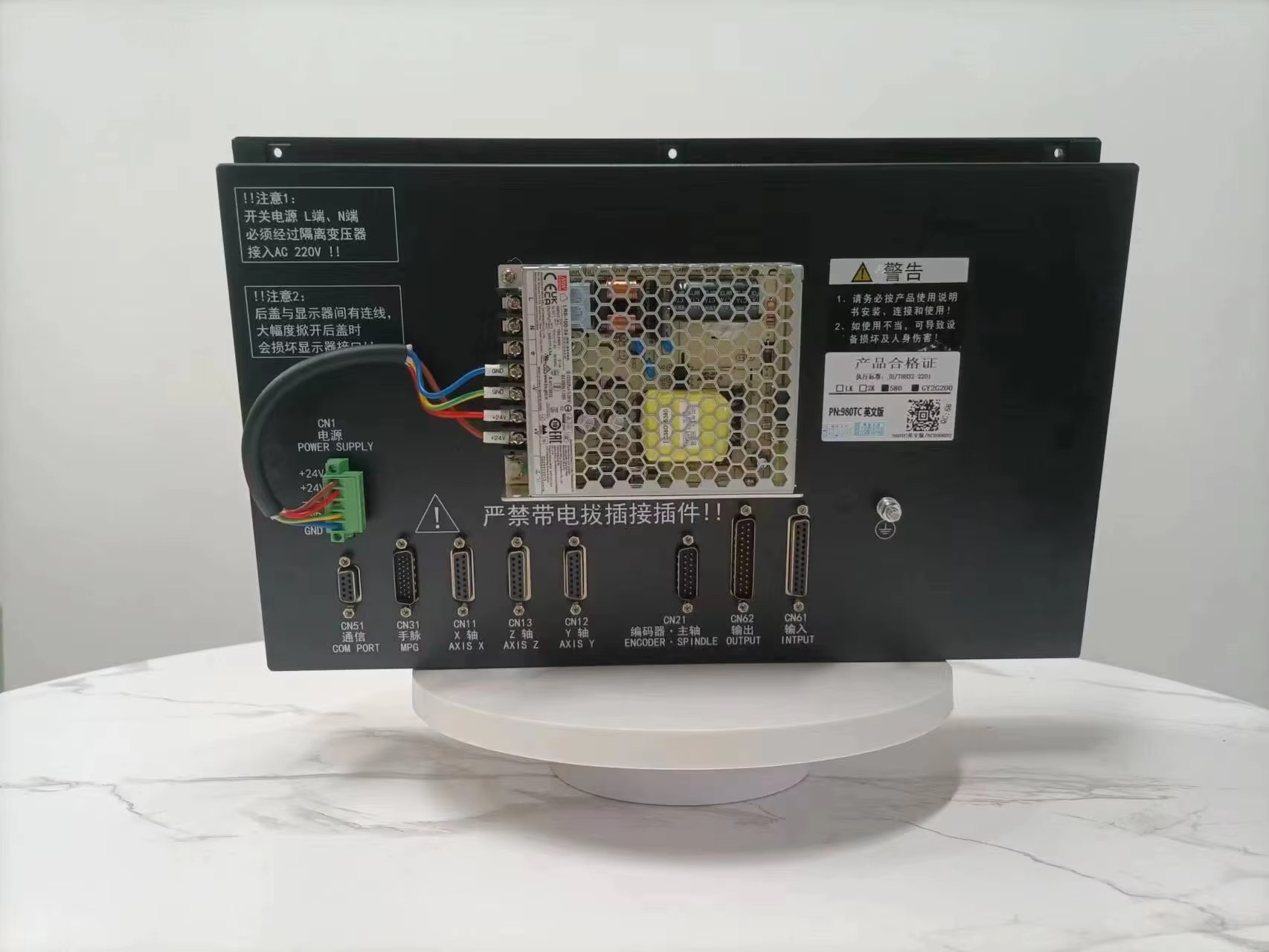

◆   Users can edit their own I/O logic control, 16 input /16 output
