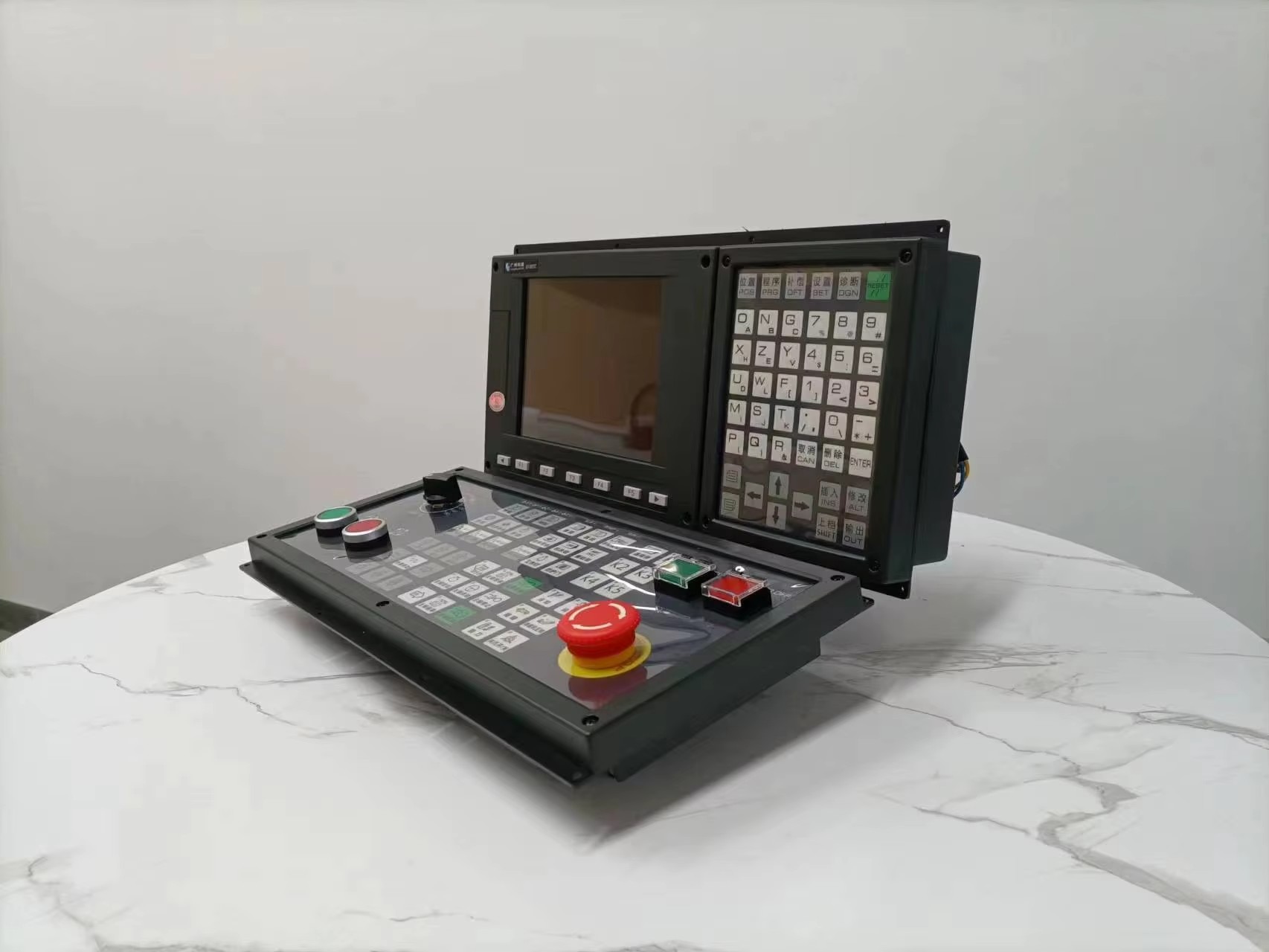

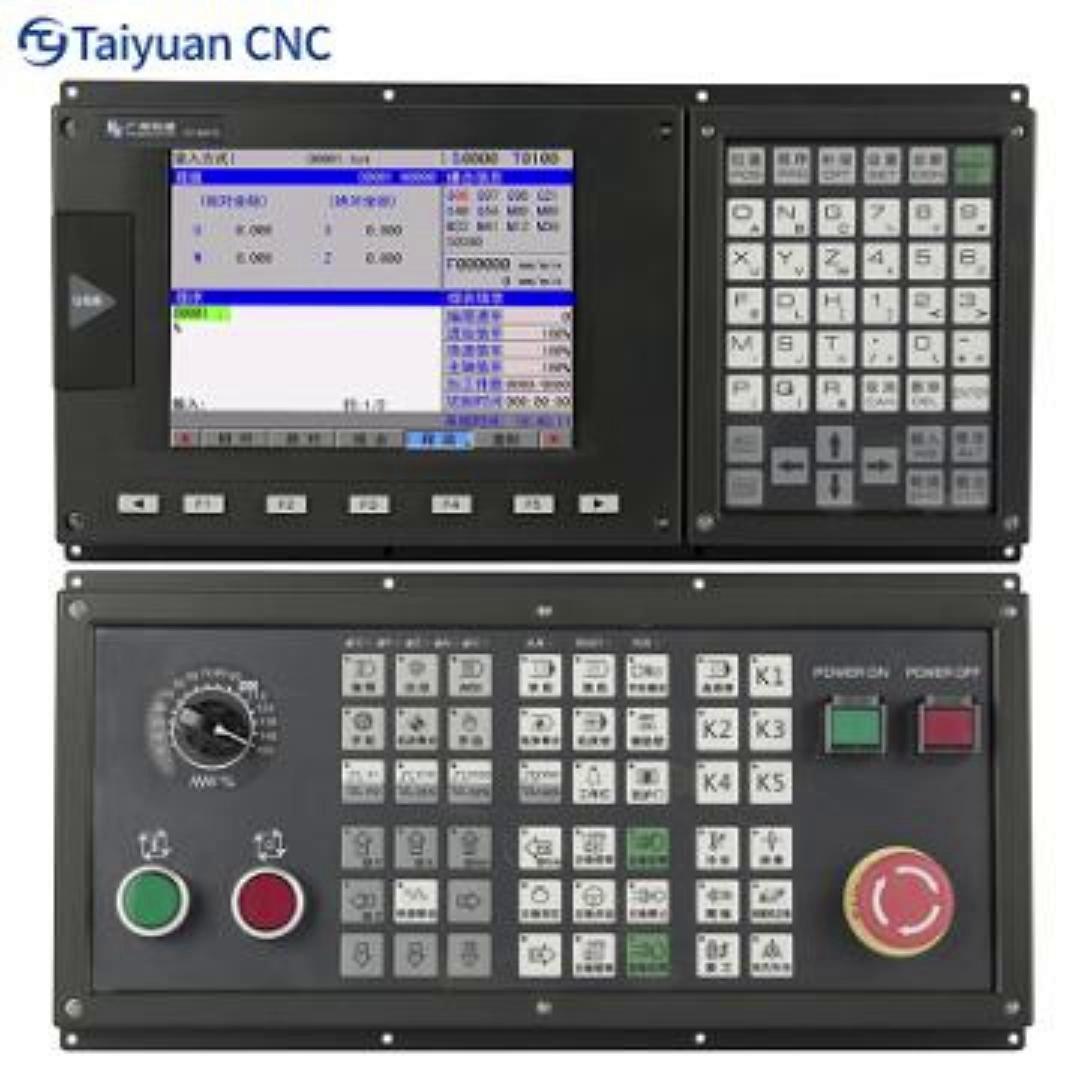

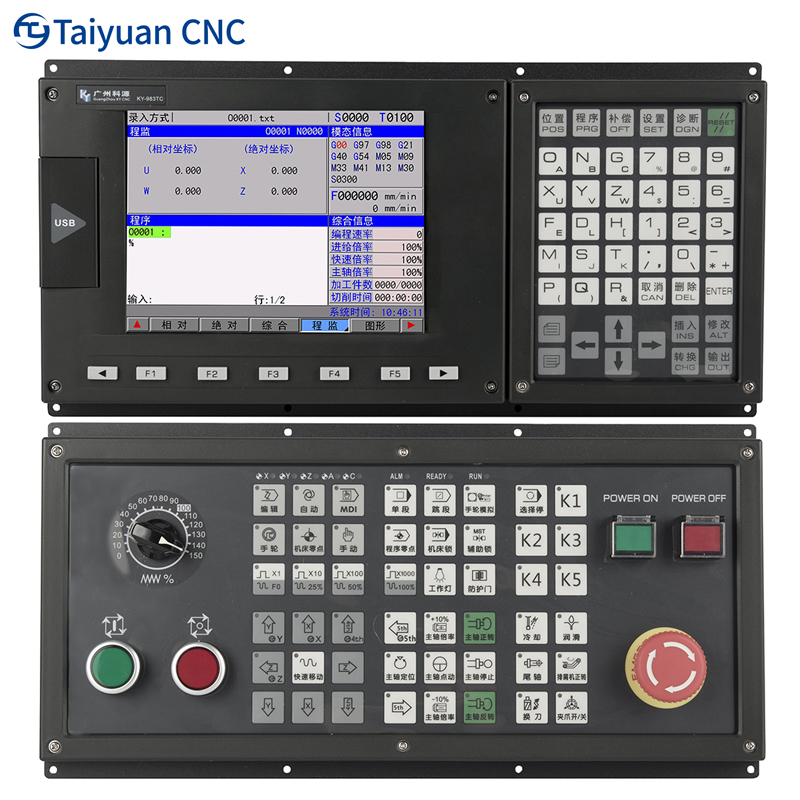

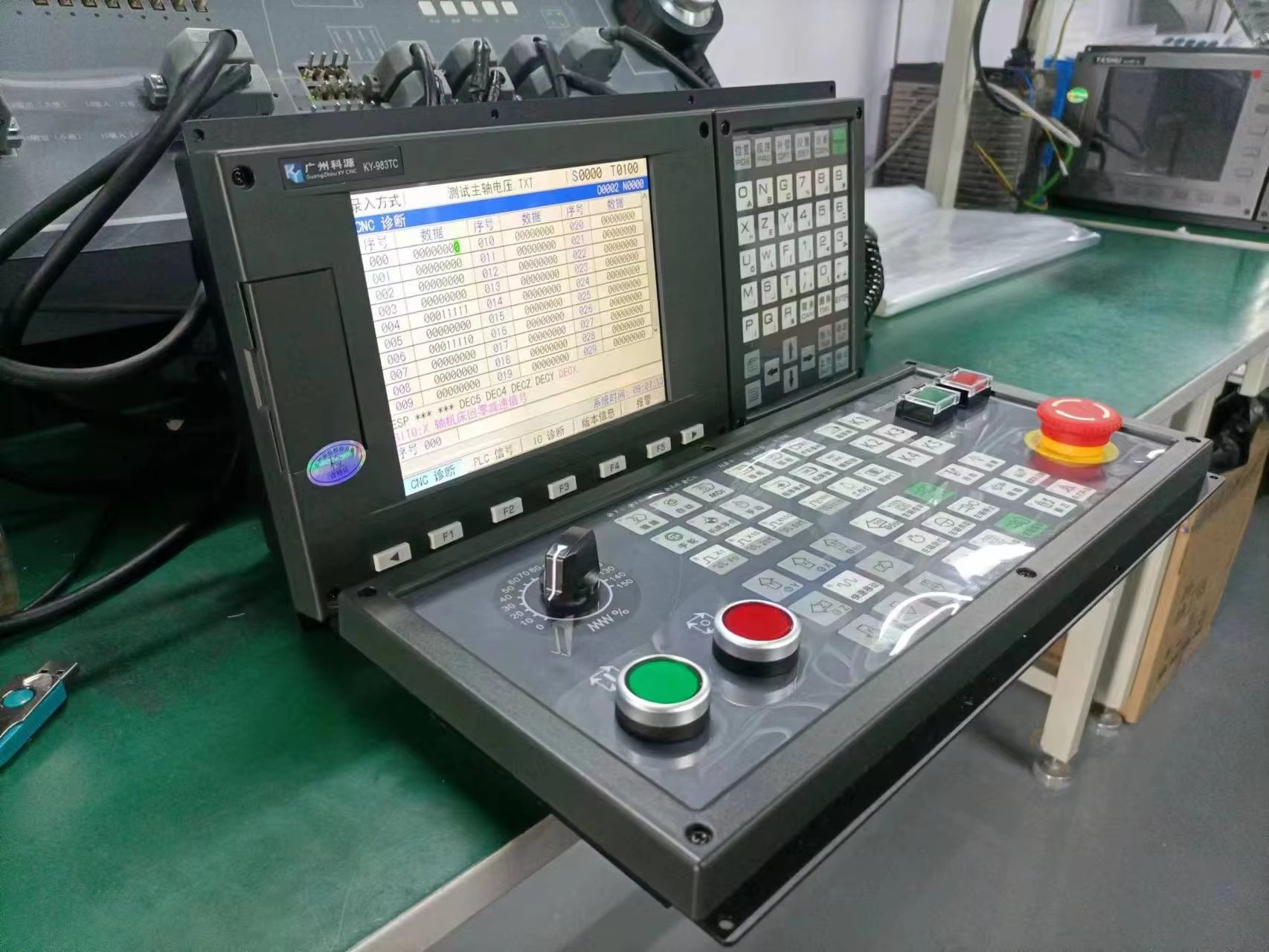

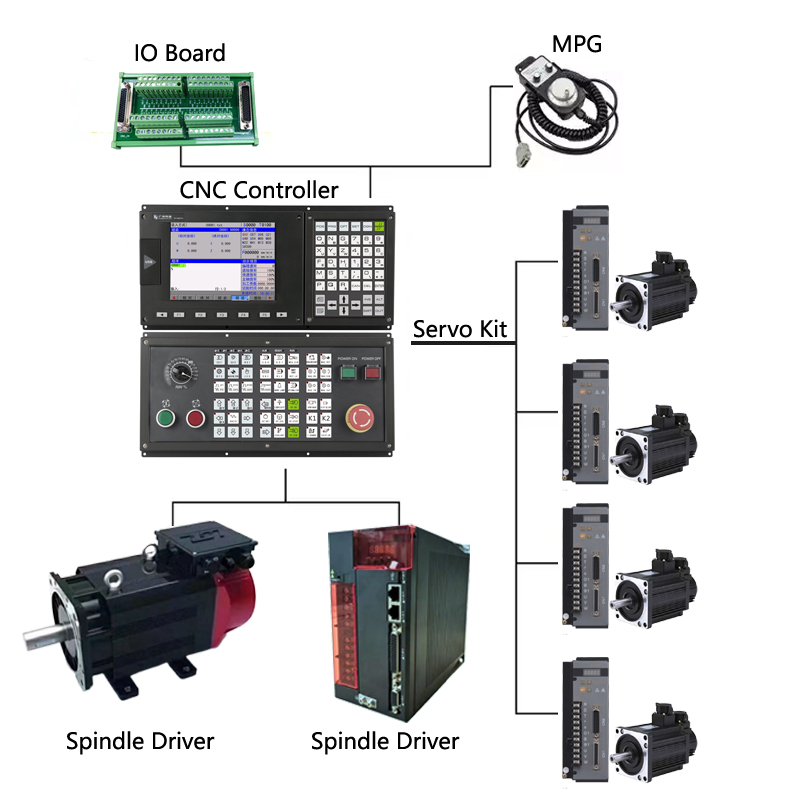

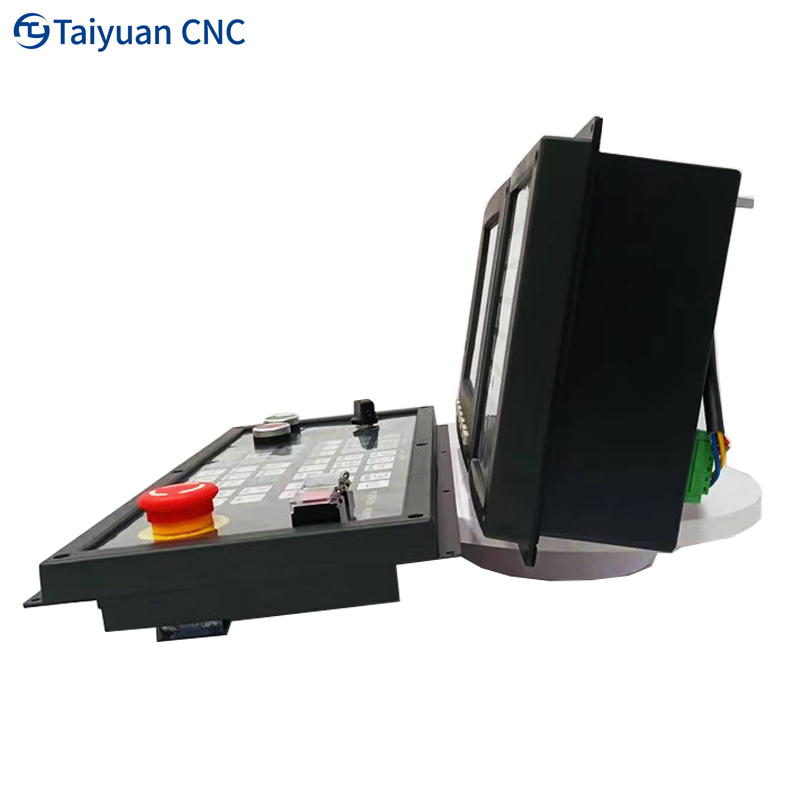

Advanced Auto Tool Exchange 4 Axis CNC Controller for Precision Turning Lathe Machine

3-5 axes full English CNC turning controller

800x600, 8-inch true color LCD display

electric tool rest, 4-16 station tool rest, AK31 tool tower, servo tool tower, Sixxin hydraulic tool tower

ATC, macro function, PLC function

supports analog and pulse control, pulse control: 1MHz, lμm pulse, 5V signal

spindle positioning, rigid tapping, spindle tapping

high anti-interference, 220VAC >24VDC&5V

128MB memory, 100Mb user storage space

USB, upgrade, copy

2-channel 0~10V analog voltage output, 1-channel spindle encoder feedback

None

32 input /32 output, PLC online display, monitoring and design

"Tool length compensation (tool offset) : 32 sets of tool tip radius compensation (Type C)"

linear 5-axis linkage, arc 3-axis linkage

Chinese and English menu, program and interface, full-screen version

Support macro A program/macro B program writing

lead screw compensation, reverse gap compensation

The system adopts Modbus485 protocol

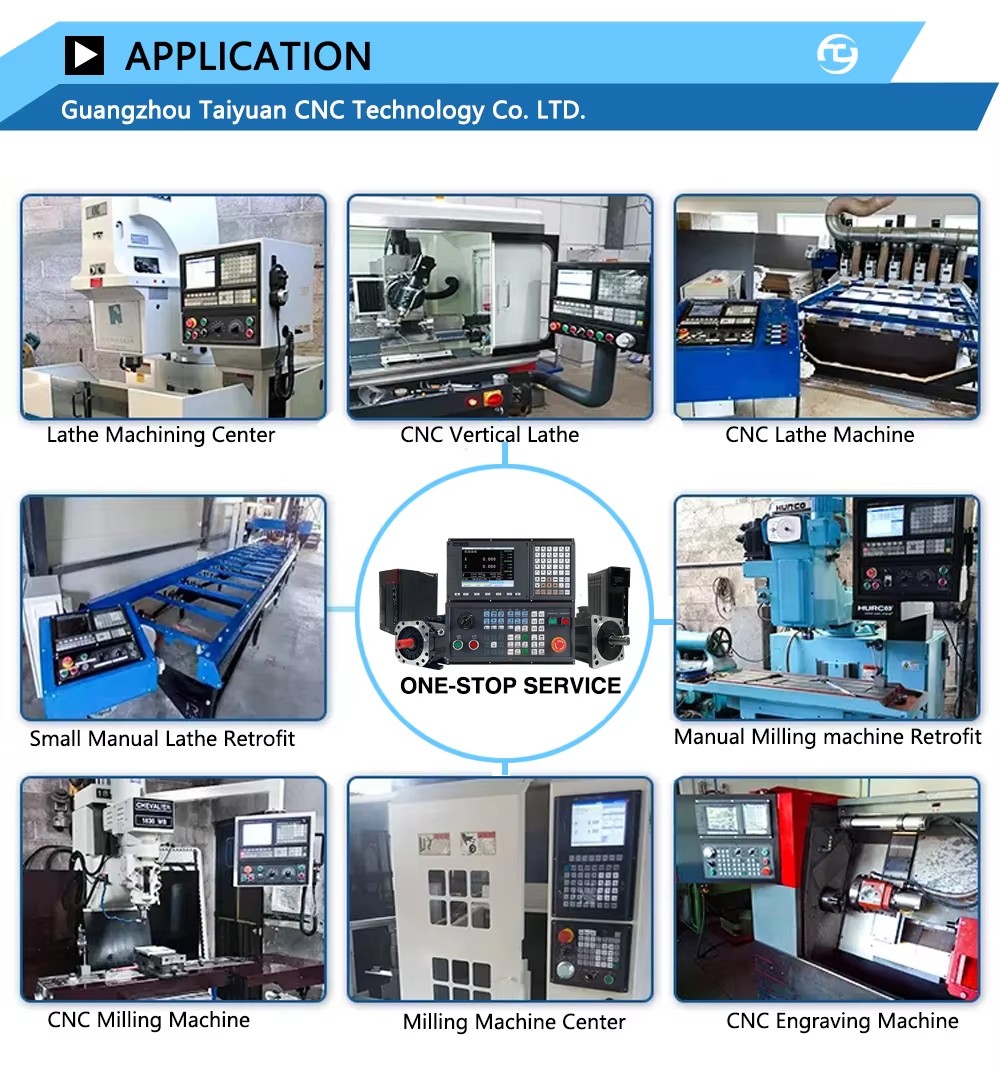

CNC lathes, lathes and special automation equipment

Supports G71 arc cutting rough machining and chip breaking functions, supports processing trajectory preview and mirror displ
