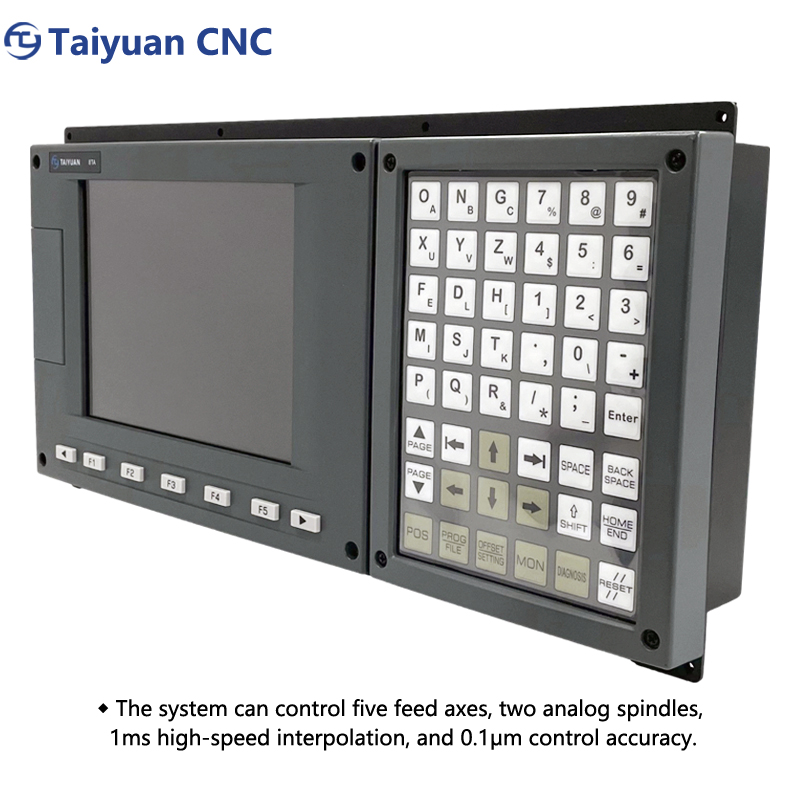

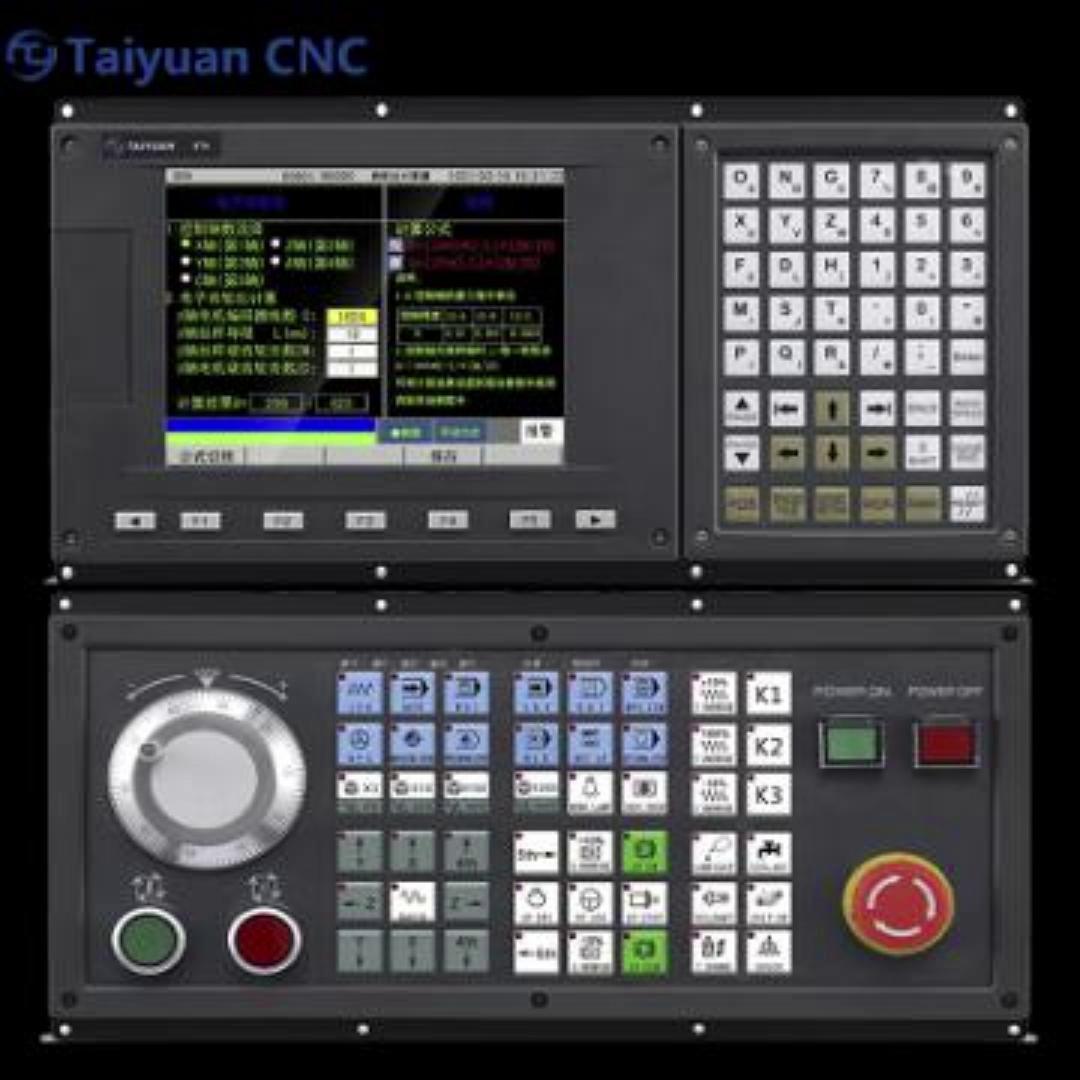

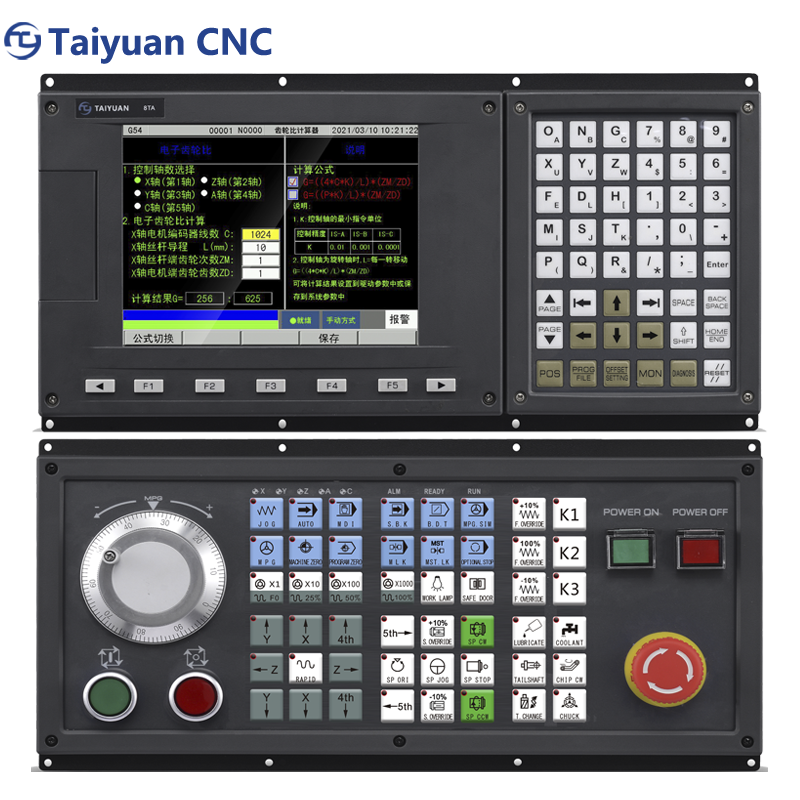

| 3-5 axes full English CNC turning controller |
| 800x600, 8-inch true color LCD display |
| electric tool rest, 4-16 station tool rest, AK31 tool tower, servo tool tower, Sixxin hydraulic tool tower |
| ATC, macro function, PLC function |
Connection motor control mode (pulse/analog) | supports analog and pulse control, pulse control: 1MHz, lμm pulse, 5V signal |
| spindle positioning, rigid tapping, spindle tapping |
| high anti-interference, 220VAC >24VDC&5V |
| 128MB memory, 100Mb user storage space |
| |
| 2-channel 0~10V analog voltage output, 1-channel spindle encoder feedback |
| |

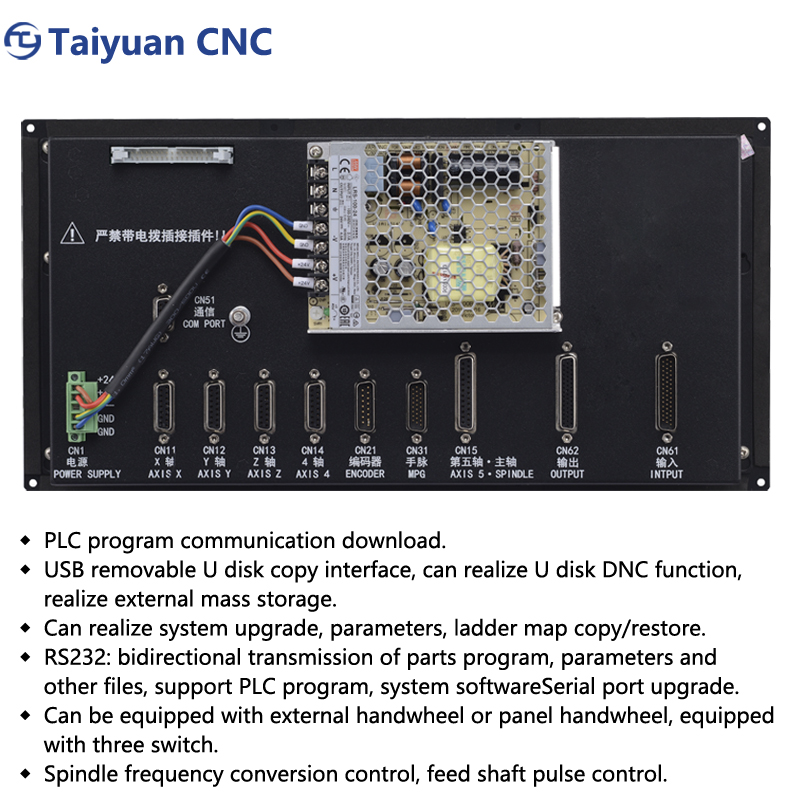

| 32 input /32 output, PLC online display, monitoring and design |
| "Tool length compensation (tool offset) : 32 sets of tool tip radius compensation (Type C)" |
Maximum number of linkage axes | maximum control of 5 feed axes and 5 axes linkage |
| Chinese and English menu, program and interface, full-screen version |
| Support macro/subroutine calls, allowing 4 double nesting |
| lead screw compensation, reverse gap compensation |
| The system adopts Modbus485 protocol |

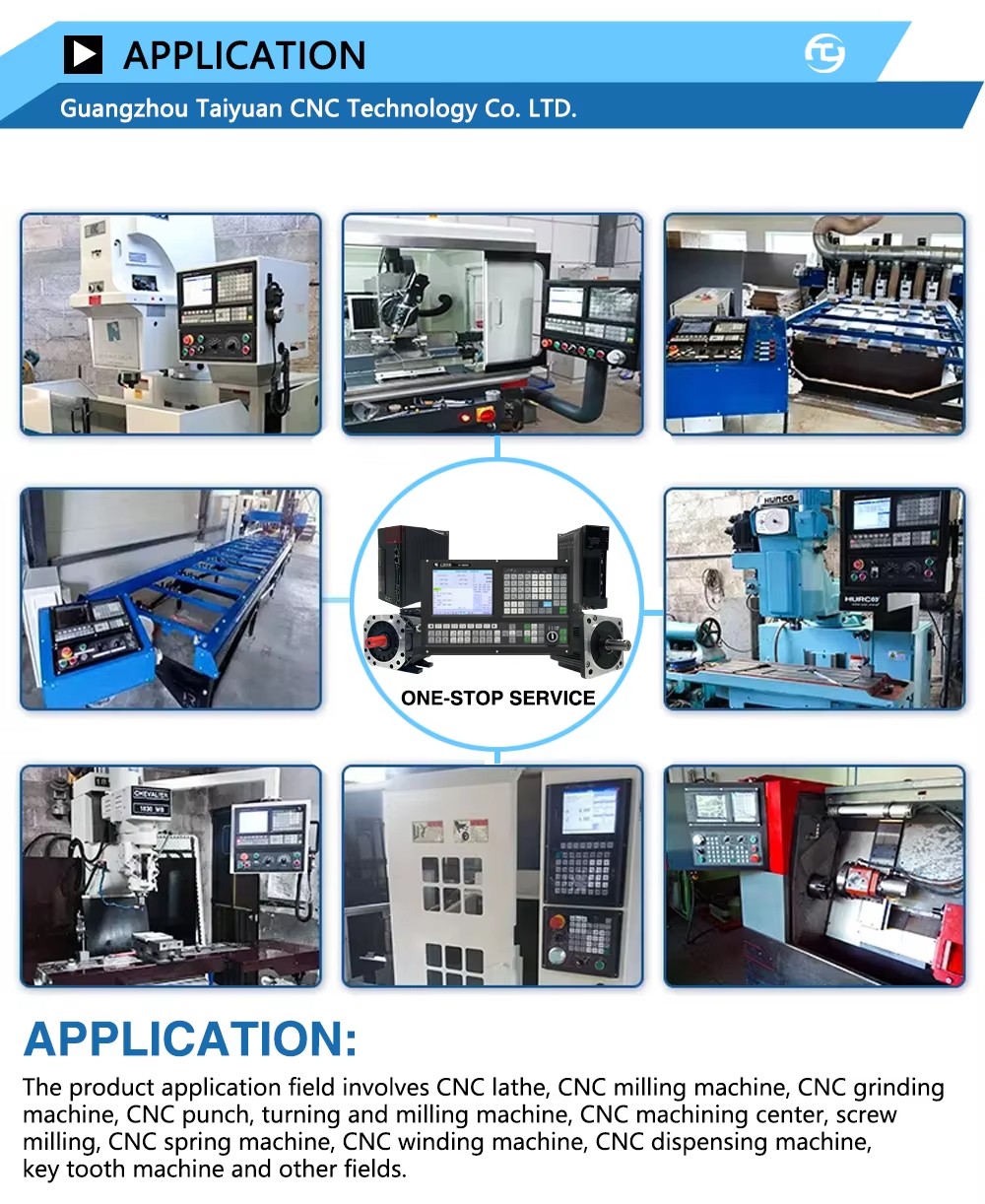

| CNC lathes, gantry milling machines, engraving machines, machining centers and other automation equipment |
| It has a unique teaching function. It can generate a program with one click based on the physical point data and other parameters related settings, making the program design simple and the operation flexible. |
