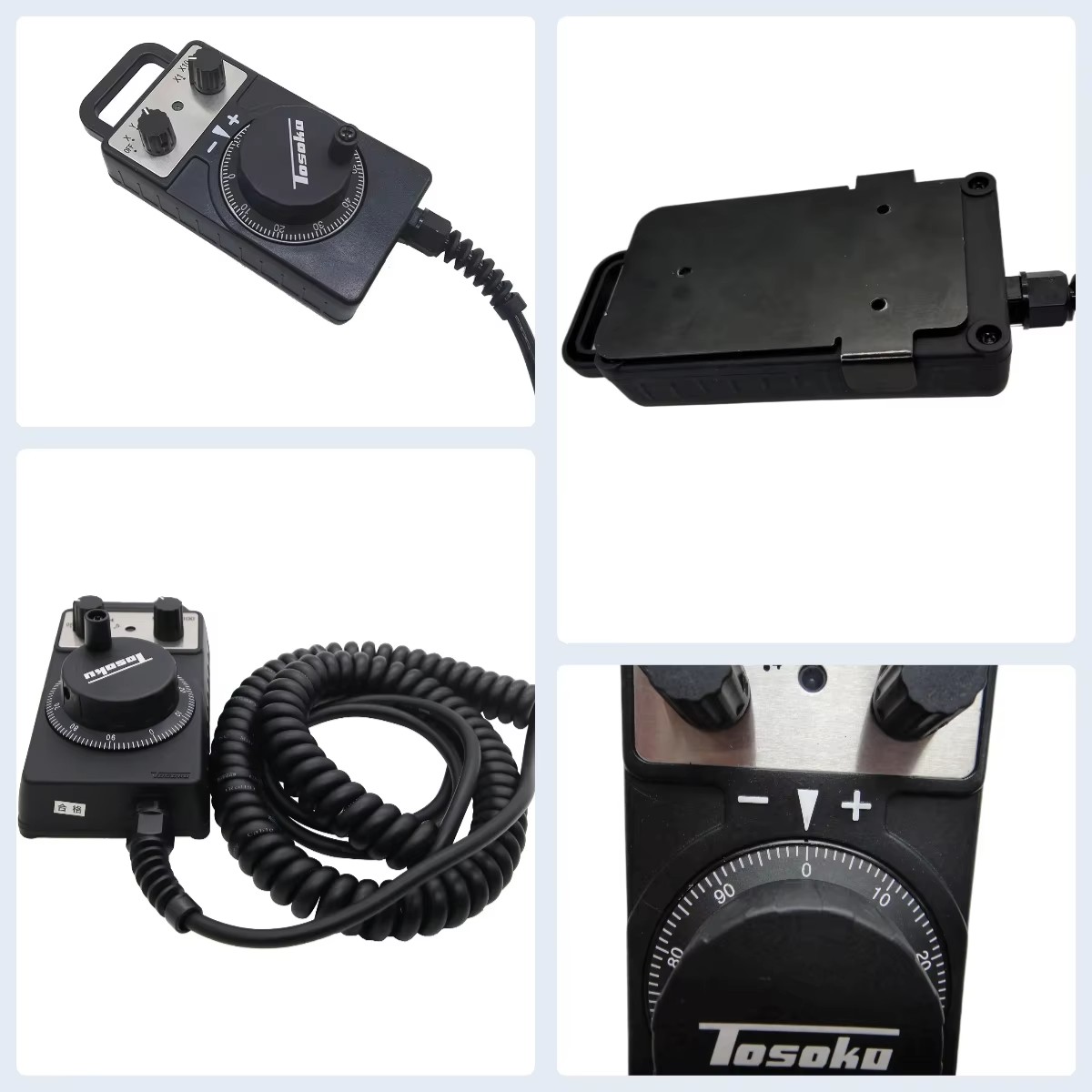

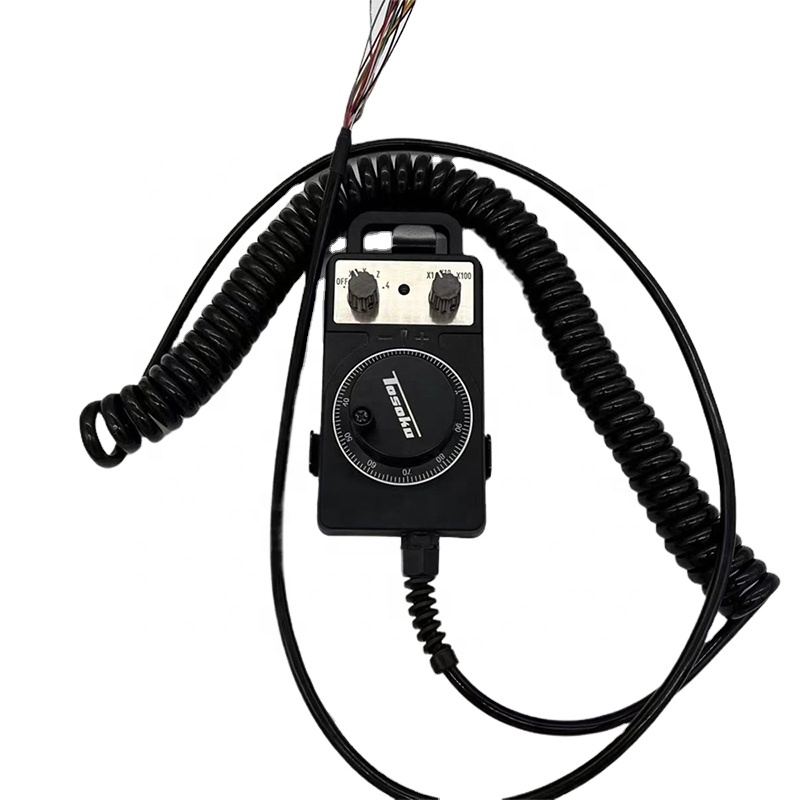

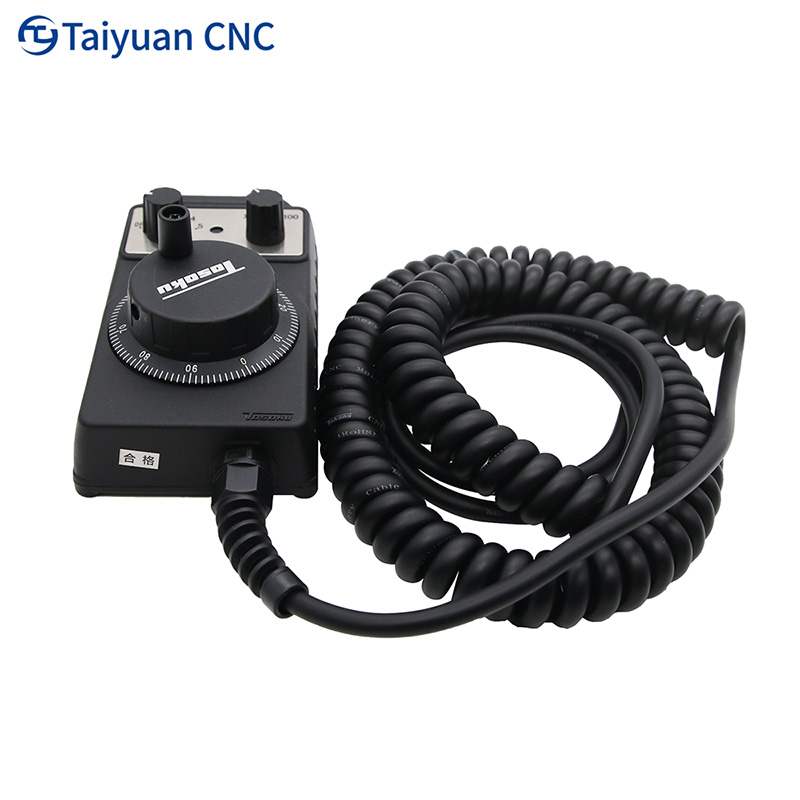

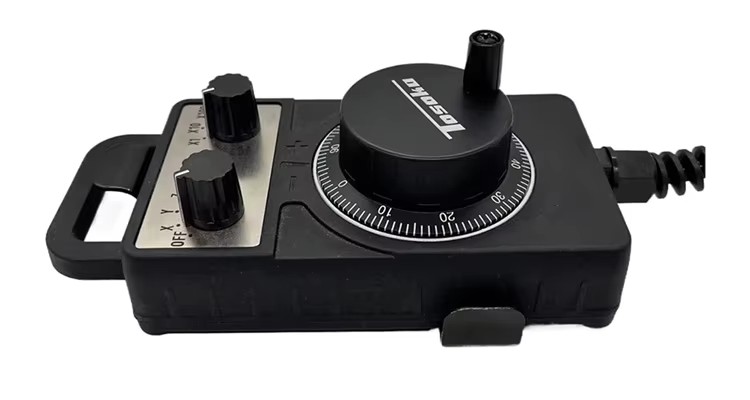

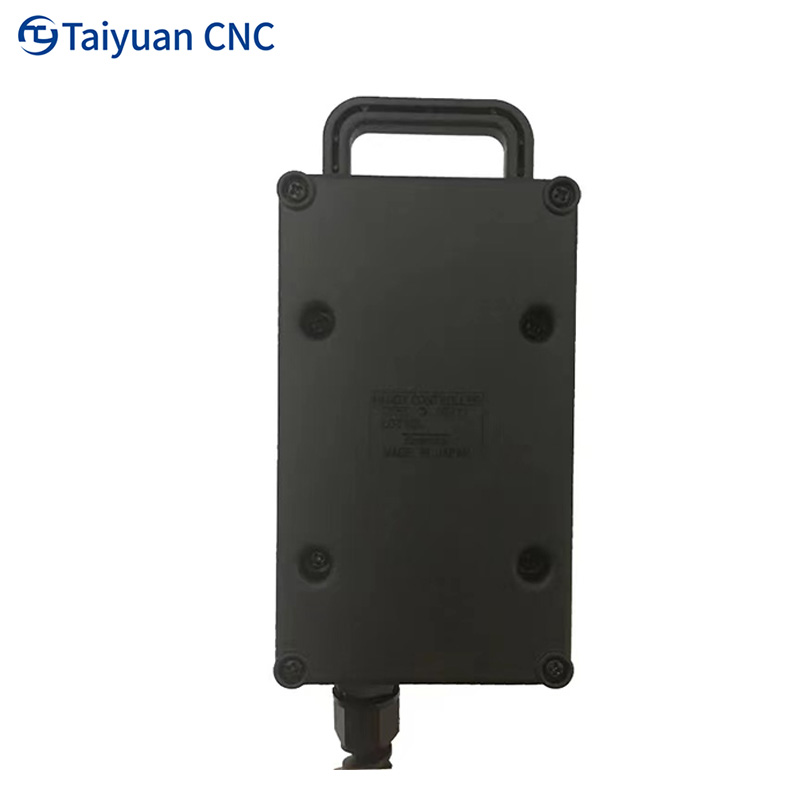

CNC Original CNC Handwheel Manual Pulse Generator 100PPR 5V High Quality Handwheel

Model：HC115

Reservation Now

Consult immediately

QR code

Prev: BT IHDW Axis4 5 6 MPG 25 100ppr Manual Pulse Generator CNC Handwheel Suitable for CNC Machine Tools

Next: High Precision TM1469 Universal Type 5V 100PPR 4-Axis Manual Pulse Generator MPG CNC Handwheel

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Product advantage

1. Compact structure: small size, ultra-thin, light weight; Advanced device, high stability, easy installation.
2. Waterproof and oil-proof: handwheel body sealing structure shell, dustproof and waterproof. IP67, oil pollution working environment can also be fully protected.
3. Fall and wear resistance: stainless steel panel, fall resistance; Imported material, dial font is clear, wear resistant color.
4. High compatibility: strong anti-interference performance, remote transmission. Multiple output interface types for various applications.


Product name	TOSOKU electronic handwheel
Product model	HC115, HC121, HC11D, HC111 series

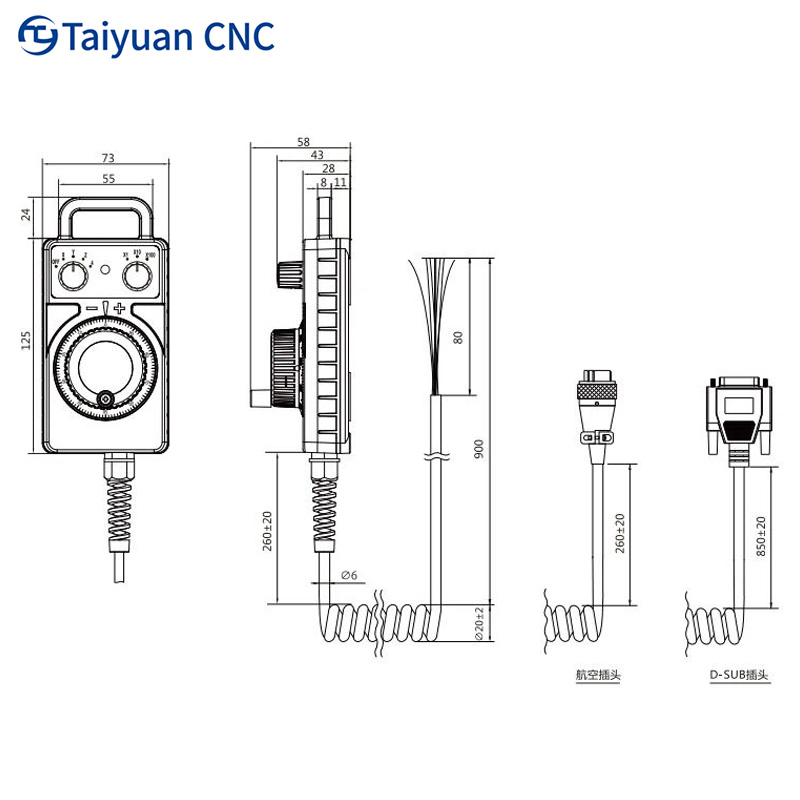

Product size	1257228 (mm)
Core device	TOSOKU Pulse Generator (5V 100PPR)(12V 25PPR)
Band switch	TOSOKU MR8A/MR8C
Adsorption mode	With magnet adsorption, hook support protection (according to user selection)
Complete accessories	Including high-grade hook, containing 5 meters oil-resistant helix, packaging box, manual
LED visual indicator	green
Immunity to interference	Standard EN50082-2
Warranty period	12 months
Net weight	508.6 g
Gross weight	618.1 g
System selection	HC115 : Voltage (5V), pulse (100PPR) suitable for systems such as Fanuc
	HC11D : Voltage (5V), pulse (100PPR) suitable for systems such as Siemens
	HC121 : Voltage (12V), pulse (25PPR) suitable for systems such as Mitsubishi
	HC111 : Voltage (12V), pulse (100PPR) suitable for systems such as Okuma

详情图片_06.jpg 详情图片_07.jpg 详情图片_09.jpg 详情图片_11.jpg 详情图片_10.jpg 详情图片_14.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_15.jpg
