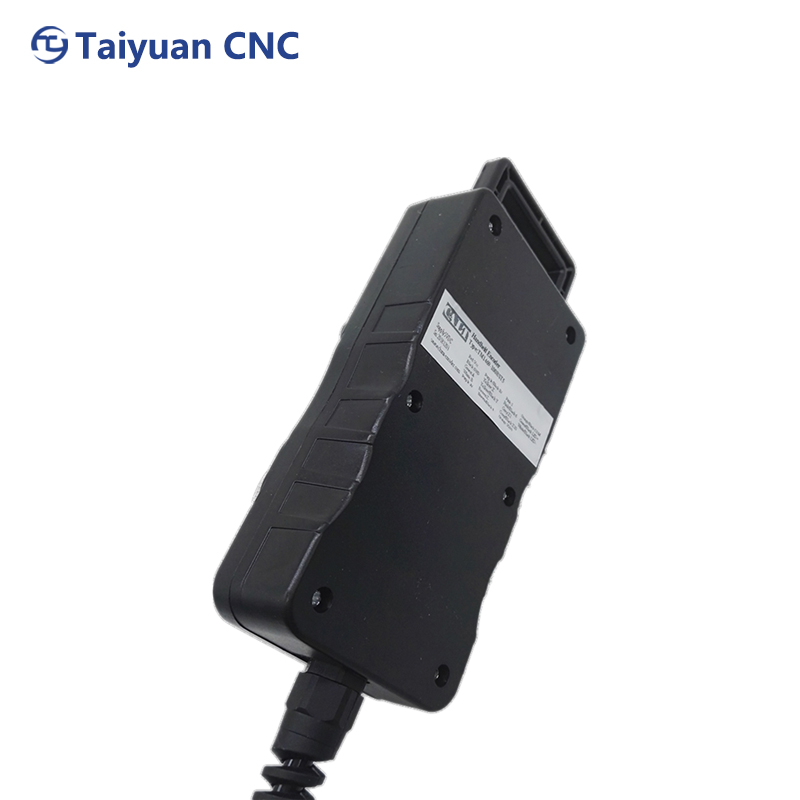

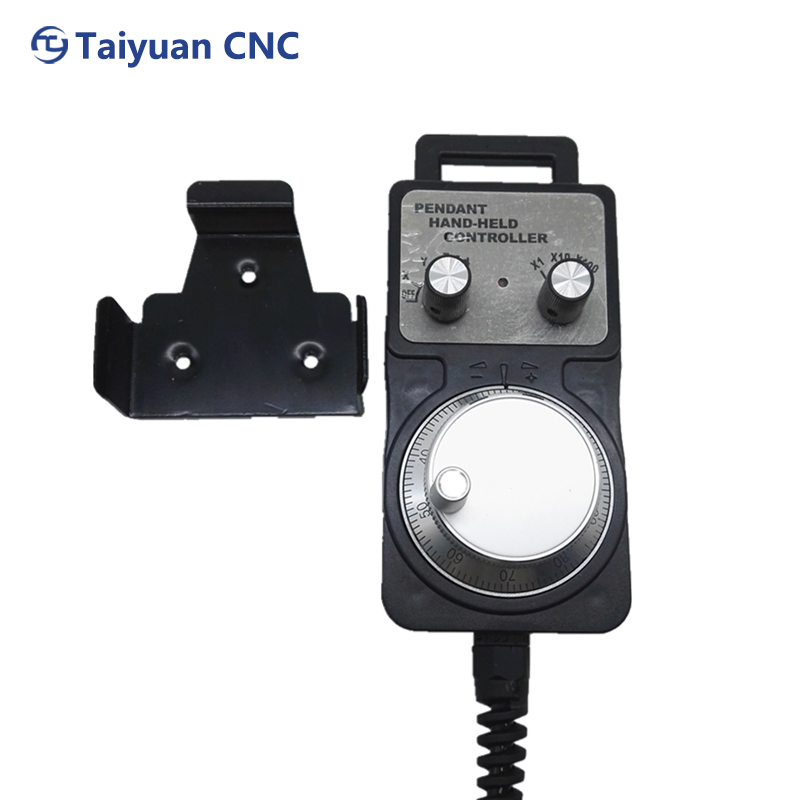

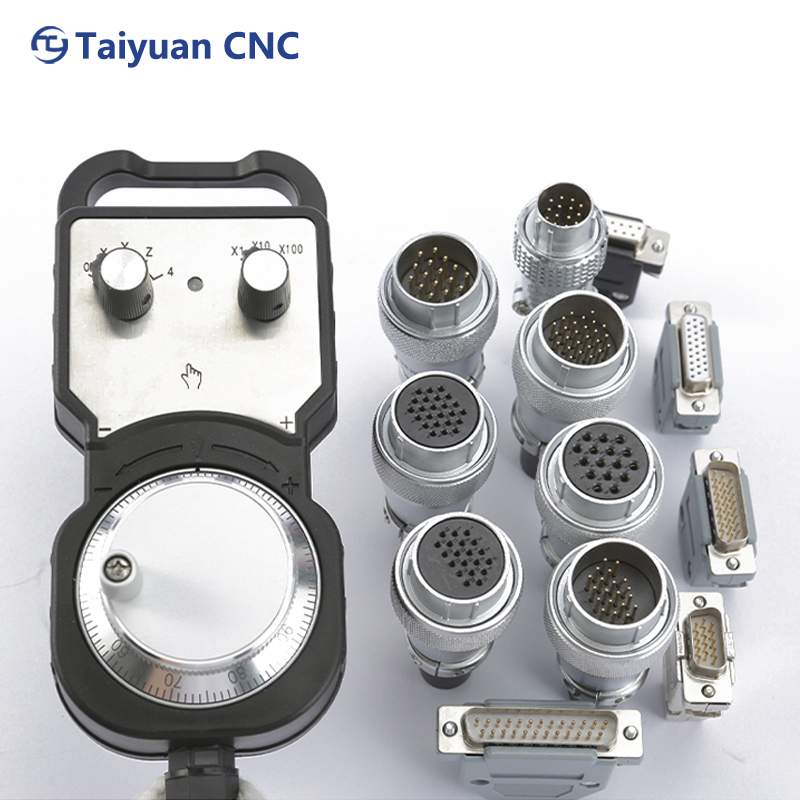

High Precision TM1469 Universal Type 5V 100PPR 4-Axis Manual Pulse Generator MPG CNC Handwheel

Model：MY1469

Reservation Now

Consult immediately

QR code

Detail

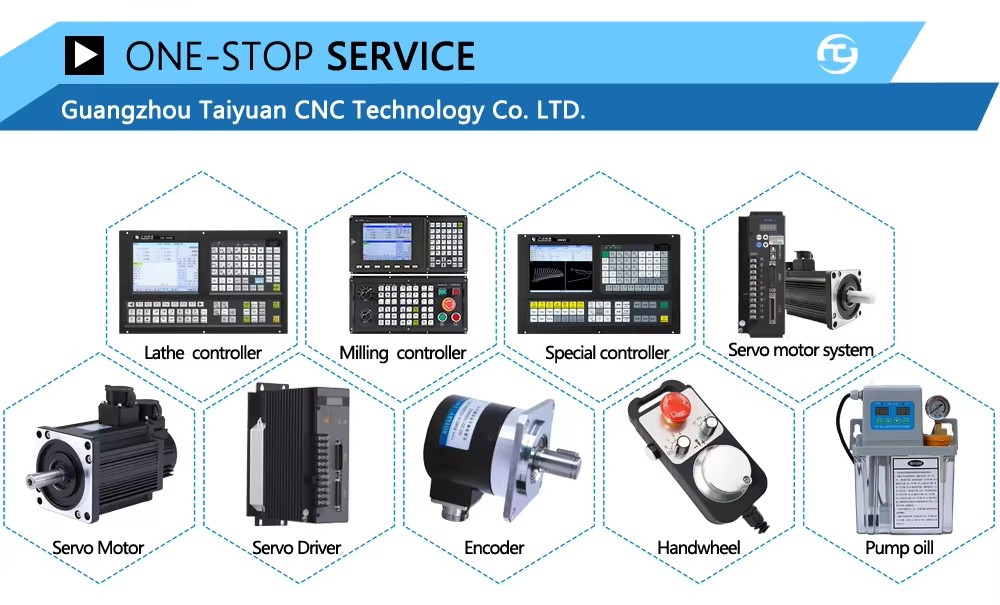

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg

Output circuit	Open-collector output	Voltage output	Push-pull complementary outputs	driver
Supply voltage	5~26V	5~26V	5±0.25 5~26V	5±0.25 5~26V
Current consumption	≤80mA	≤80mA	≤80mA	≤150mA
Load current	40mA	40mA	40mA	60mA
Output high	Min Vcc*70%	Min Vcc-2.5V	Min Vcc-1.5V	Min 3.4V
Output low	MAX 0.4V	MAX 0.4V	MAX 0.8V	MAX 0.4V
Rise time Tr	MAX 1us	MAX 1us	MAX 1us	MAX 200ns
Fall time Tf	MAX 1us	MAX 1us	MAX 1us	MAX 200ns
Highest frequency response	10kHz	10kHz	10kHz	10kHz

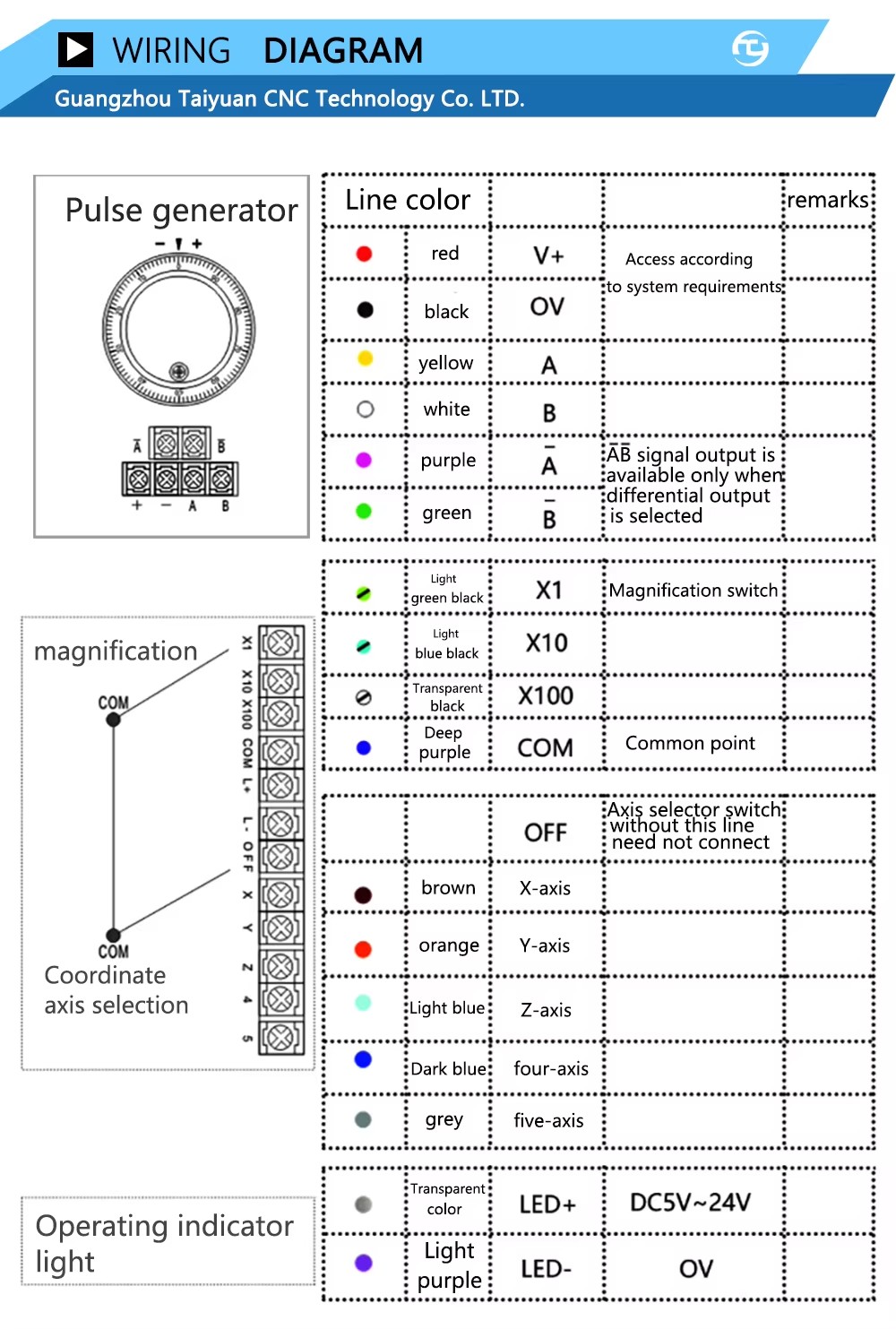

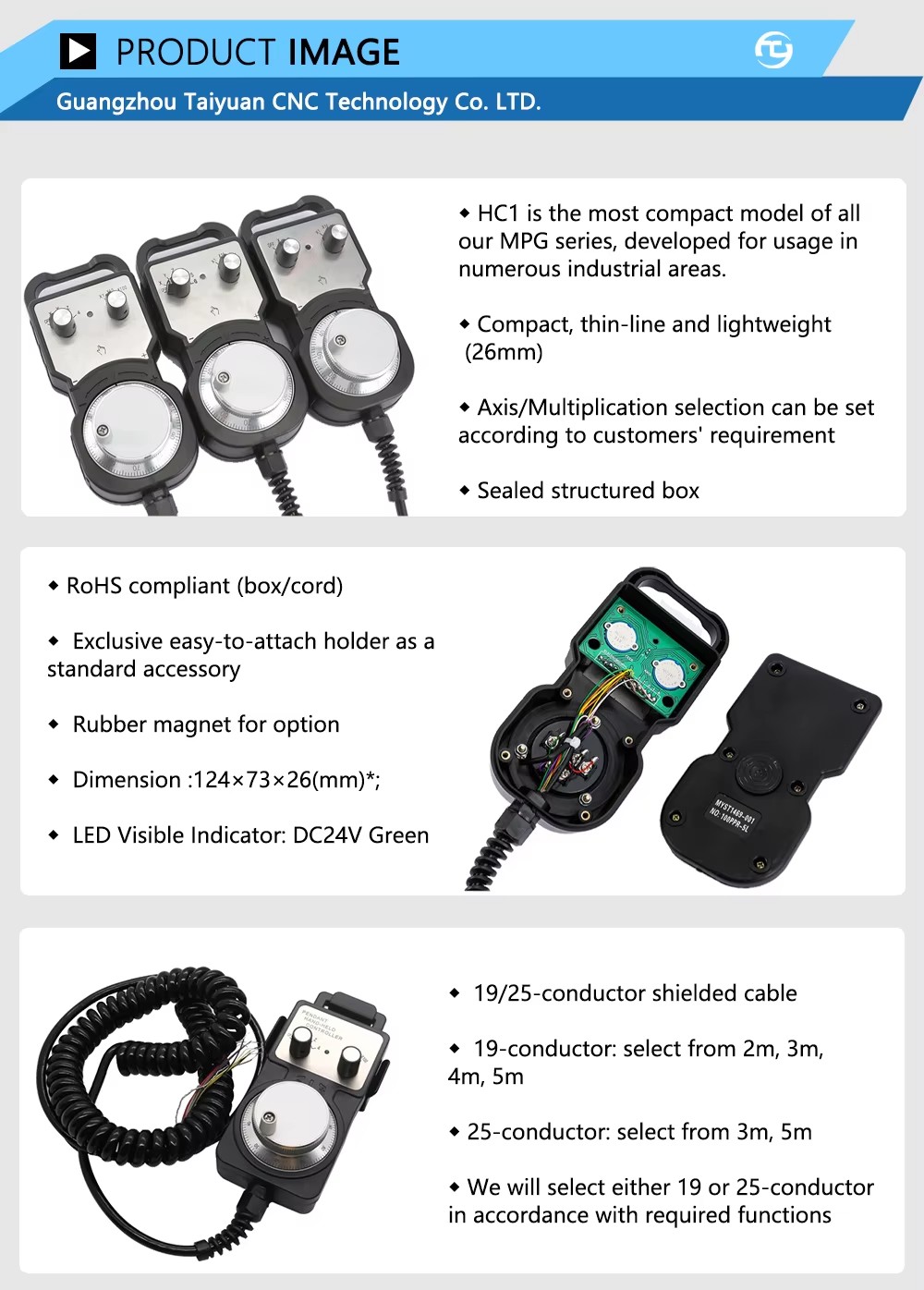

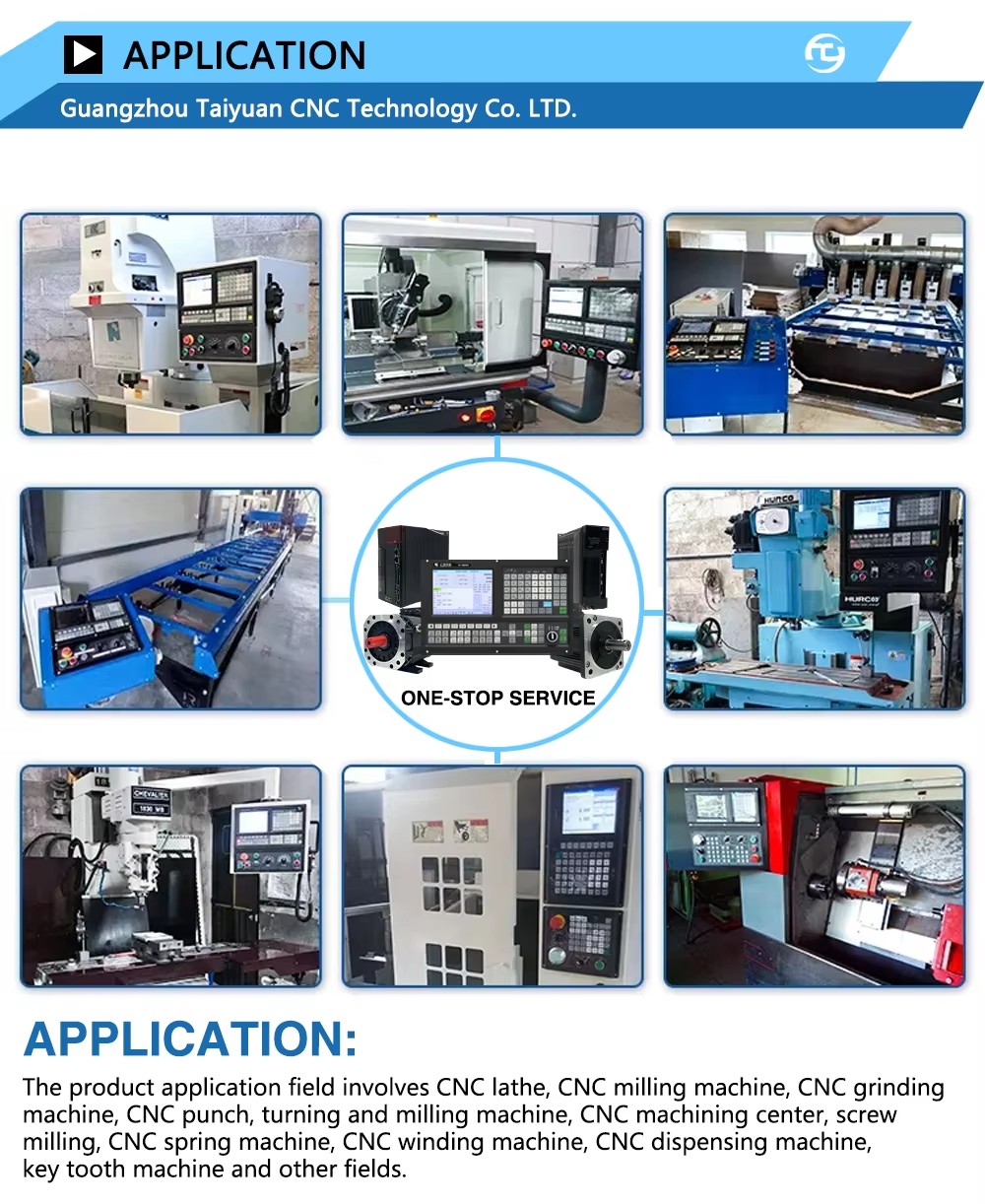

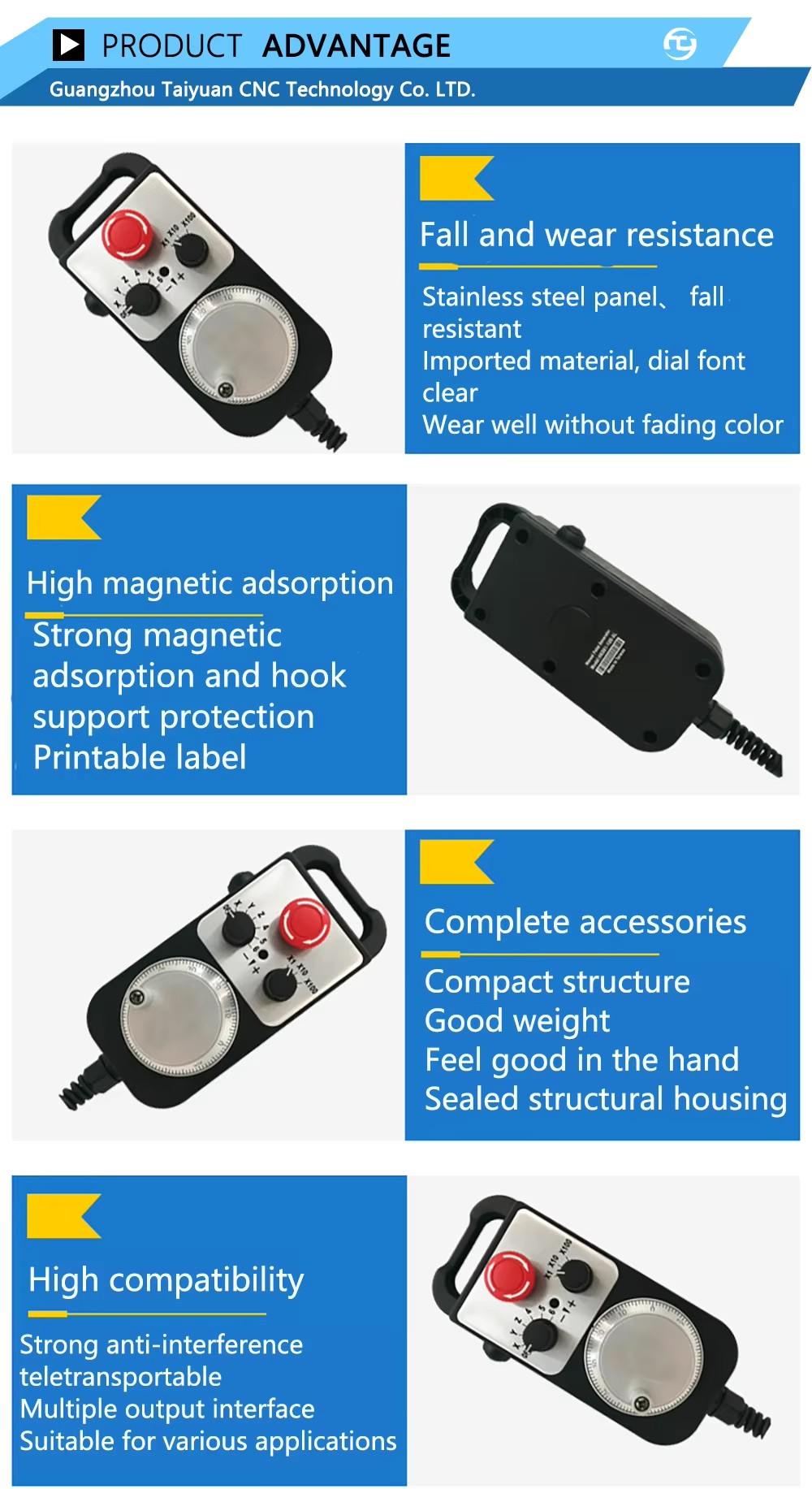

详情图片_04.jpg 详情图片_05.jpg 详情图片_06.jpg 详情图片_07.jpg 详情图片_09.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg
