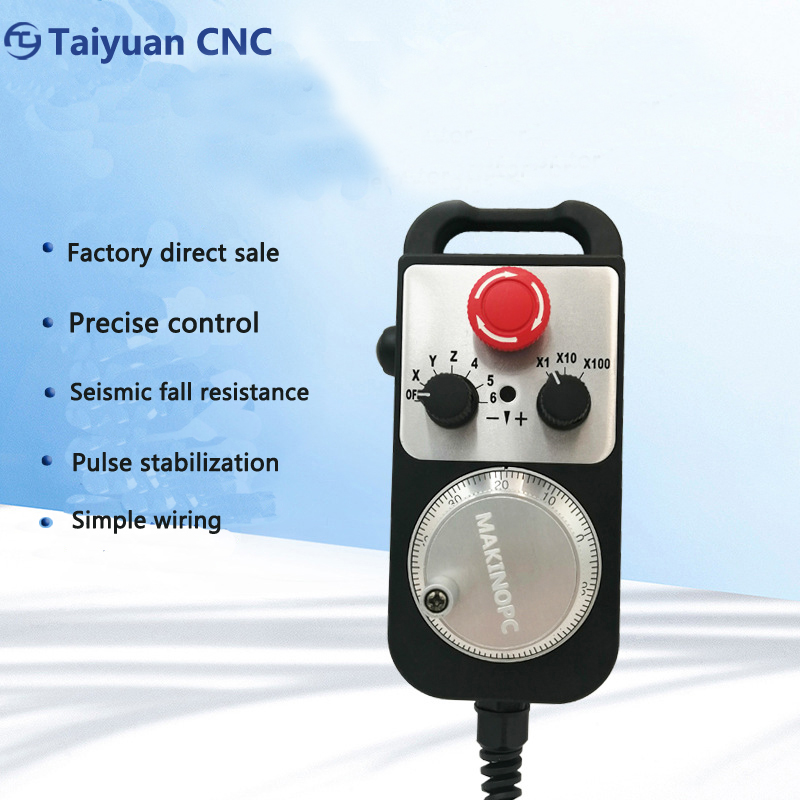

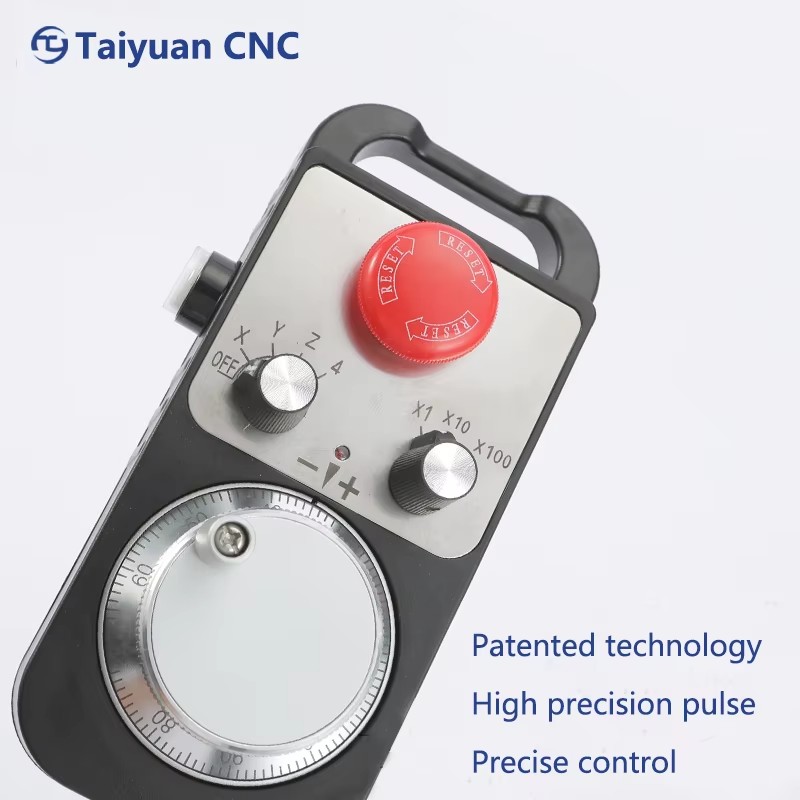

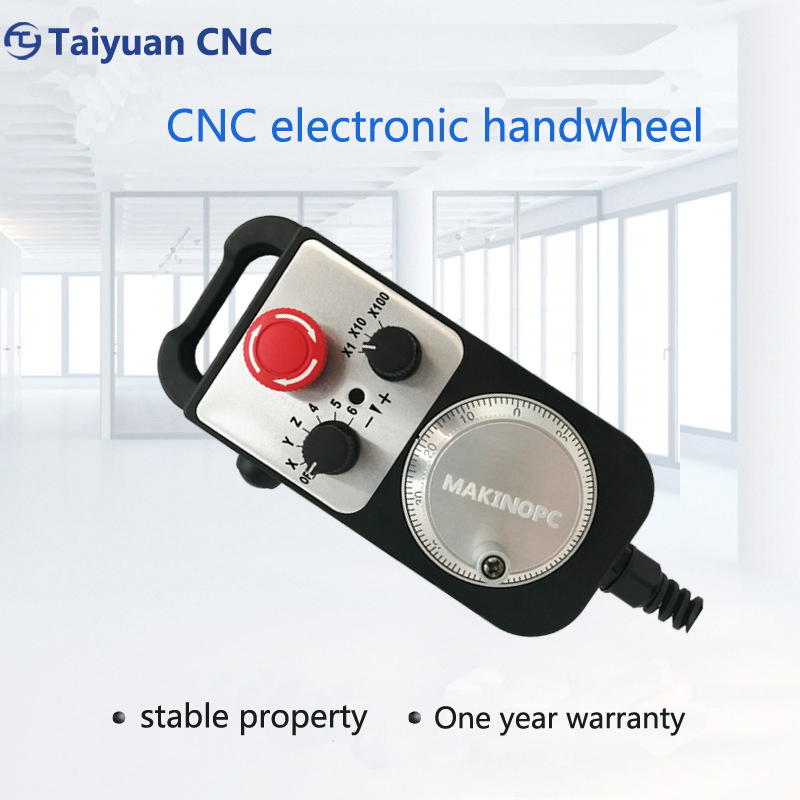

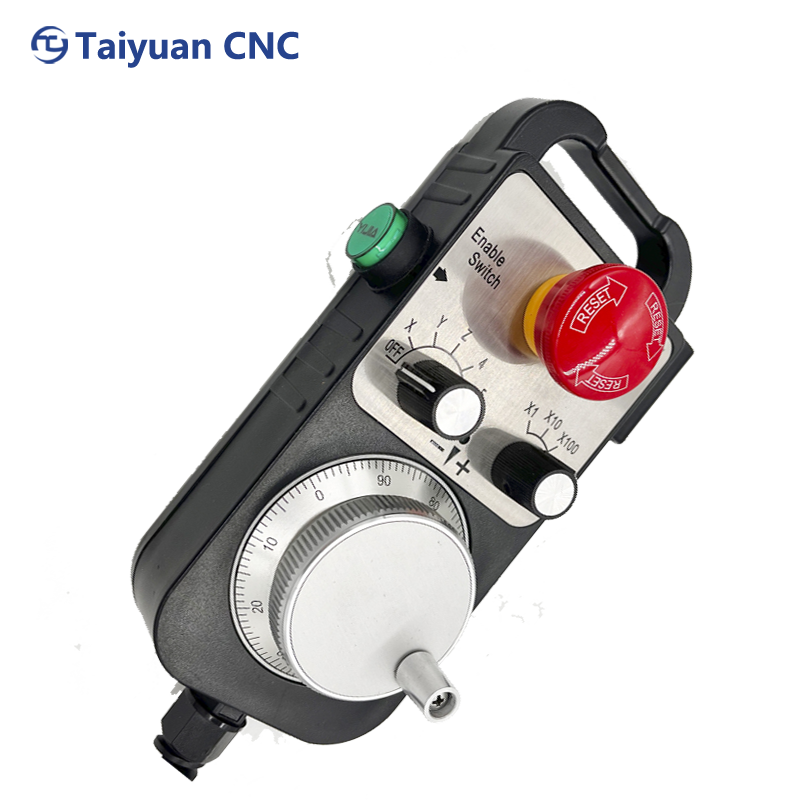

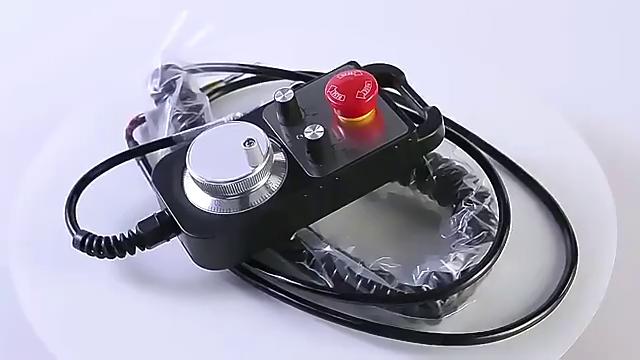

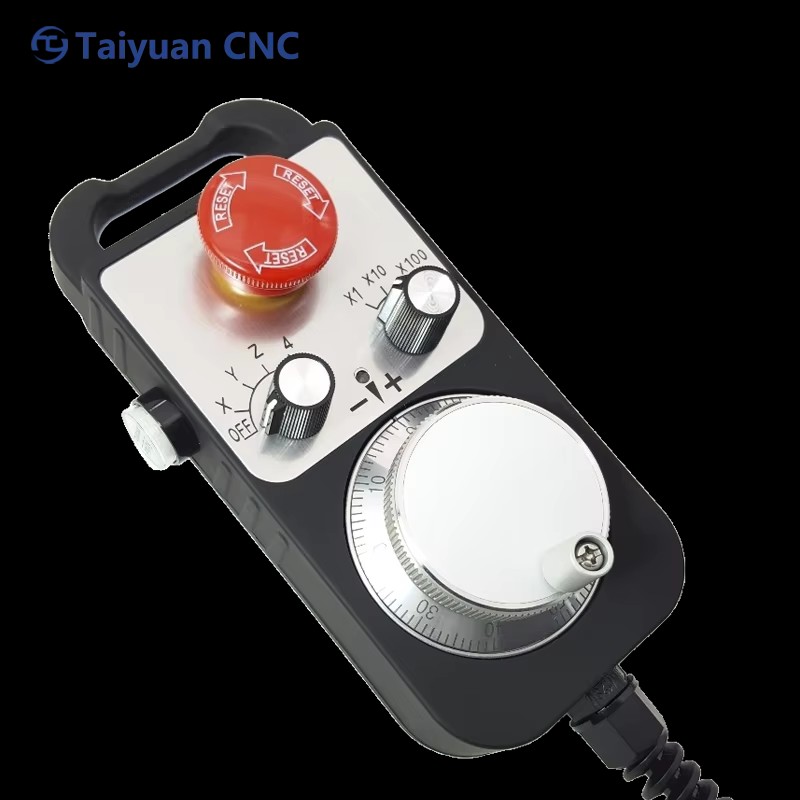

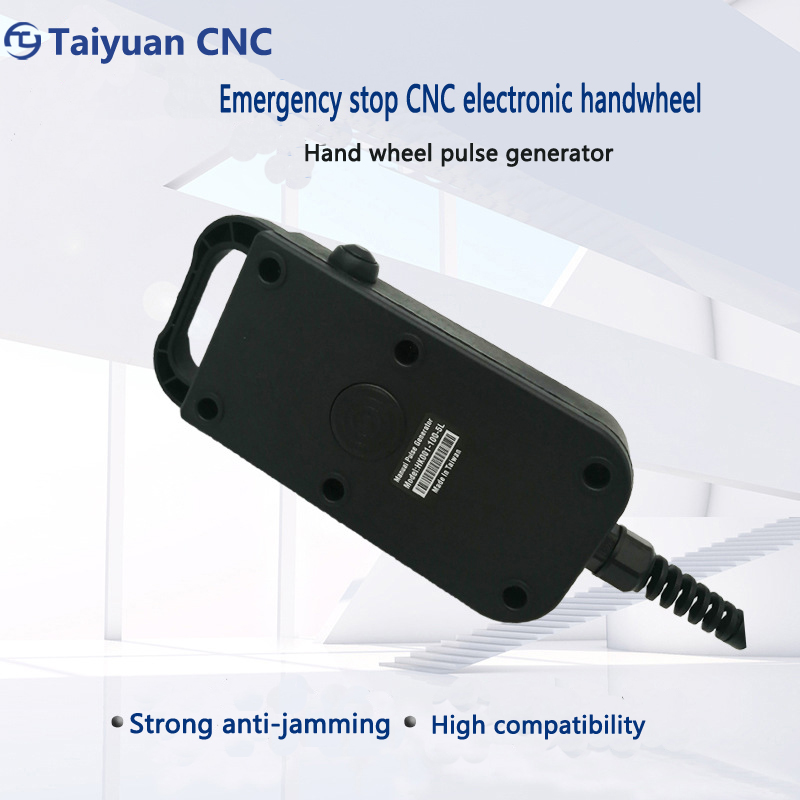

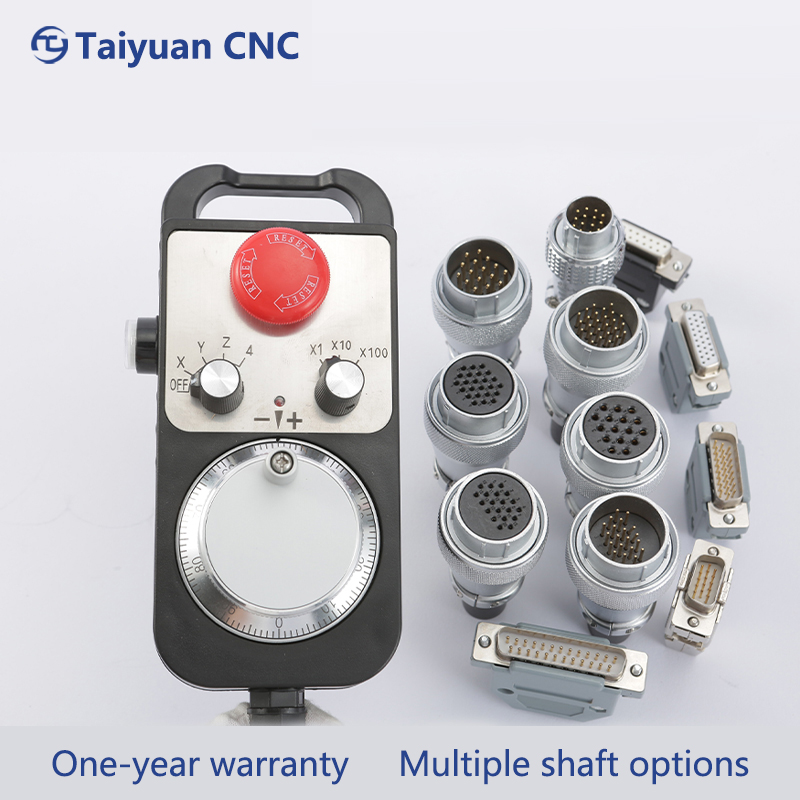

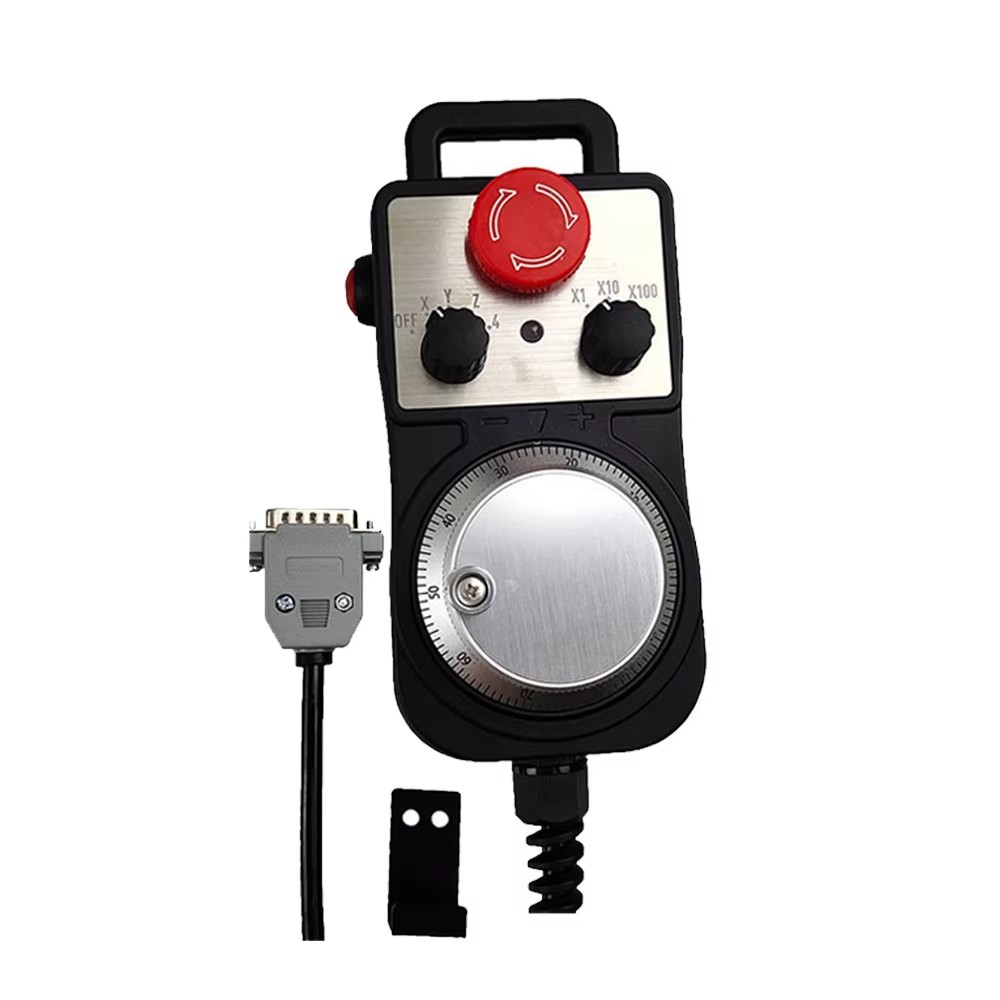

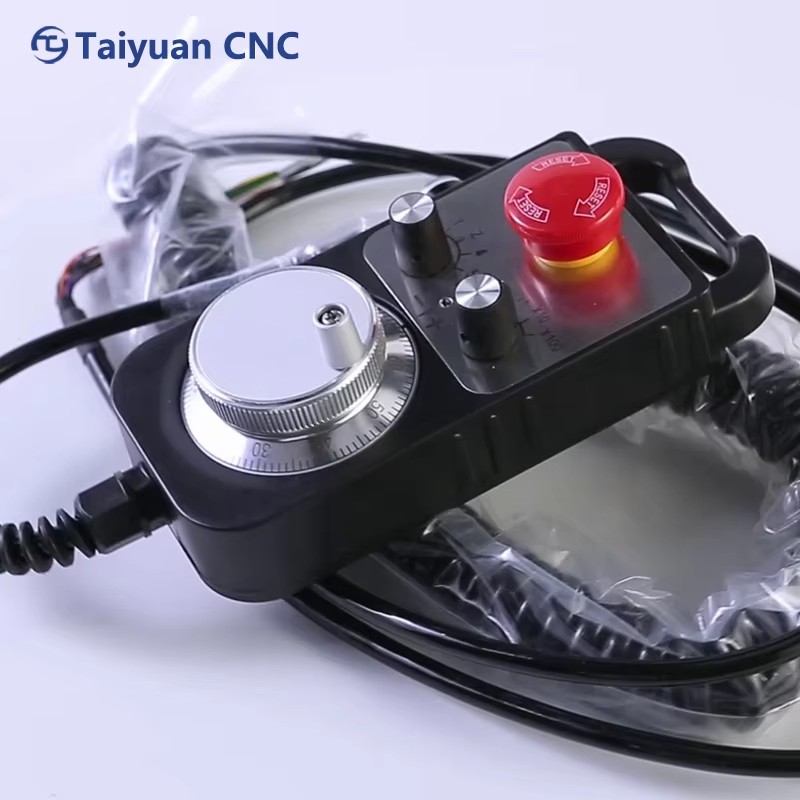

High Performance System Cnc Control Mpg Handwheel Manual Pulse Generator Availablefor CNC Vertical Lathe

WeChat
copy Link
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Model：MY1474
Reservation Now
Consult immediately
QR code
Prev: High Precision TM1469 Universal Type 5V 100PPR 4-Axis Manual Pulse Generator MPG CNC Handwheel
Next: CNC Machine Tool Electronic Handwheel Encoder MPG 100PR Pendant Manual Pulse Generator
Detail


Output circuit
Open-collector output
Voltage output
Push-pull complementary outputs
driver
Supply voltage
5~26V
5~26V
5±0.25 5~26V
5±0.25 5~26V
Current consumptin
≤80mA
≤80mA
≤80mA
≤150mA
Load current
40mA
40mA
40mA
60mA
Output high
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Output low
MAX 0.4V
MAX 0.4V
MAX 0.8V
MAX 0.4V
Rise time Tr
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Fall time Tf
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Highest frequency response
10kHz
10kHz
10kHz
10kHz
Max speed r/min
Starting torque
Axis maximum load
Impact
Anti-vibration
6000
<0.05Nm
Radial 25 N Axial 15N
50G/11ms
10G 10-2000Hz
Moment inertia
Work Temperature
Storage Temperature
Protection Degree
Weight
4 x 10.-8kgm²
-25~75ºC
-25~85ºC
IP50
250g
