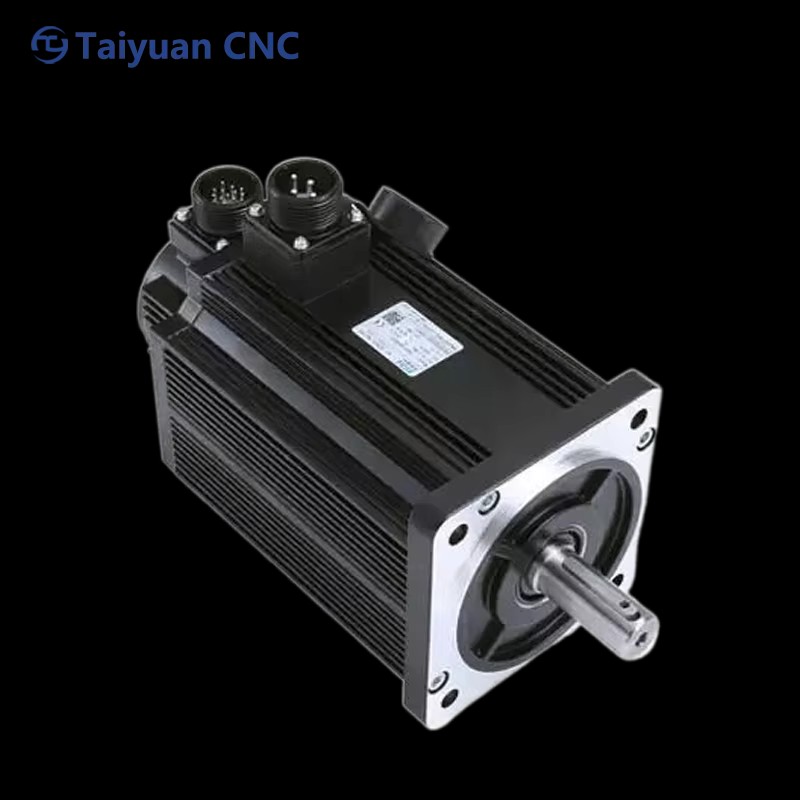

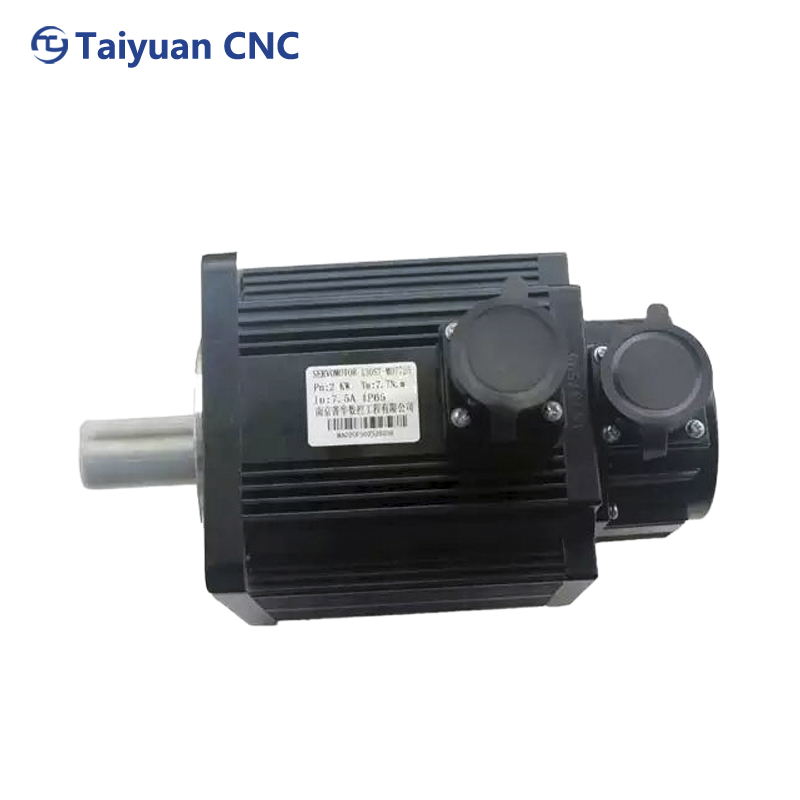

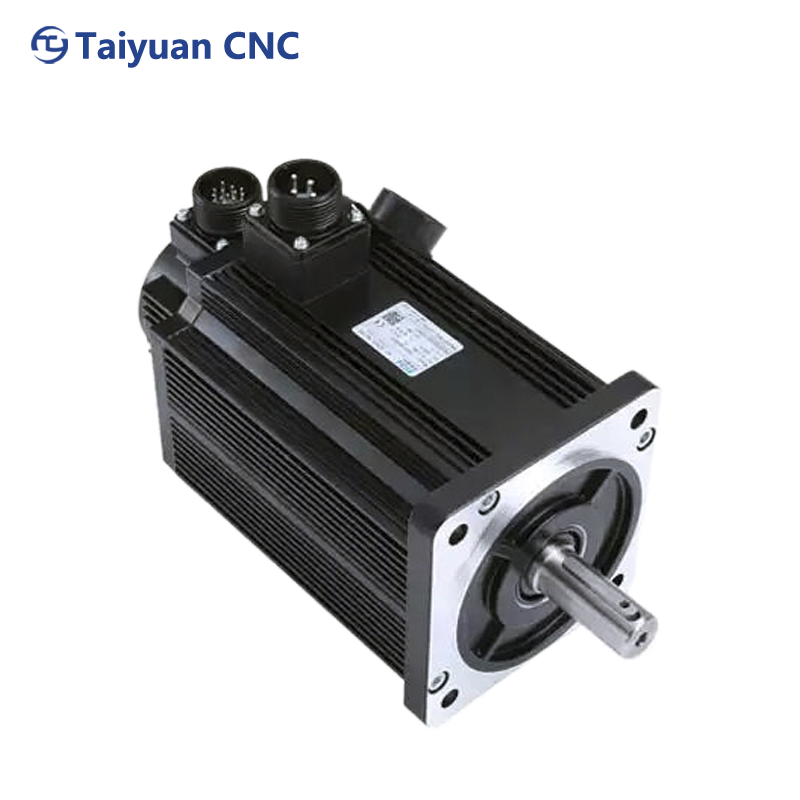

2.3KW 220V 3 Phase Ac Servo Motor Absolute Encoder for CNC Vertical Lathe

Model：130-M15015

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg

Motor model	130-AM15015
Rated power(KW)	2.3
Rated voltage(V)	220
Rated current(A)	9.5
Rated speed(rpm)	1500
Rated torque(N.m)	15
Peak torque(N.m)	30
Voltage constant(V/1000r/min)	114
Torque coefficient(N.m/A)	1.58
Rotor inertia(Kg.M2)	2.77*0.001
LINE-LINE RESISTANCE (Q)	1.1
LINE-LINE INDUCTANCE (mH)	4.45
ELECTRICAL TIME-CONSTANT (ms)	4.05
Weight(Kg)	12.6
Encoder line number(PPR)	2500
Insulation class	Class F
Safety class	IP65
The operating of Evironmental Conditions	Temperature: -20 ∼ +40 HumidityBelow 90%RH No dewing

Motor winding plue	Winding lead wire	PE(yellow, green)	U(red)	V(blue)	W(yellow)
Motor winding plue	Plug serial number	1	2	3	4

ABSOLUTE ENCODER SOCKET(7PIN)	Signal lead wire	E-	E+	SD-	0V	SD+	+5V	PE
ABSOLUTE ENCODER SOCKET(7PIN)	Plug serial number	2	3	4	5	6	7	1

详情图片_04.jpg 详情图片_05.jpg 详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg

Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

详情图片_09.jpg 详情图片_10.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_15.jpg 详情图片_14.jpg 详情图片_16.jpg 详情图片_17.jpg
