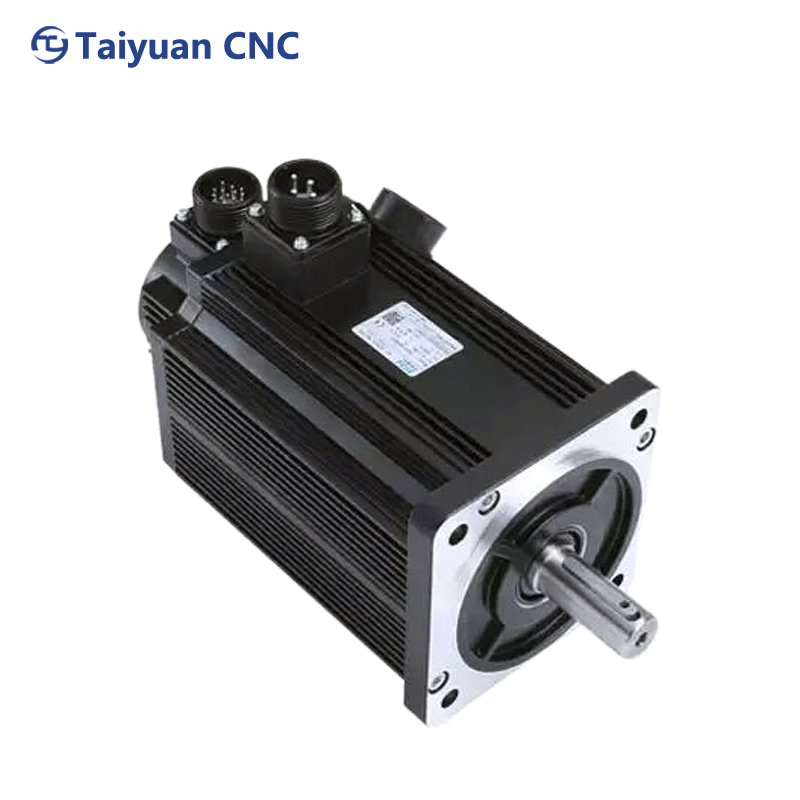

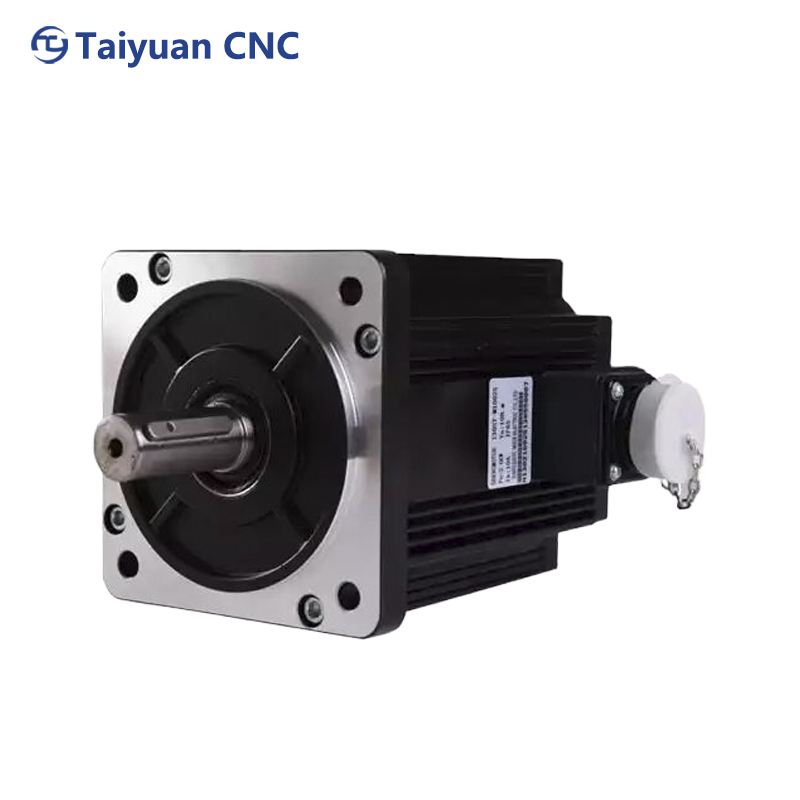

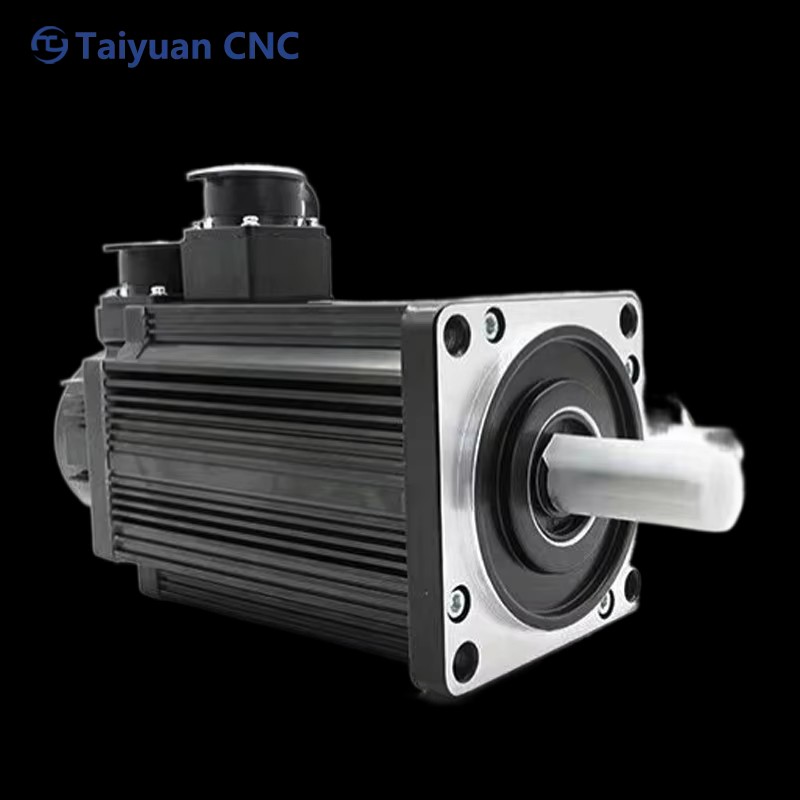

Durable 6Nm 2500rpm Servo Motor 1500W 130mm for Precision Industrial Equipment

Model：130-M06025

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	130-M06025
Rated power(Kw)	1.5
Rated voltage(v)	220
Rated current(A)	6
Rated speed(rpm)	2500
Rated torque(N.m)	6
Peak torque(N.m)	18
Voltage constant(V/1000r/min)	65
Torgue coefficient(N.m/A)	1
Rotor inertia(Kg.M2)	1.26*0.001
LINE-LINE RESISTANCE (Q)	1.28
LINE-LINE INDUCTANCE (mH)	3.95
ELECTRICAL TIME-CONSTANT (MS)	3.08
Weight(kg)	7.4
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing

Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
