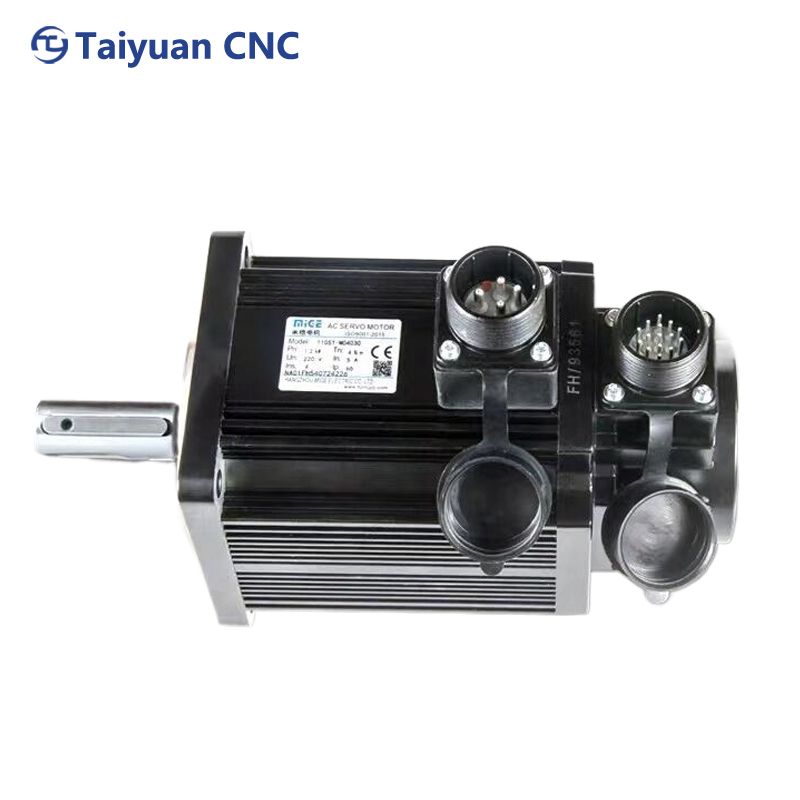

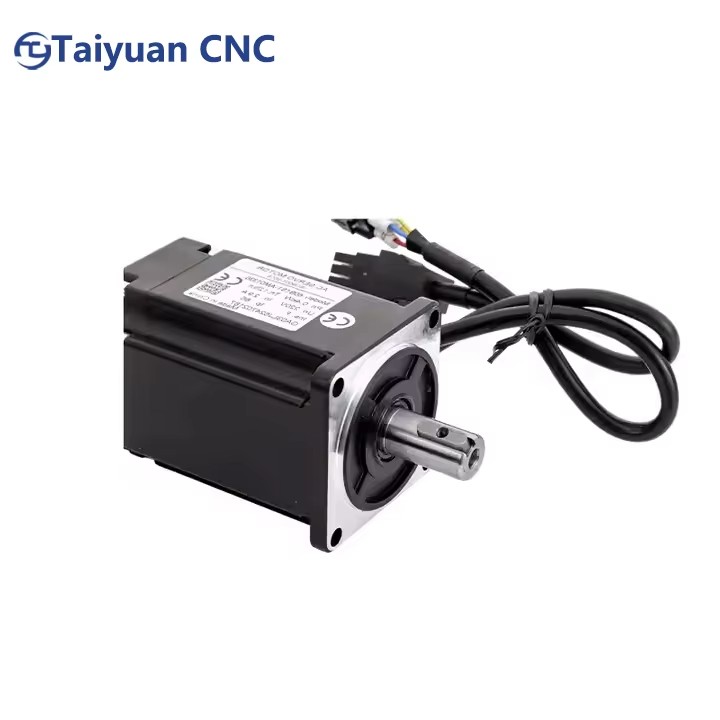

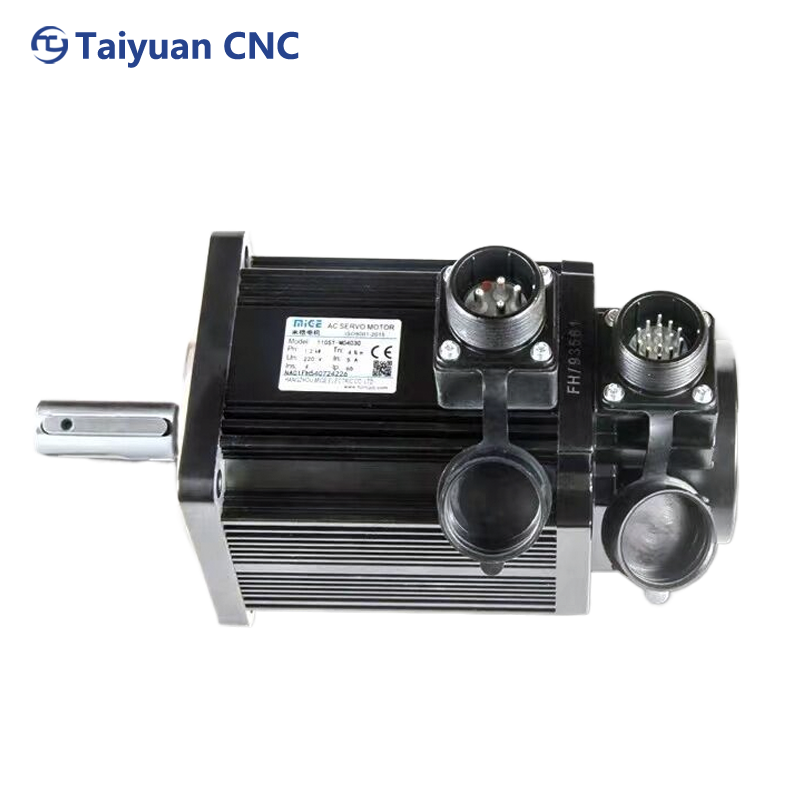

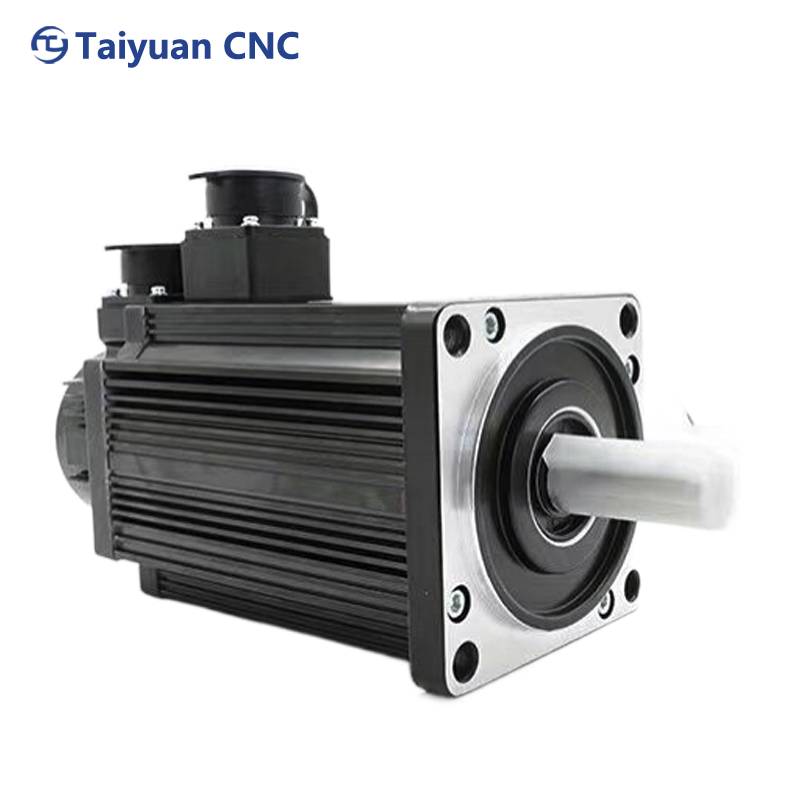

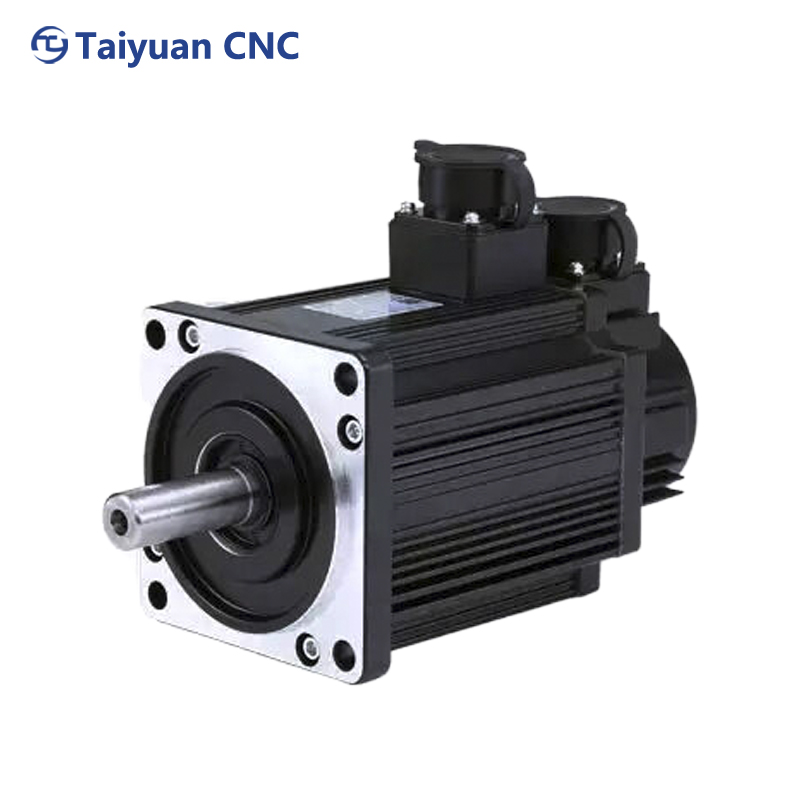

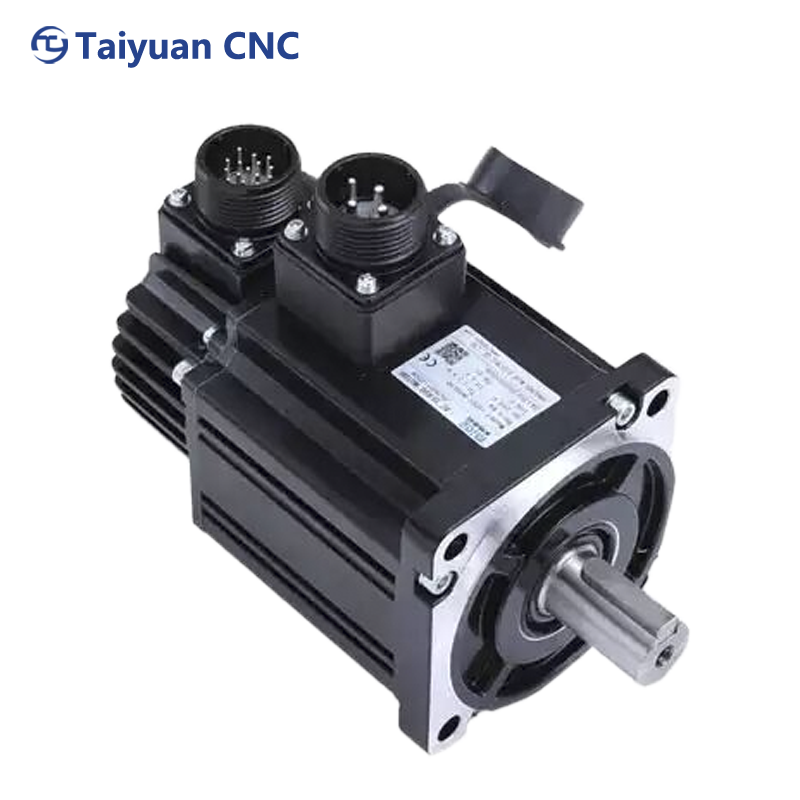

Industrial Grade 1.2kw Servo Motor 110mm 3000rpm CE Approved for CNC Applications

Model：110-M04030

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	110-M04030
Rated power(Kw)	1.2
Rated voltage(v)	220
Rated current(A)	5
Rated speed(rpm)	3000
Rated torque(N.m)	4
Peak torque(N.m)	12
Voltage constant(V/1000r/min)	79
Torgue coefficient(N.m/A)	1.14
Rotor inertia(Kg.M2)	0.54*0.001
LINE-LINE RESISTANCE (Q)	1.05
LINE-LINE INDUCTANCE (mH)	3.4
ELECTRICAL TIME-CONSTANT (MS)	3.24
Weight(kg)	6
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing


Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_11.jpg 详情图片_10.jpg 详情图片_13.jpg 详情图片_12.jpg 详情图片_14.jpg 详情图片_15.jpg
