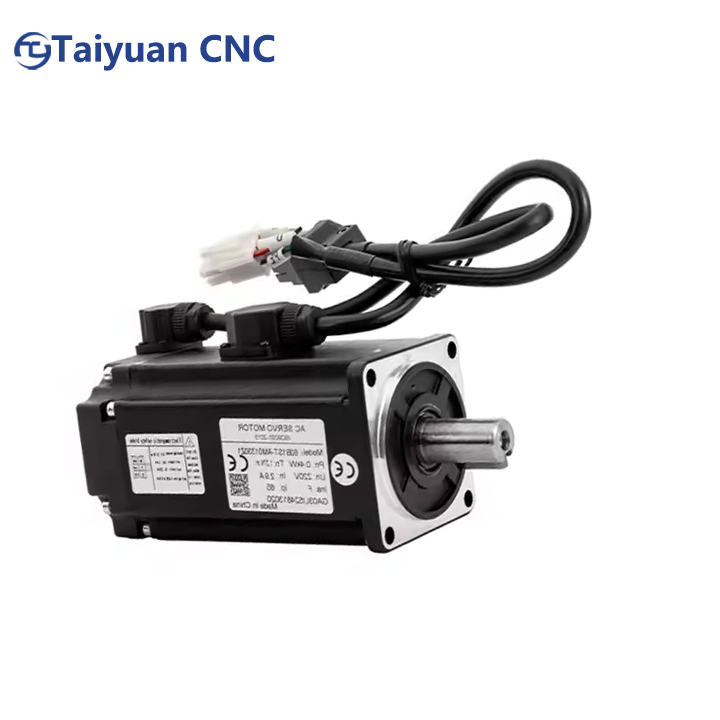

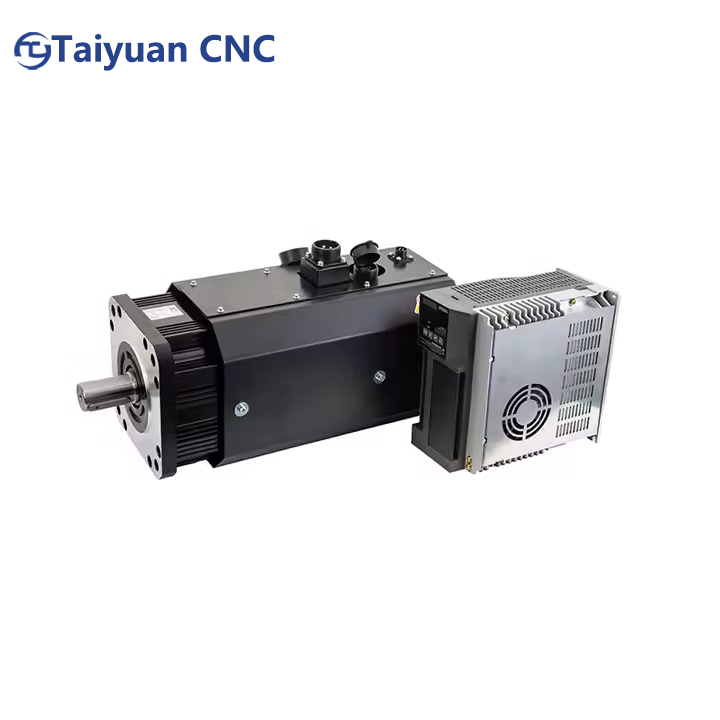

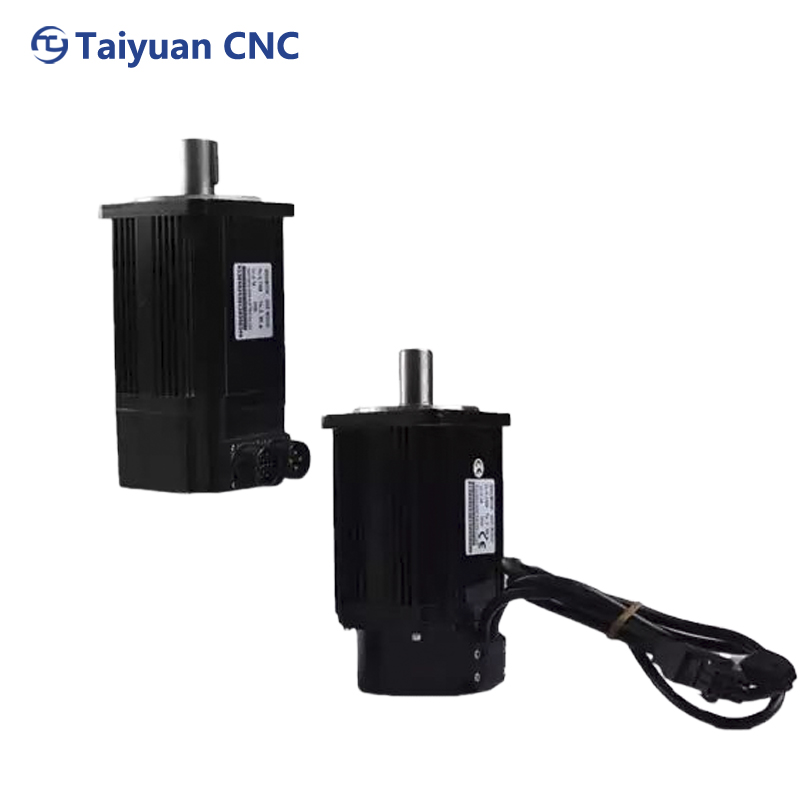

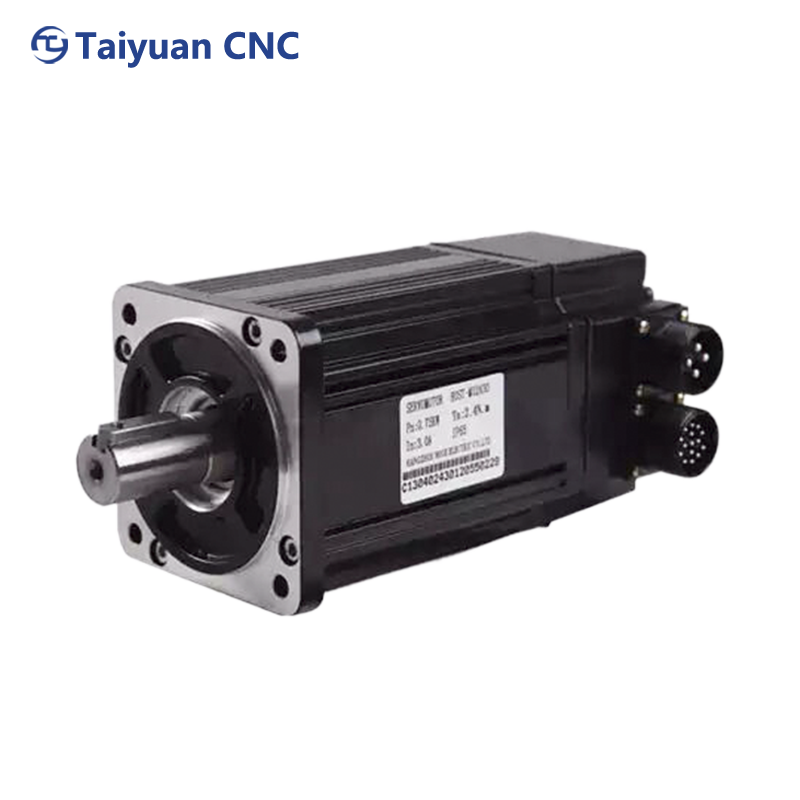

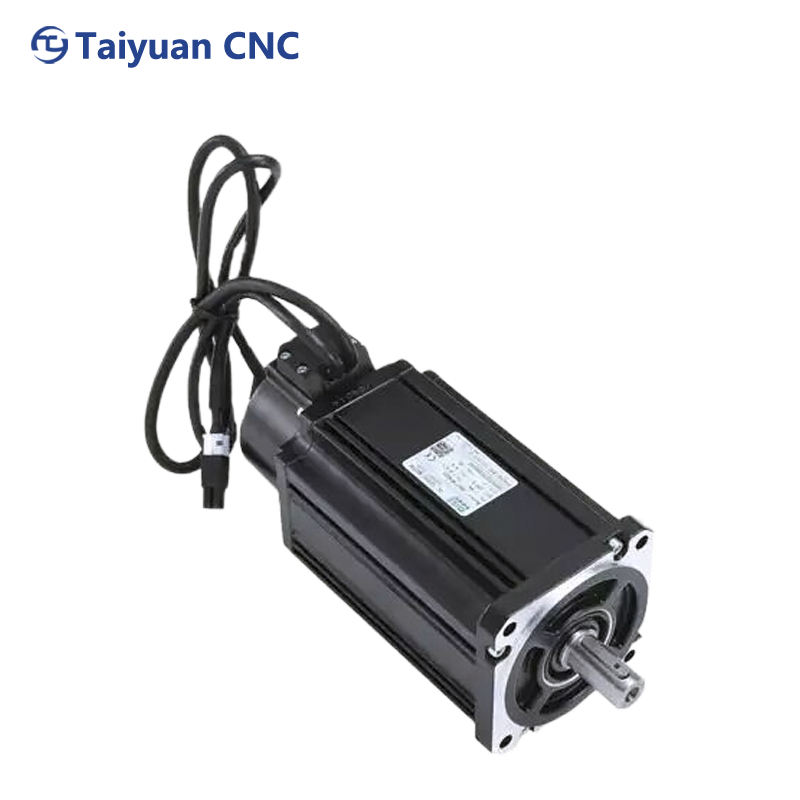

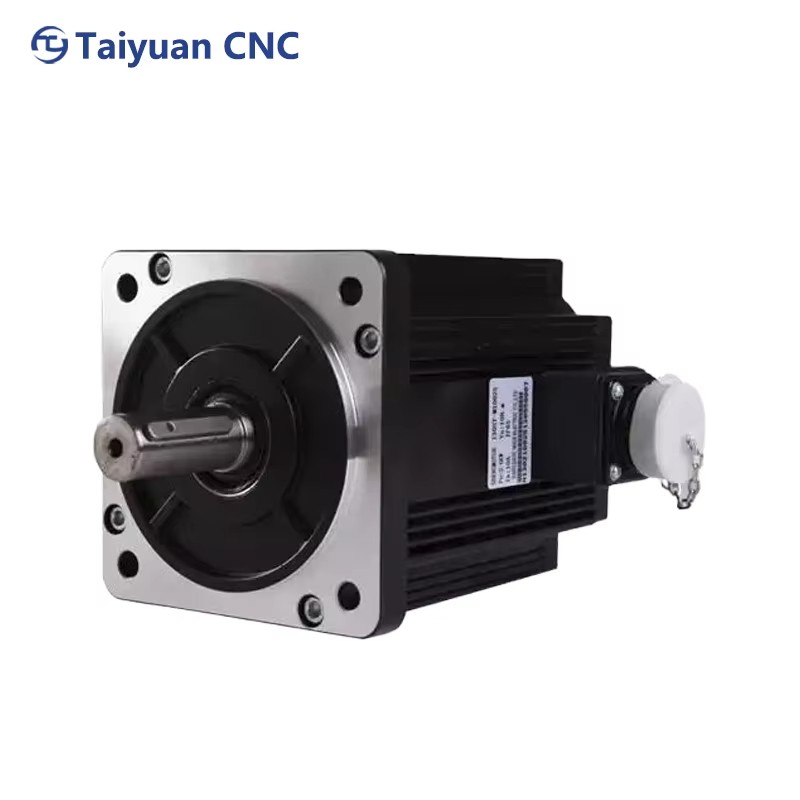

High Torque 1000W Integrated AC Servo Motor for Industrial Automation Systems

Model：90-M04025

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	90-M04025
Rated power(Kw)	1.0
Rated voltage(v)	220
Rated current(A)	4
Rated speed(rpm)	2500
Rated torque(N.m)	4
Peak torque(N.m)	12
Voltage constant(V/1000r/min)	60
Torgue coefficient(N.m/A)	1.0
Rotor inertia(Kg.M2)	3.7*0.0001
LINE-LINE RESISTANCE (Q)	2.5
LINE-LINE INDUCTANCE (mH)	5.3
ELECTRICAL TIME-CONSTANT (MS)	2.12
Weight(kg)	4.2
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing

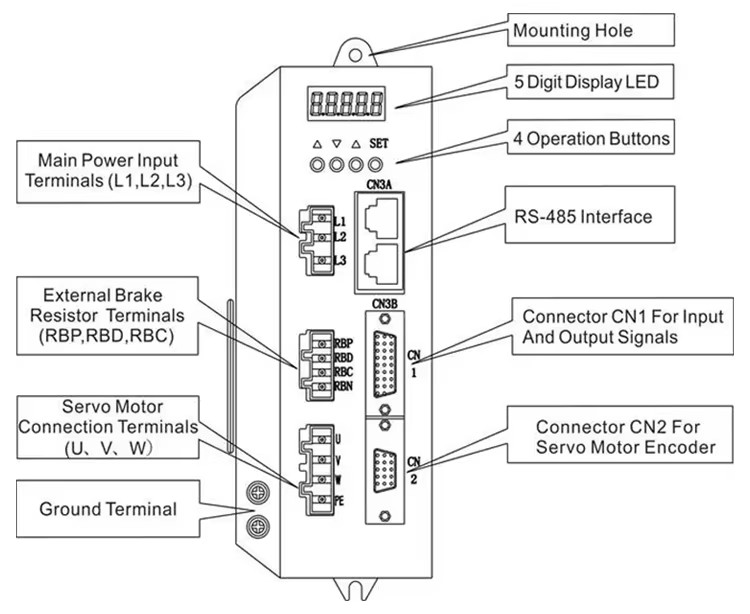

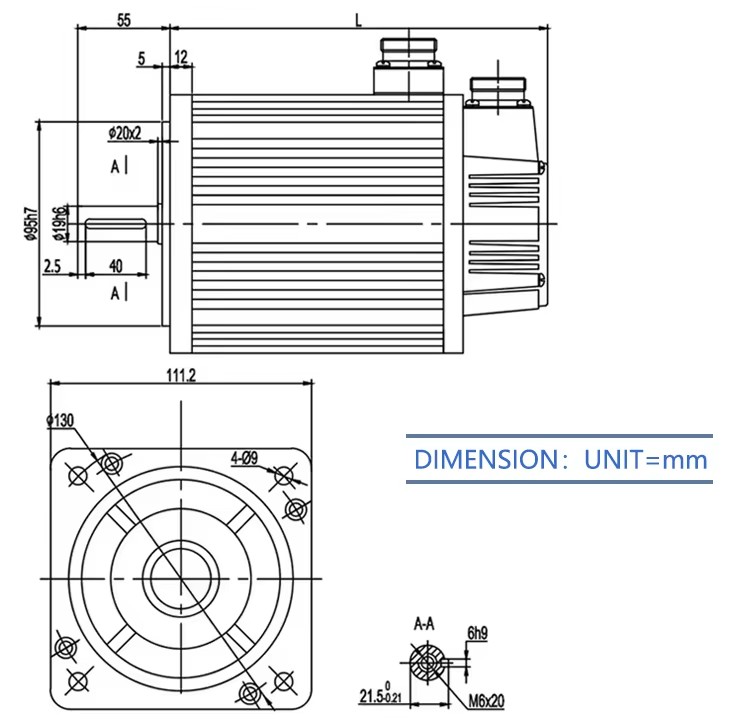

详情图片_05.jpg 详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg 详情图片_15.jpg
