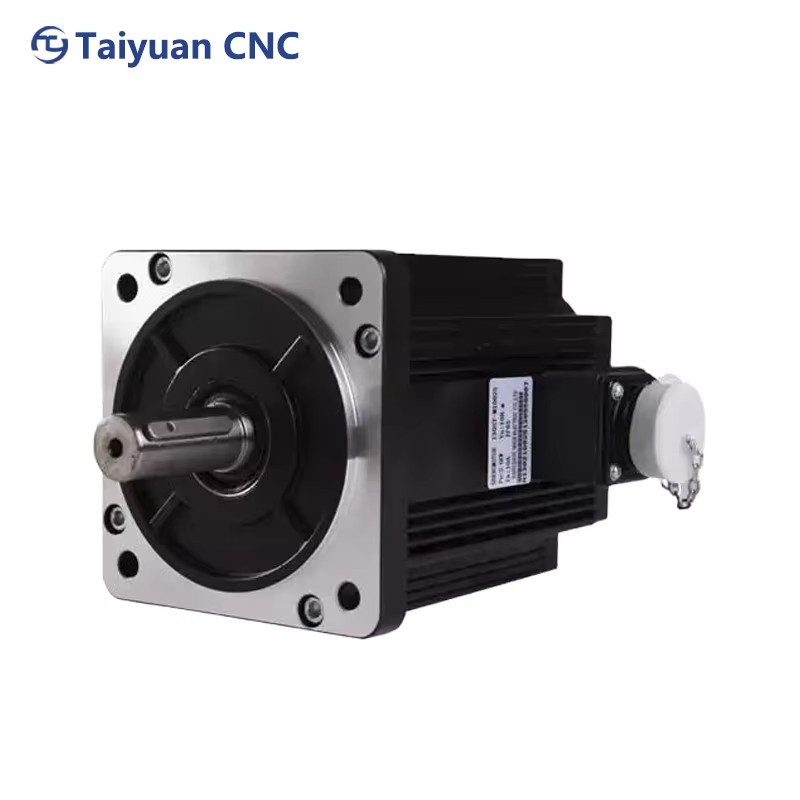

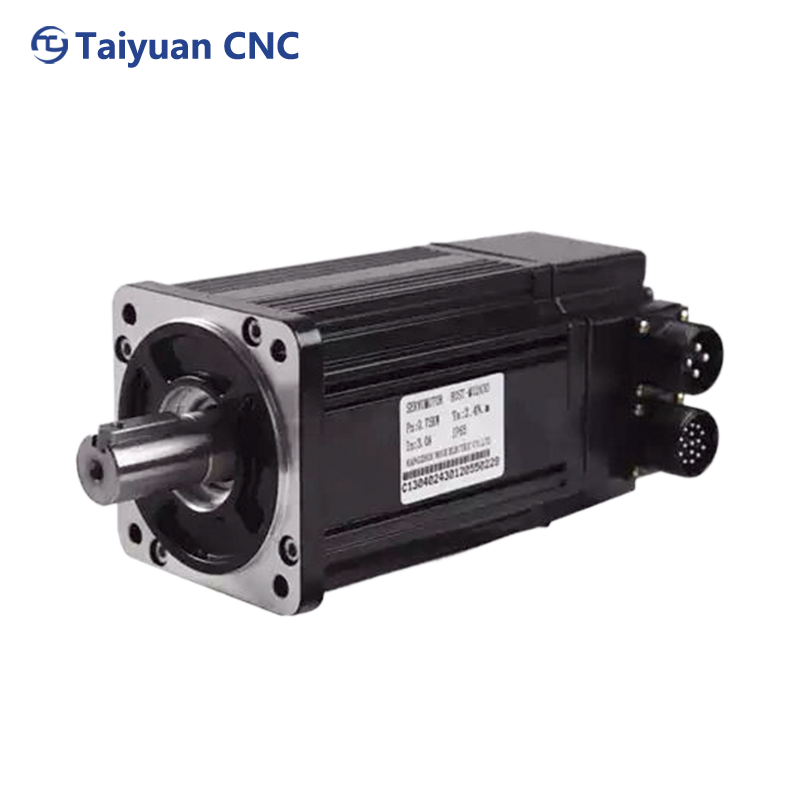

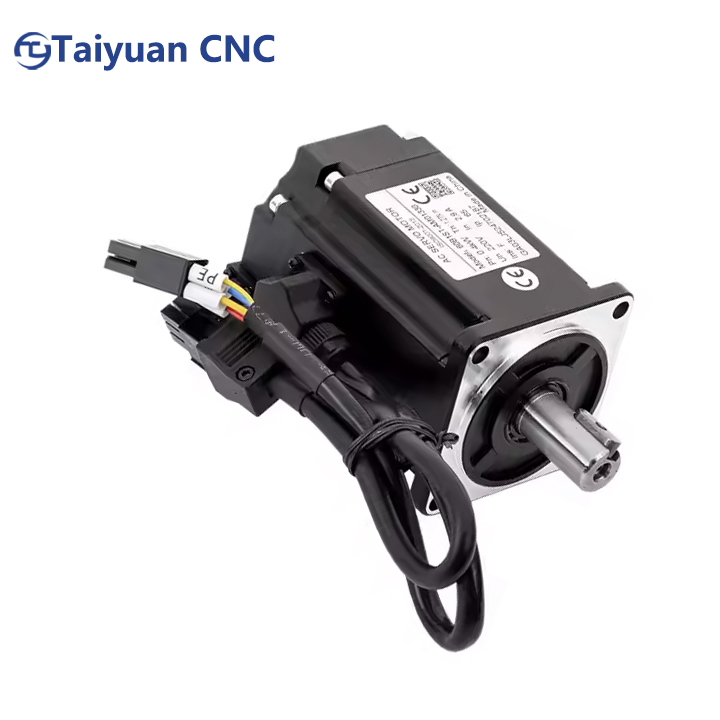

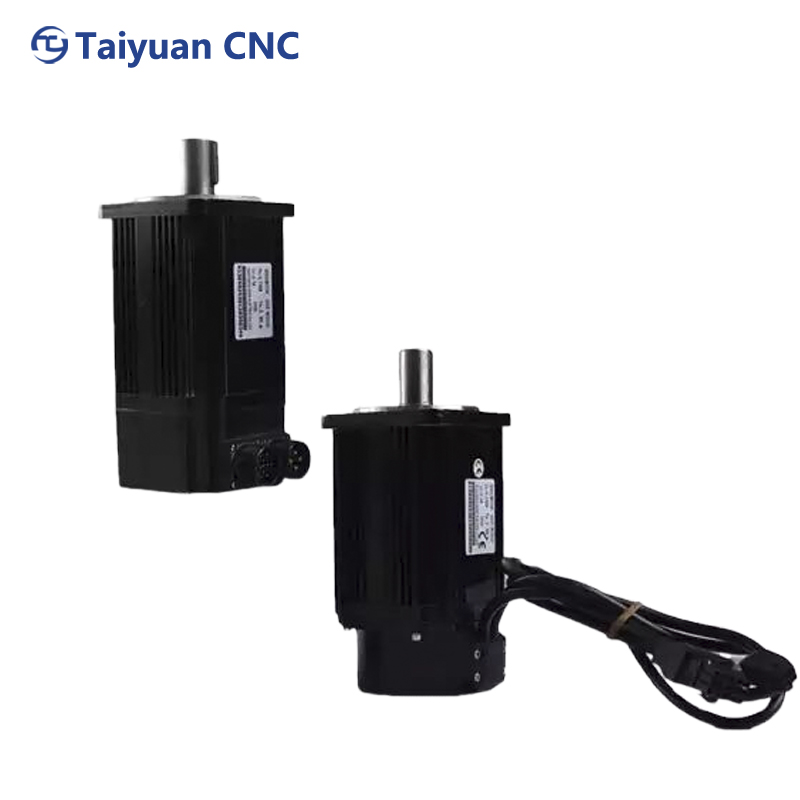

Compact Servo Motor 1:5 Ratio Gearbox for Industrial Automation Equipment

Model：90-M03520

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	90-M03520
Rated power(Kw)	0.73
Rated voltage(v)	220
Rated current(A)	3
Rated speed(rpm)	2000
Rated torque(N.m)	3.5
Peak torque(N.m)	10.5
Voltage constant(V/1000r/min)	67
Torgue coefficient(N.m/A)	1.2
Rotor inertia(Kg.M2)	3.4*0.0001
LINE-LINE RESISTANCE (Q)	3.9
LINE-LINE INDUCTANCE (mH)	8.6
ELECTRICAL TIME-CONSTANT (MS)	2.2
Weight(kg)	3.9
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing

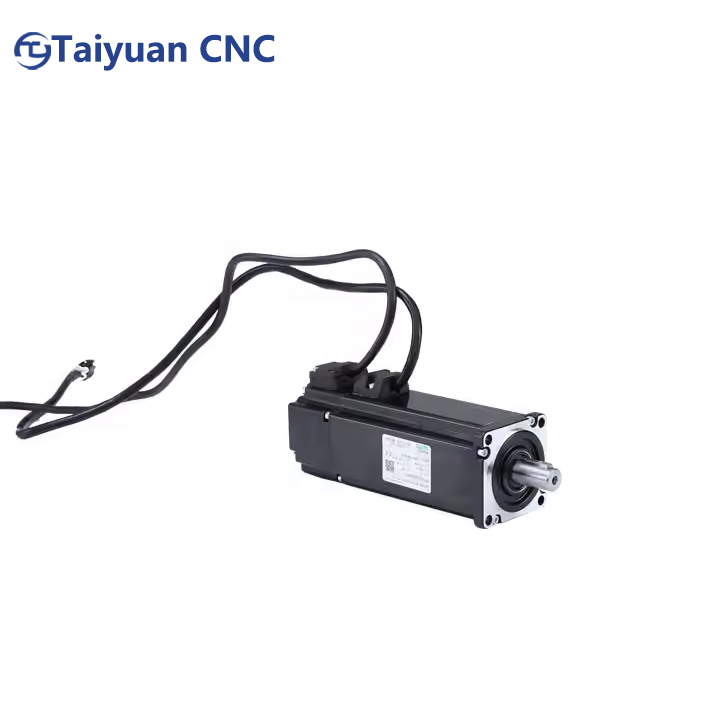

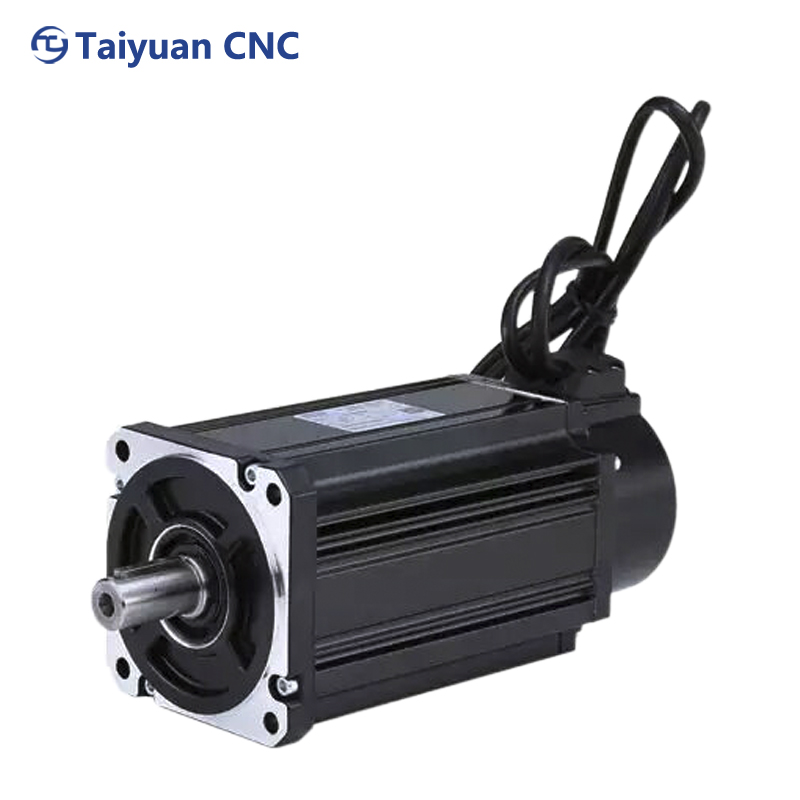

详情图片_05.jpg Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

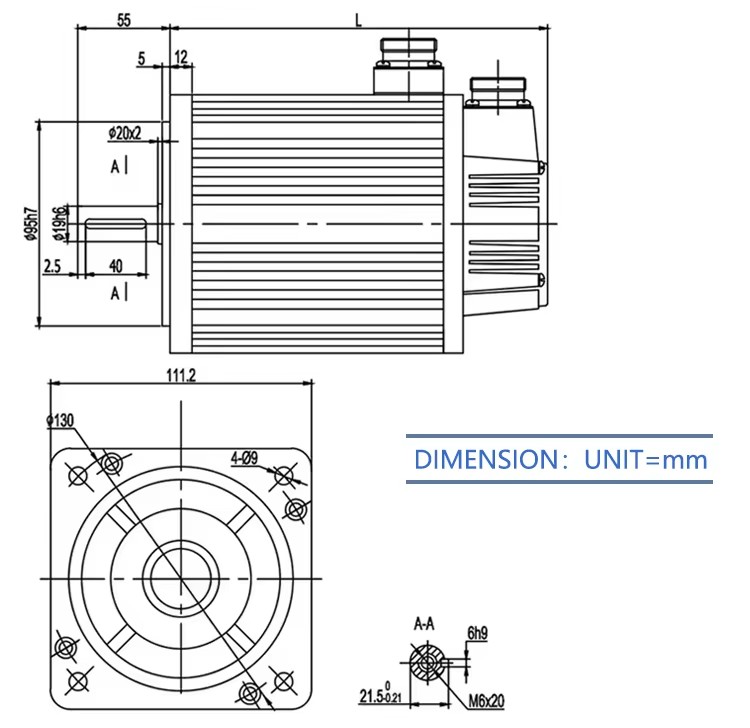

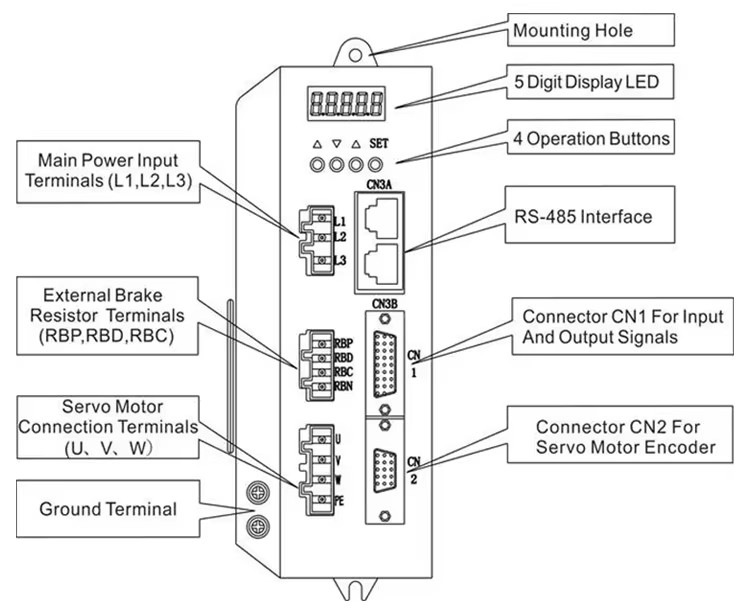

详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg 详情图片_15.jpg
