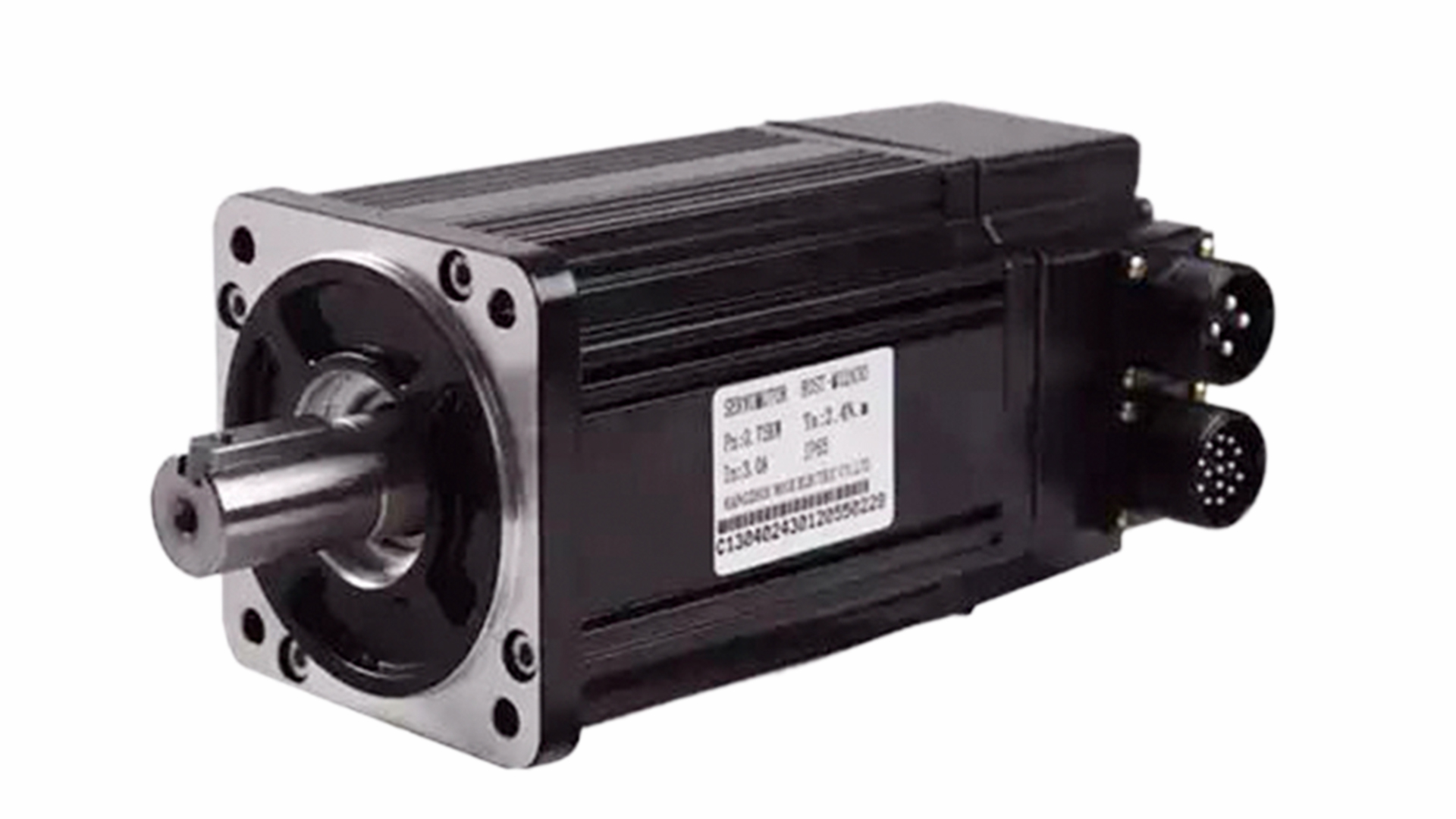

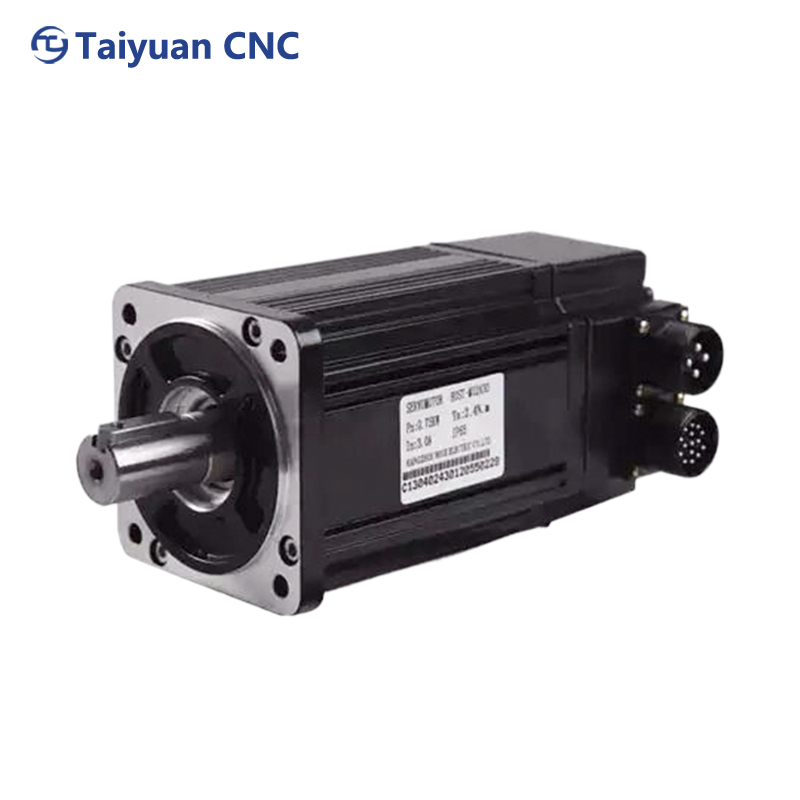

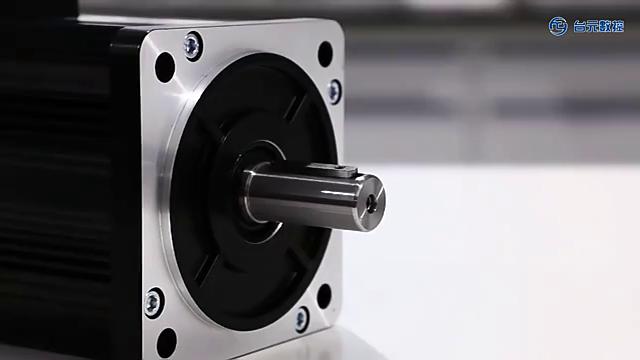

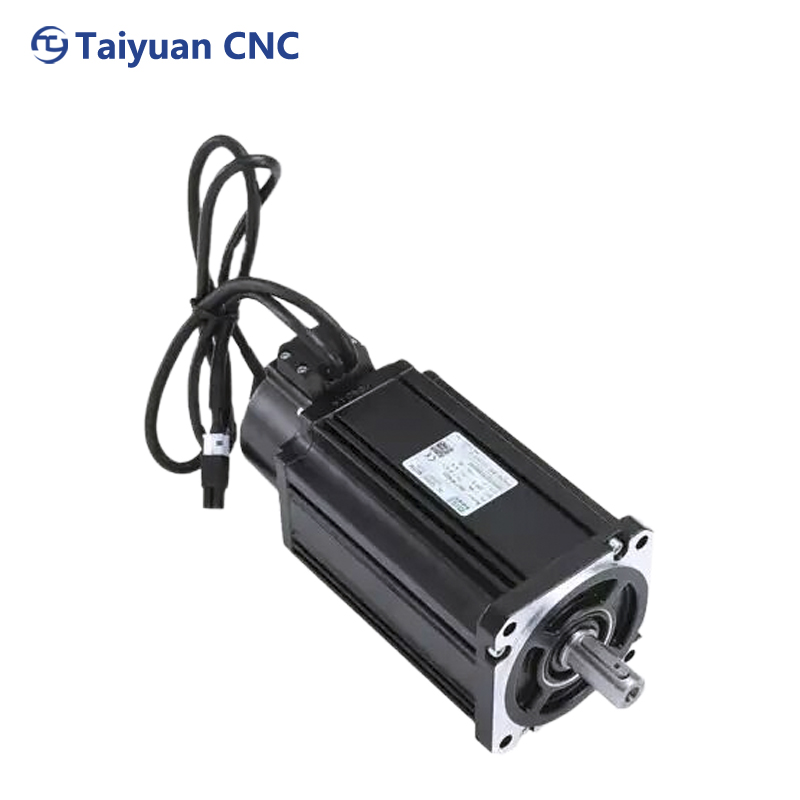

Premium Torque Control 750W Brushless Servo Motor 80mm with Brake for CNC Machinery

Model：80-M02430

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	80-M02430
Rated power(Kw)	0.4
Rated voltage(v)	220
Rated current(A)	2
Rated speed(rpm)	3000
Rated torque(N.m)	1.27
Peak torque(N.m)	3.81
Voltage constant(V/1000r/min)	31
Torgue coefficient(N.m/A)	0.48
Rotor inertia(Kg.M2)	0.407*0.0001
LINE-LINE RESISTANCE (Q)	3.8
LINE-LINE INDUCTANCE (mH)	19.2
ELECTRICAL TIME-CONSTANT (MS)	5.05
Weight(kg)	1.6
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing

详情图片_05.jpg Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_13.jpg 详情图片_12.jpg 详情图片_14.jpg 详情图片_15.jpg
