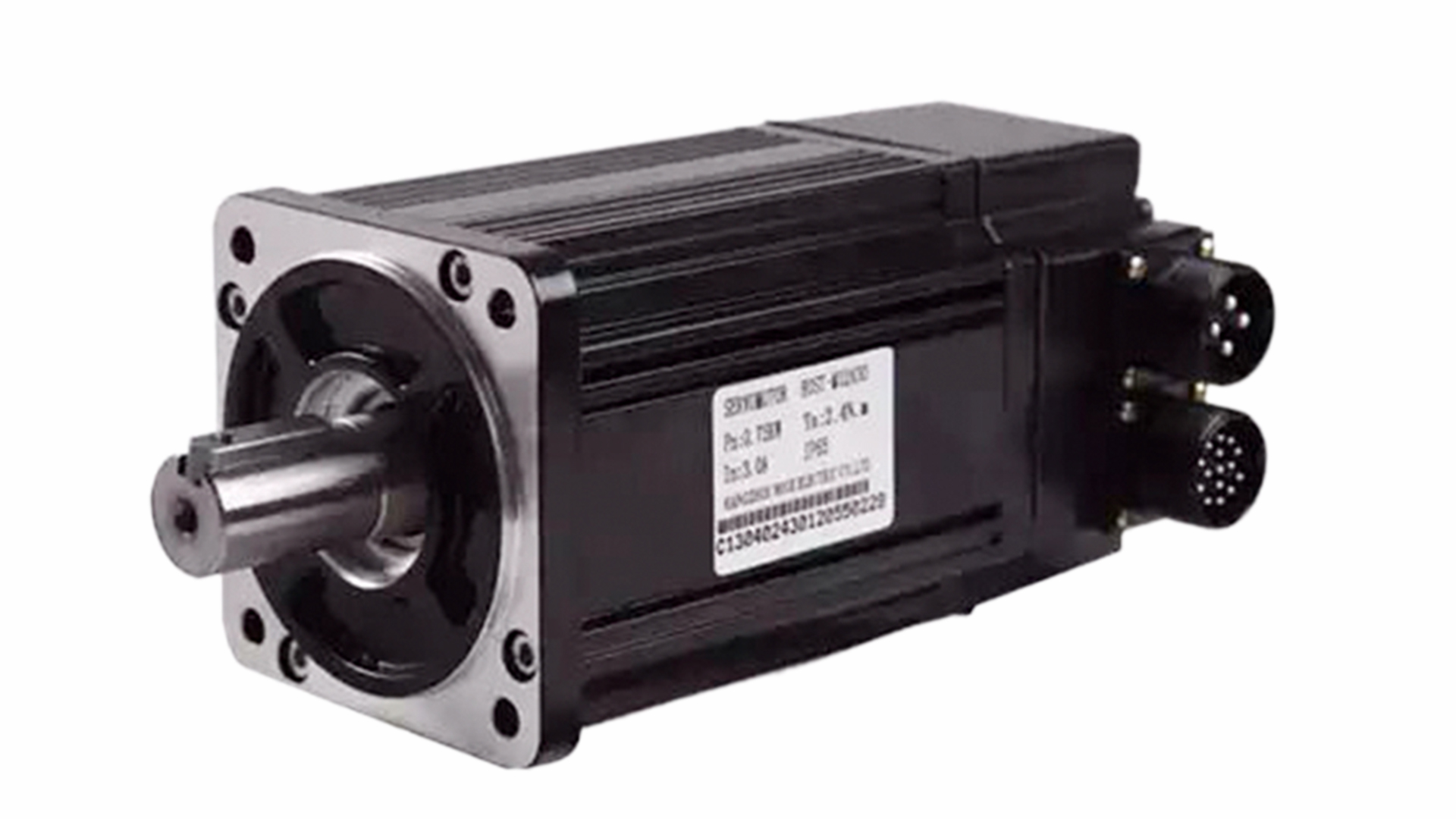

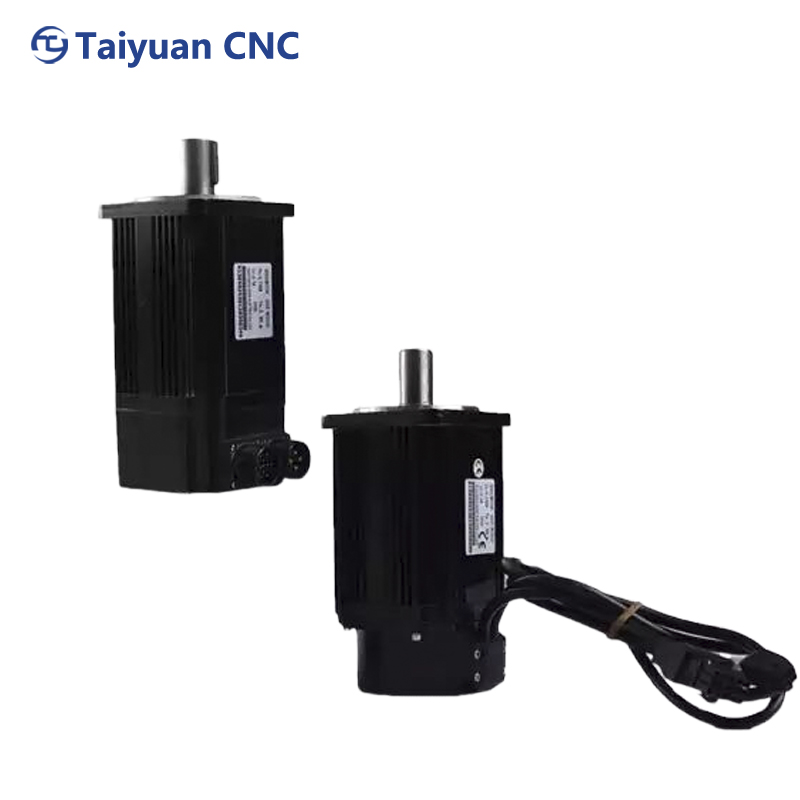

High Torque Waterproof AC Servo Motor 80 Series for CNC Sewing Machine Automation

Model：80-M04025

Reservation Now

Consult immediately

QR code

Detail

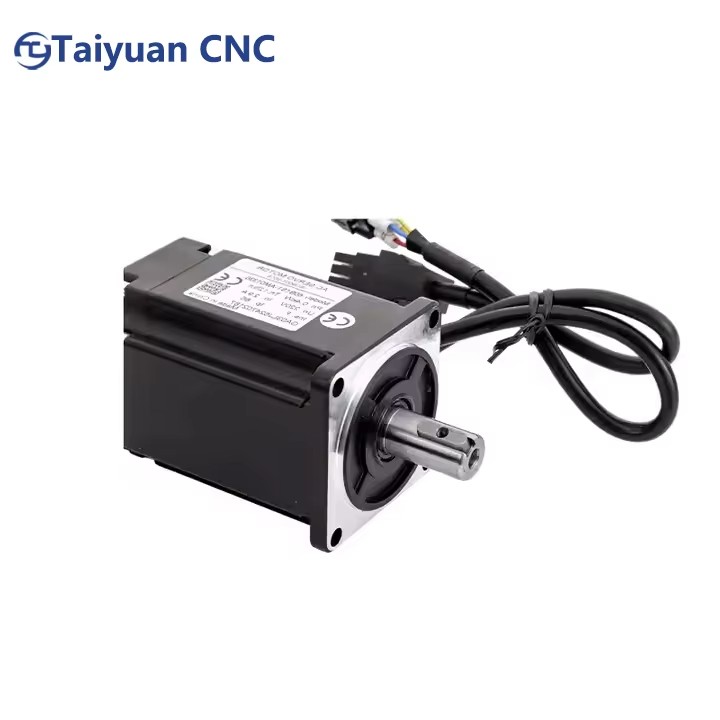

详情图片_02.jpg 详情图片_04.jpg

Motor model	80-M04025
Rated power(Kw)	1.0
Rated voltage(v)	220
Rated current(A)	4.4
Rated speed(rpm)	3000
Rated torque(N.m)	4
Peak torque(N.m)	12
Voltage constant(V/1000r/min)	54
Torgue coefficient(N.m/A)	0.9
Rotor inertia(Kg.M2)	2.97*0.0001
LINE-LINE RESISTANCE (Q)	2.3
LINE-LINE INDUCTANCE (mH)	4.8
ELECTRICAL TIME-CONSTANT (MS)	2.09
Weight(kg)	4.1
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing

详情图片_05.jpg Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

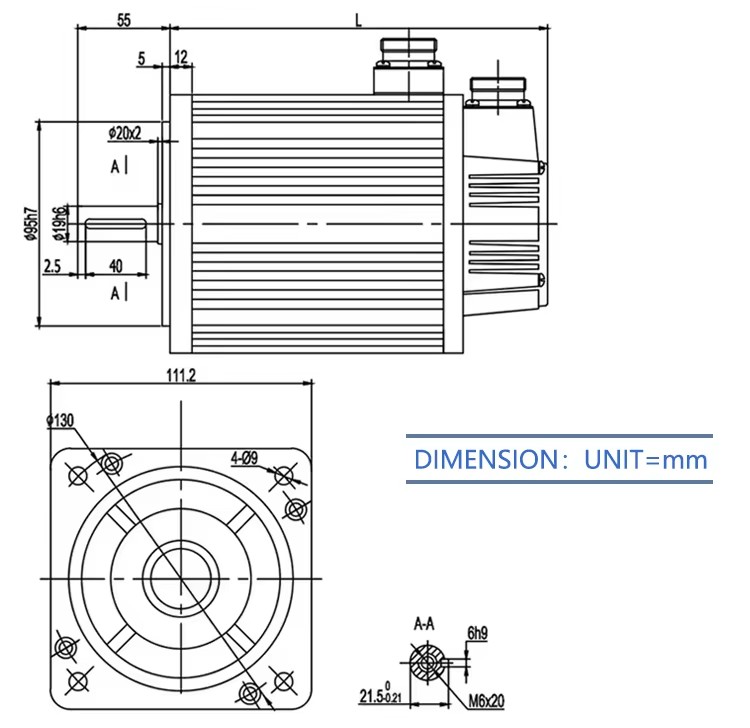

详情图片_06.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg 详情图片_15.jpg 详情图片_03.jpg 详情图片_07.jpg 详情图片_01.jpg
