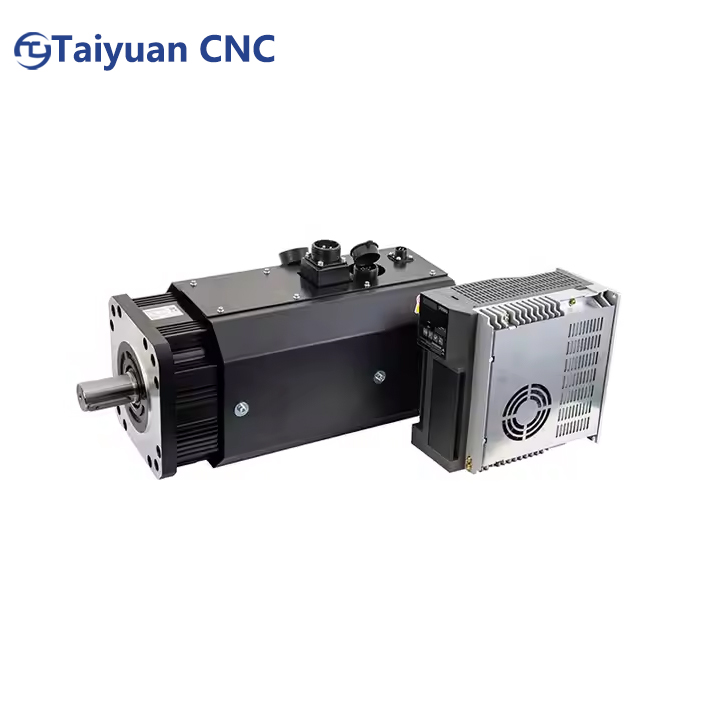

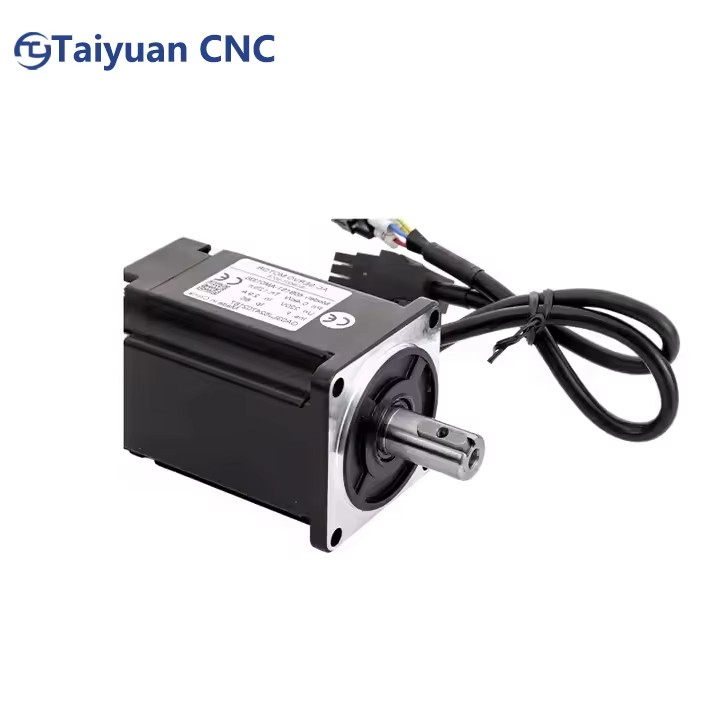

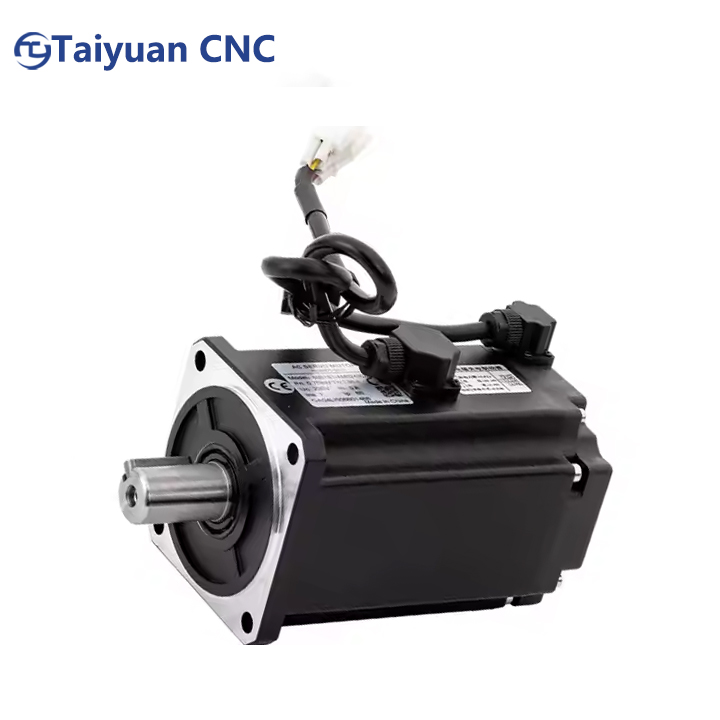

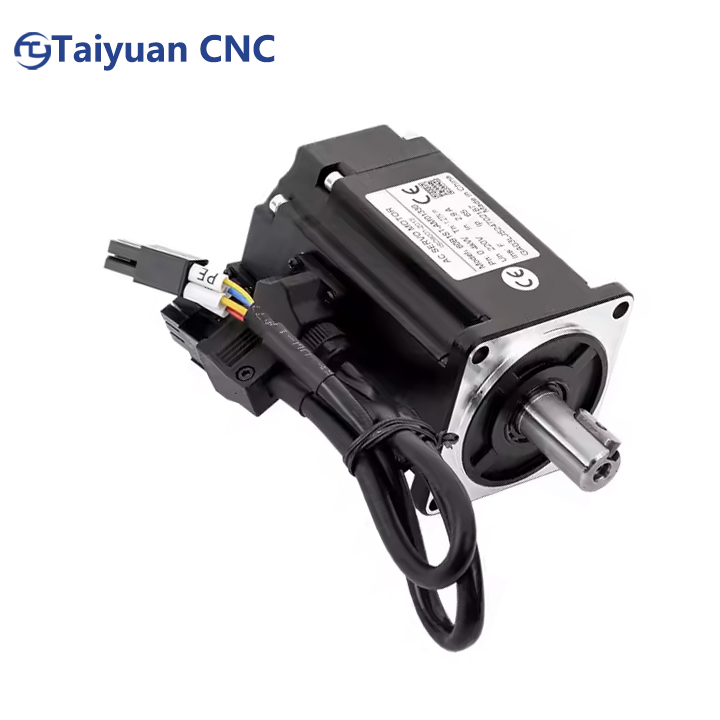

Durable 600W 3000rpm AC Servo Motor Synchronous Type for Automation Systems

Model：60-M01930

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg 详情图片_04.jpg

Motor model	60-M01930
Rated power(Kw)	0.6
Rated voltage(v)	220
Rated current(A)	3.1
Rated speed(rpm)	3000
Rated torque(N.m)	1.91
Peak torque(N.m)	5.7
Voltage constant(V/1000r/min)	38
Torgue coefficient(N.m/A)	0.61
Rotor inertia(Kg.M2)	0.526*0.0001
LINE-LINE RESISTANCE (Q)	3.7
LINE-LINE INDUCTANCE (mH)	26.4
ELECTRICAL TIME-CONSTANT (MS)	7.1
Weight(kg)	2.0
Encoder line number(PPR)	2500
Insulation class	F
Safety class	IP65
The operating of Evironmental Conditions	Temperature:-20~+40 HumidityBelow 90%RH No dewing

详情图片_05.jpg Servo motor with gearbox has a very compact structure and attractive appearance.

The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.

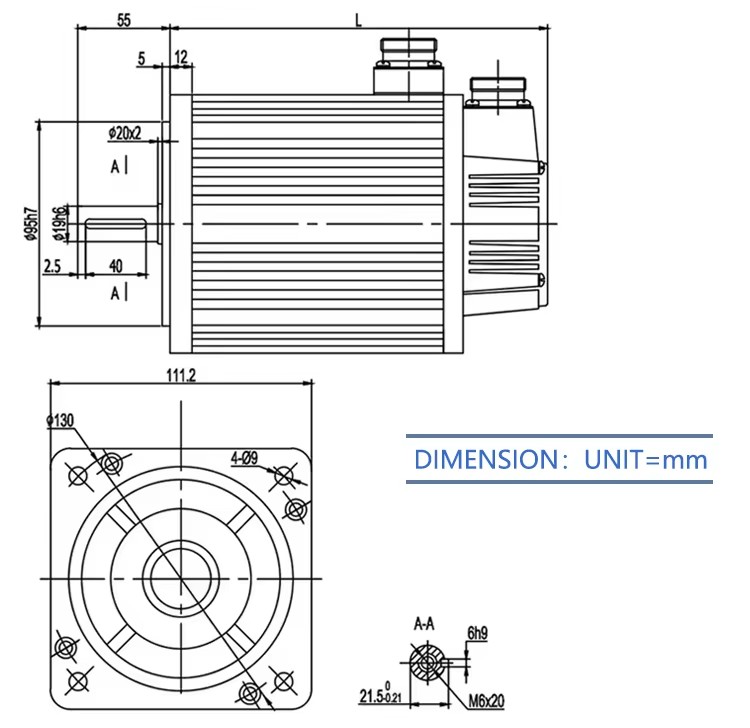

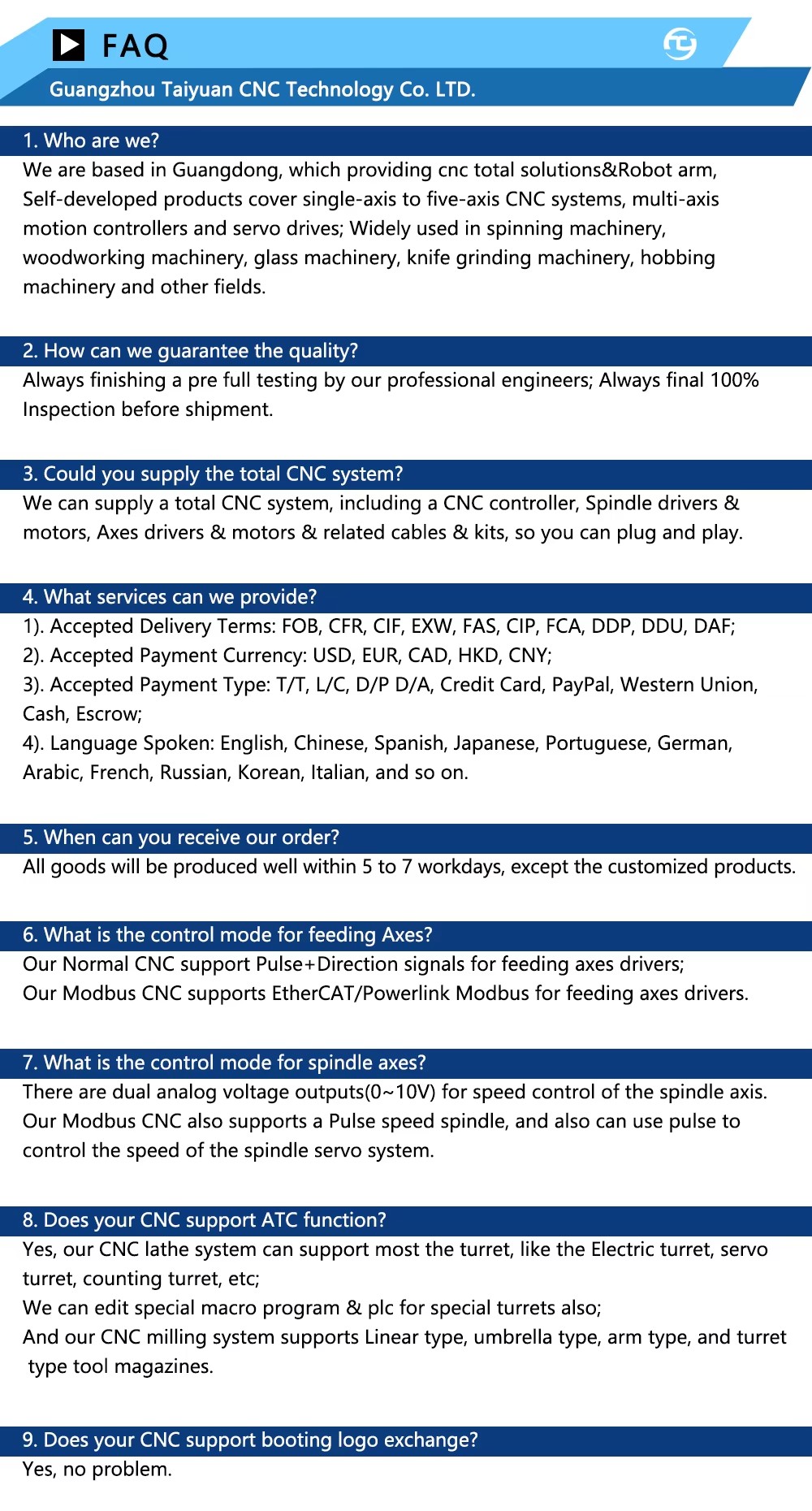

详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg 详情图片_15.jpg
