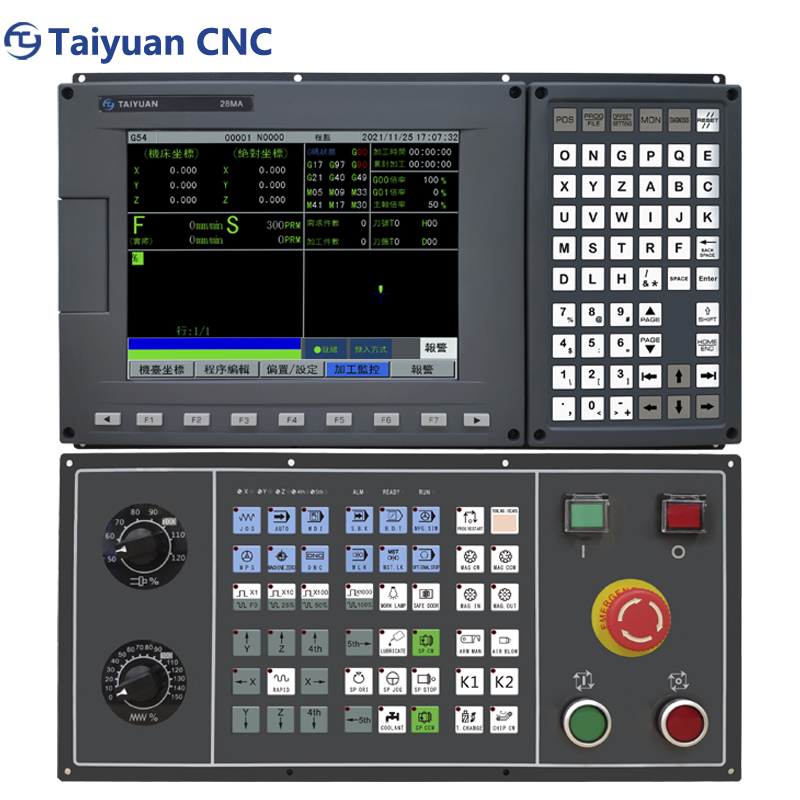

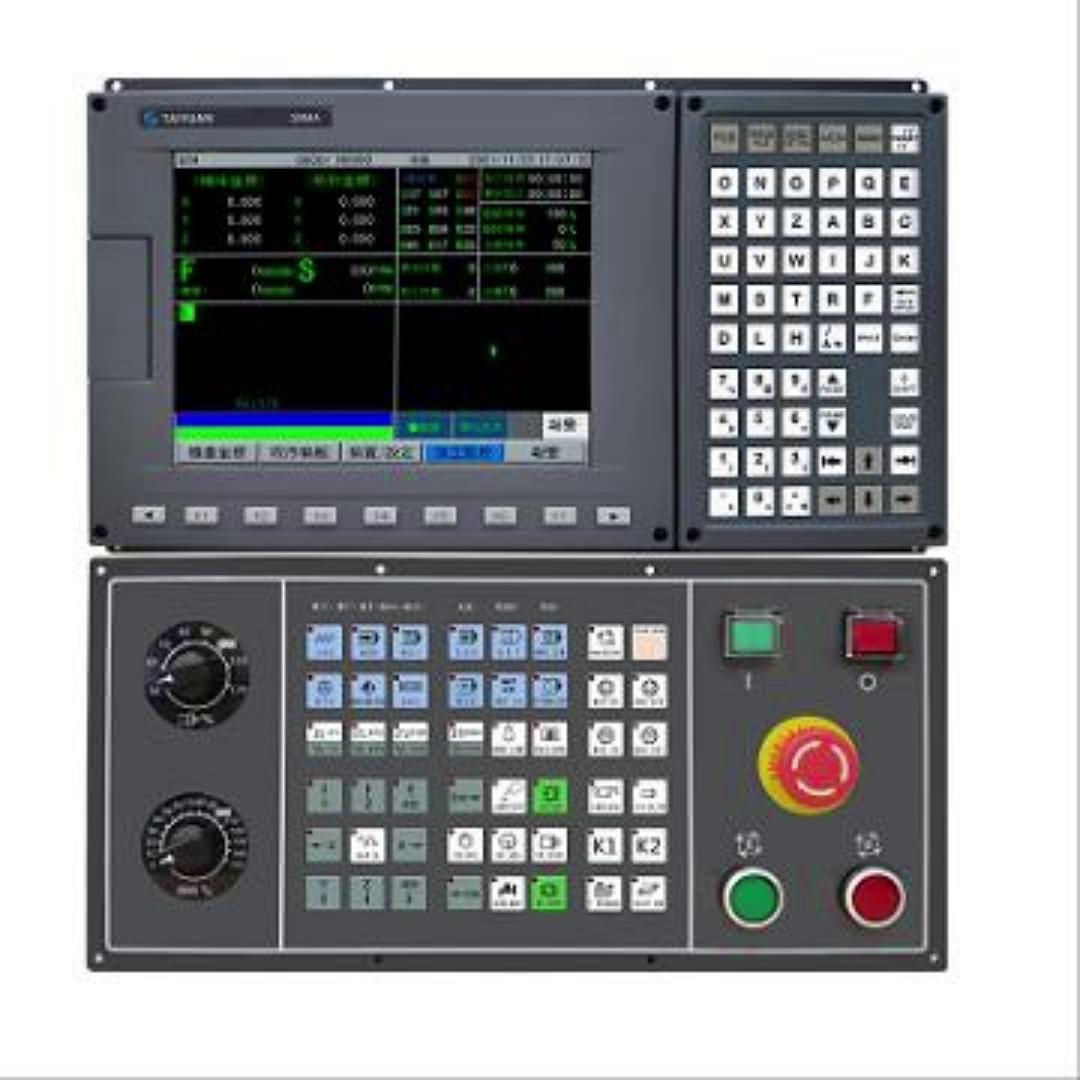

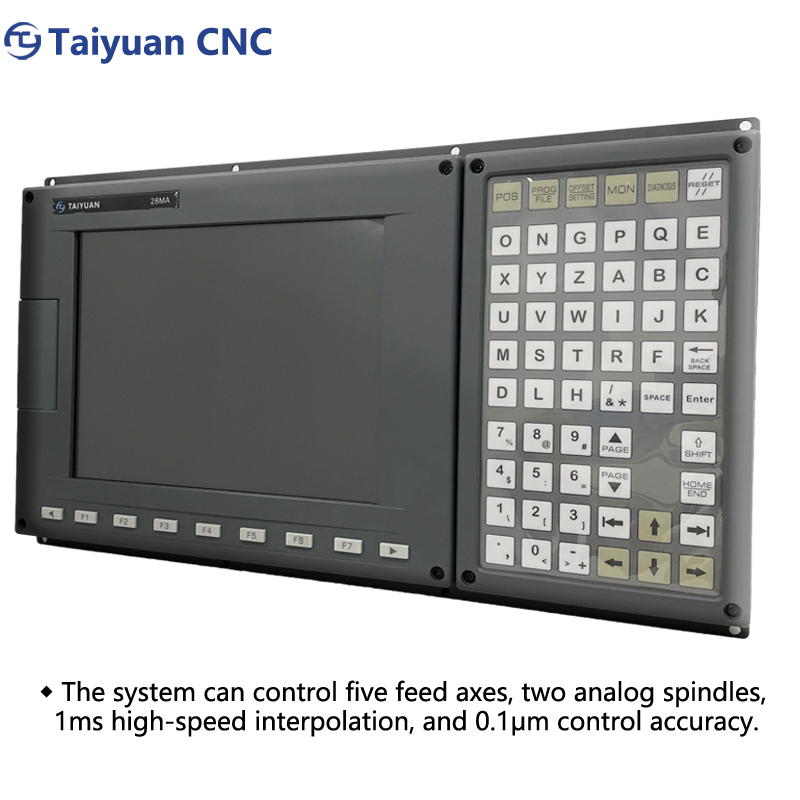

| 3-5 axis full English CNC milling controller |
| 800x600, 10.4-inch true color LCD monitor |
| |
| row tool magazine, bucket-type tool magazine, disc-type tool magazine, turret-type tool magazine, servo hat-type tool magazine |
| ATC, macro function, PLC function |
Connect the motor control mode (pulse/analog) | supports analog and pulse control, pulse control: 1MHz, lμm pulse, 5V signal |
| spindle positioning, rigid tapping, spindle tapping |
| high anti-interference, 220VAC ->24VDC&5V |
| 128MB memory, 100Mb user storage space |
| |
| 2 channels of 0~10V analog voltage output, 1 channel of spindle encoder feedback |
| |
| 32 inputs/32 outputs, PLC online display, monitoring and design |
| Tool length compensation (tool offset): 256 groups Tool nose radius compensation (type C) |
Maximum number of linkage axes | maximum control of 5 feed axes and 5 axes linkage |
| Chinese and English menus, programs and interfaces, full-screen version |
| supports macro program/subprogram calling, allowing 4 levels of nesting |
| screw pitch compensation, backlash compensation |
| The system adopts Modbus485 protocol |
| CNC milling machines, drilling machines, grinders and other machinery and automation equipment |
| with rotation, scaling, polar coordinates, fixed cycle and various slot milling compound cycle functions |
