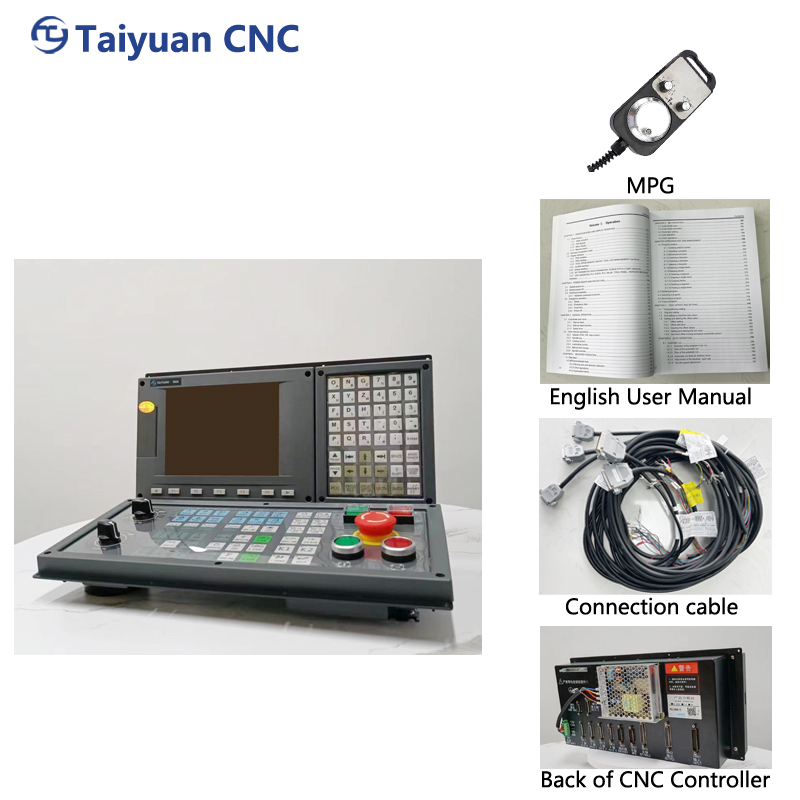

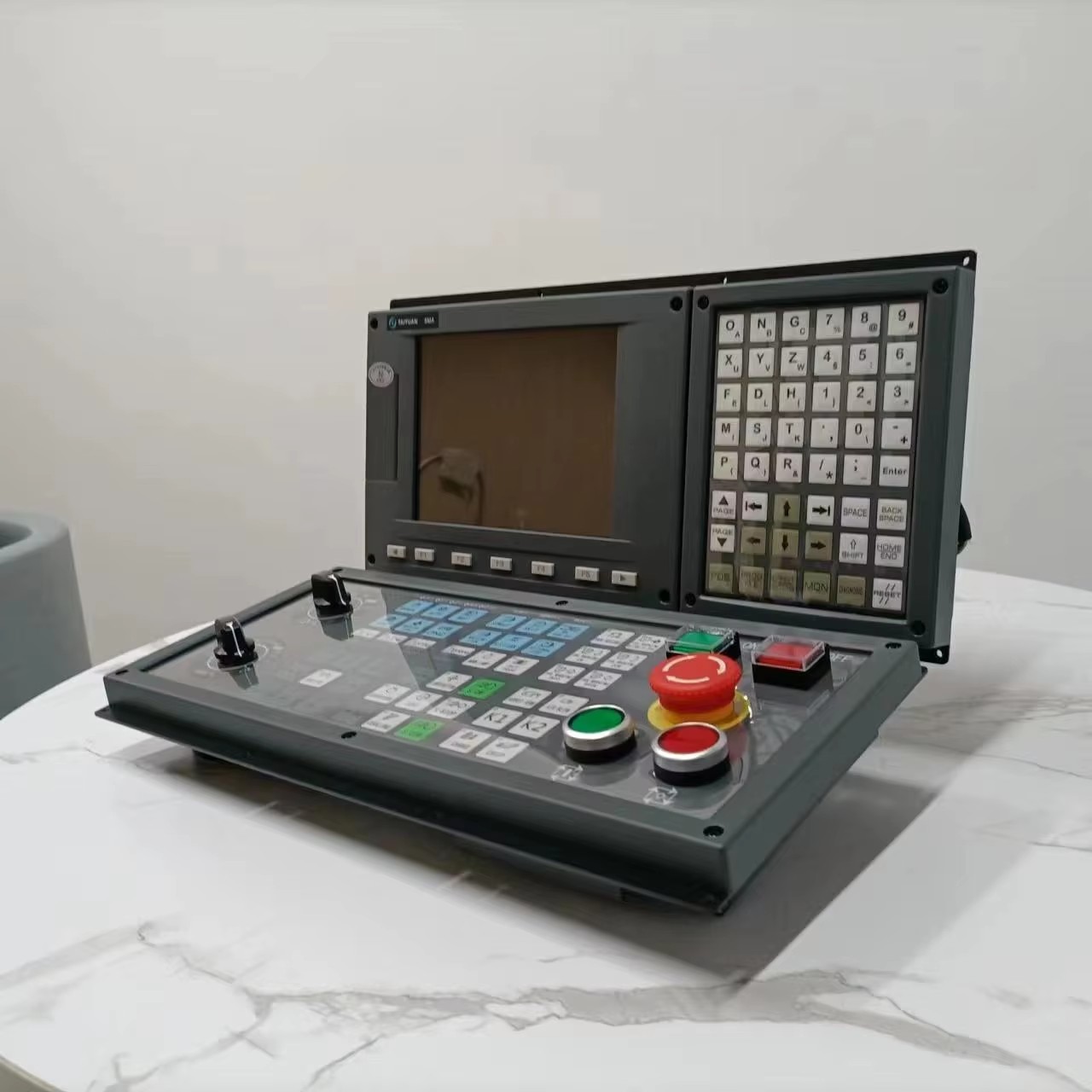

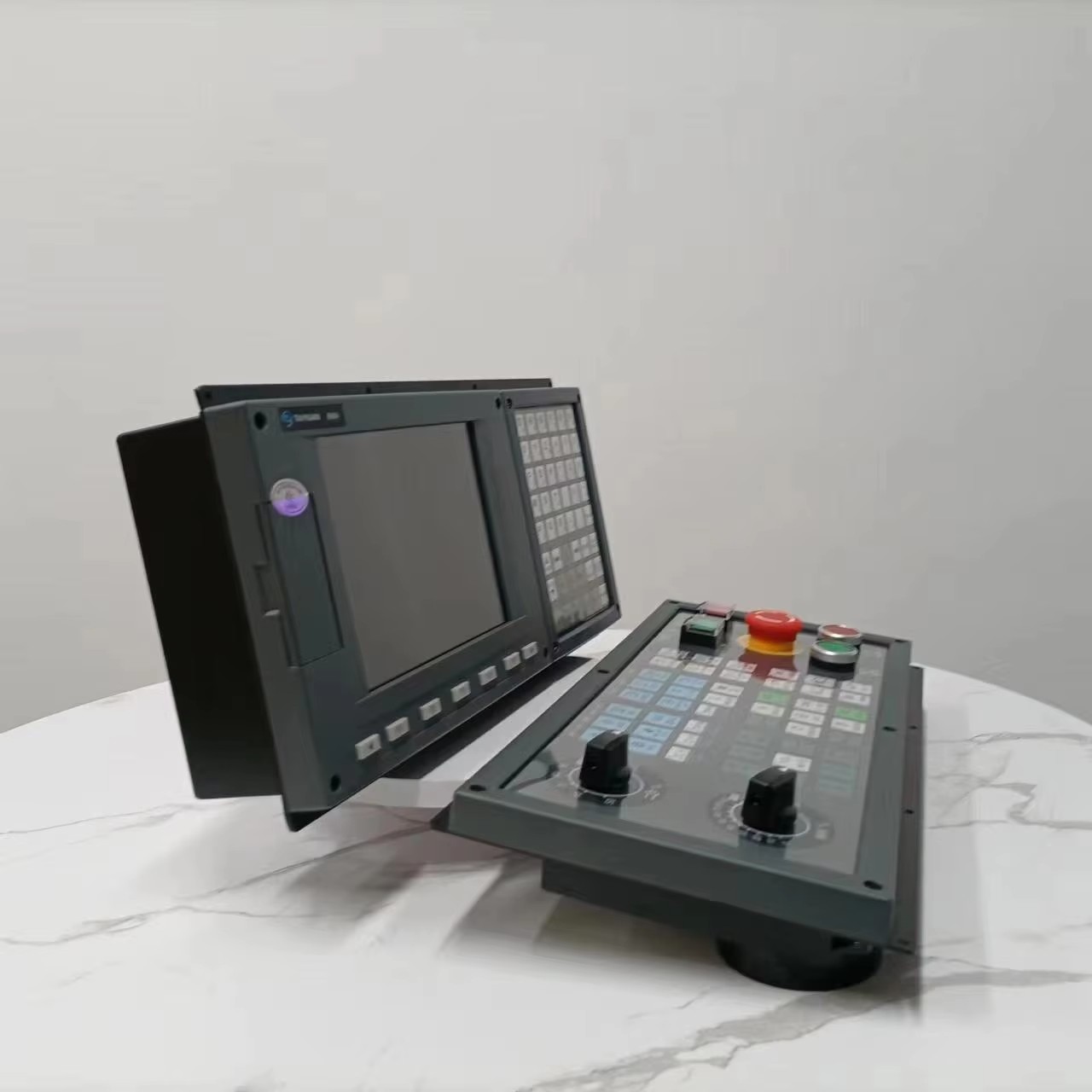

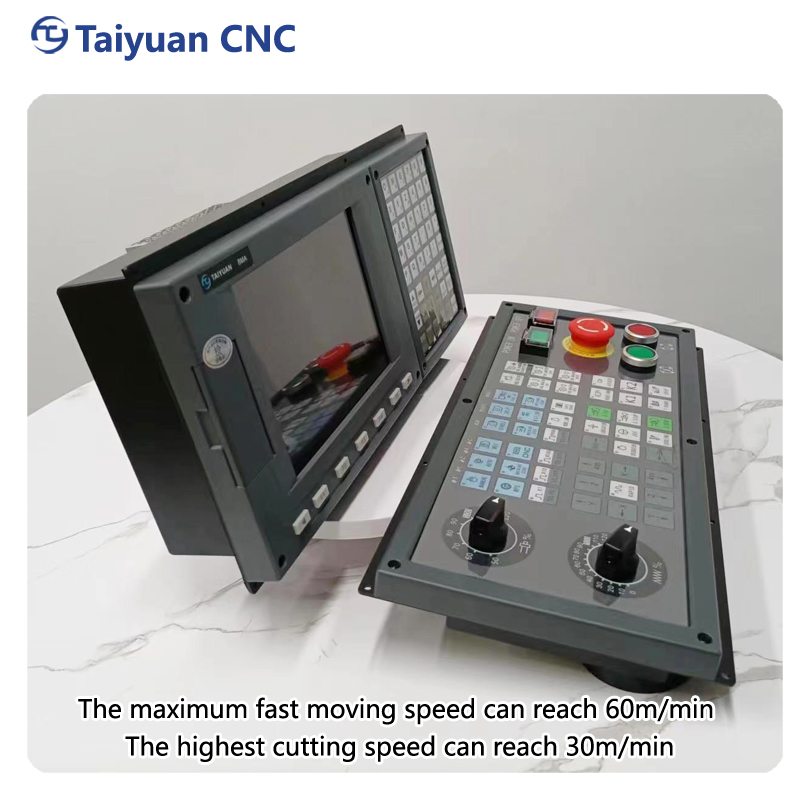

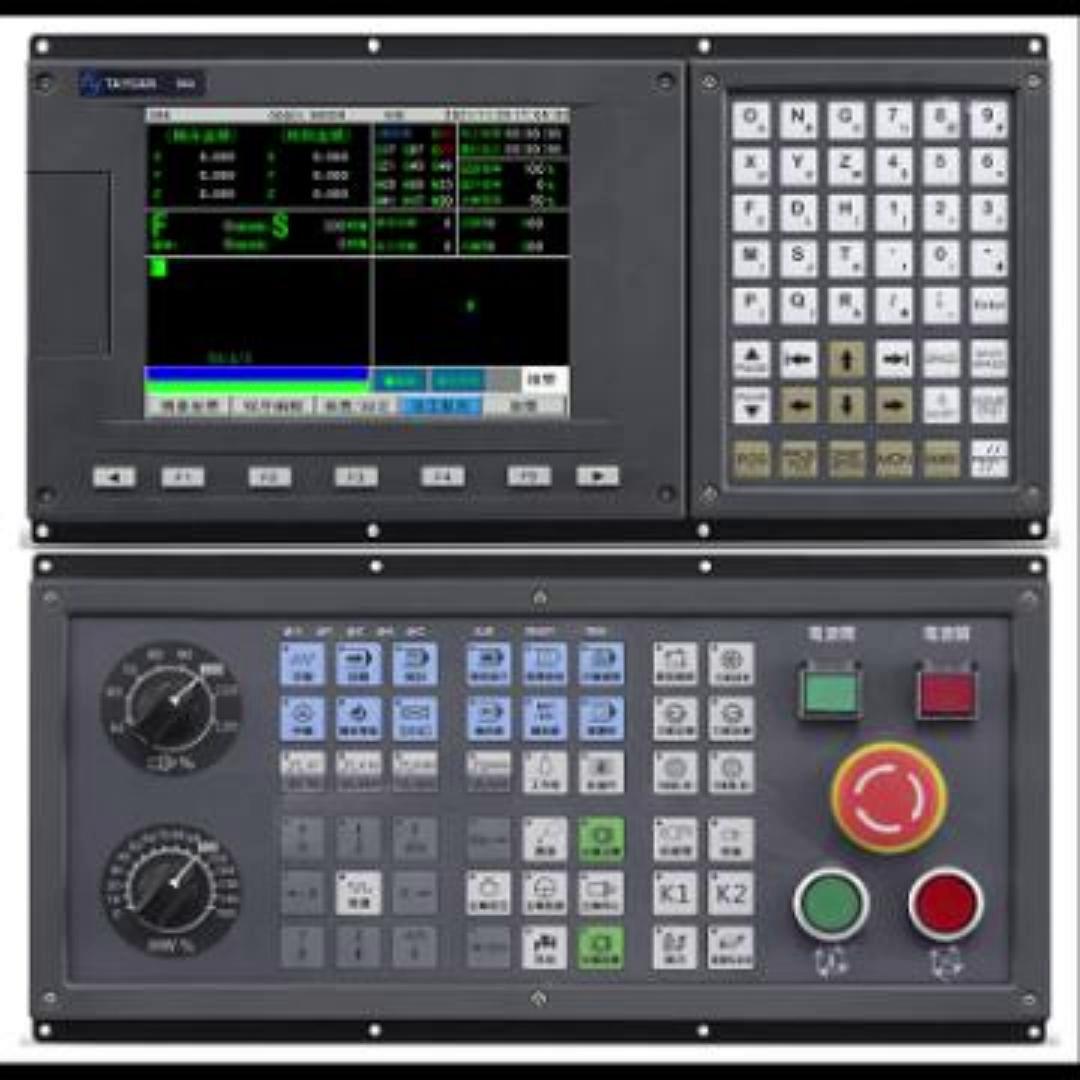

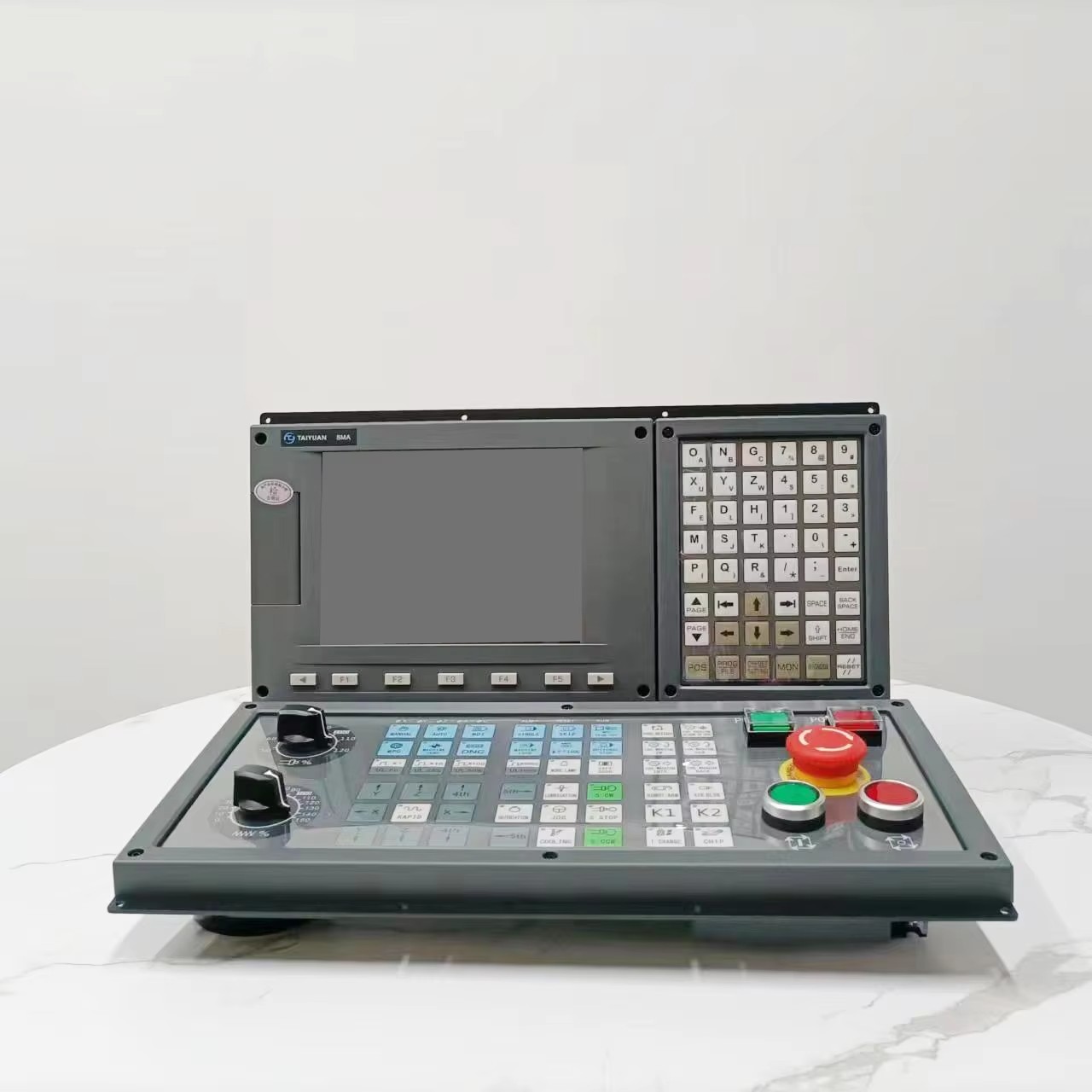

Popular Numerical Control System 8MA Mini Numerical Control Controller 3 Axis 4 Axis, Support PLC+AT

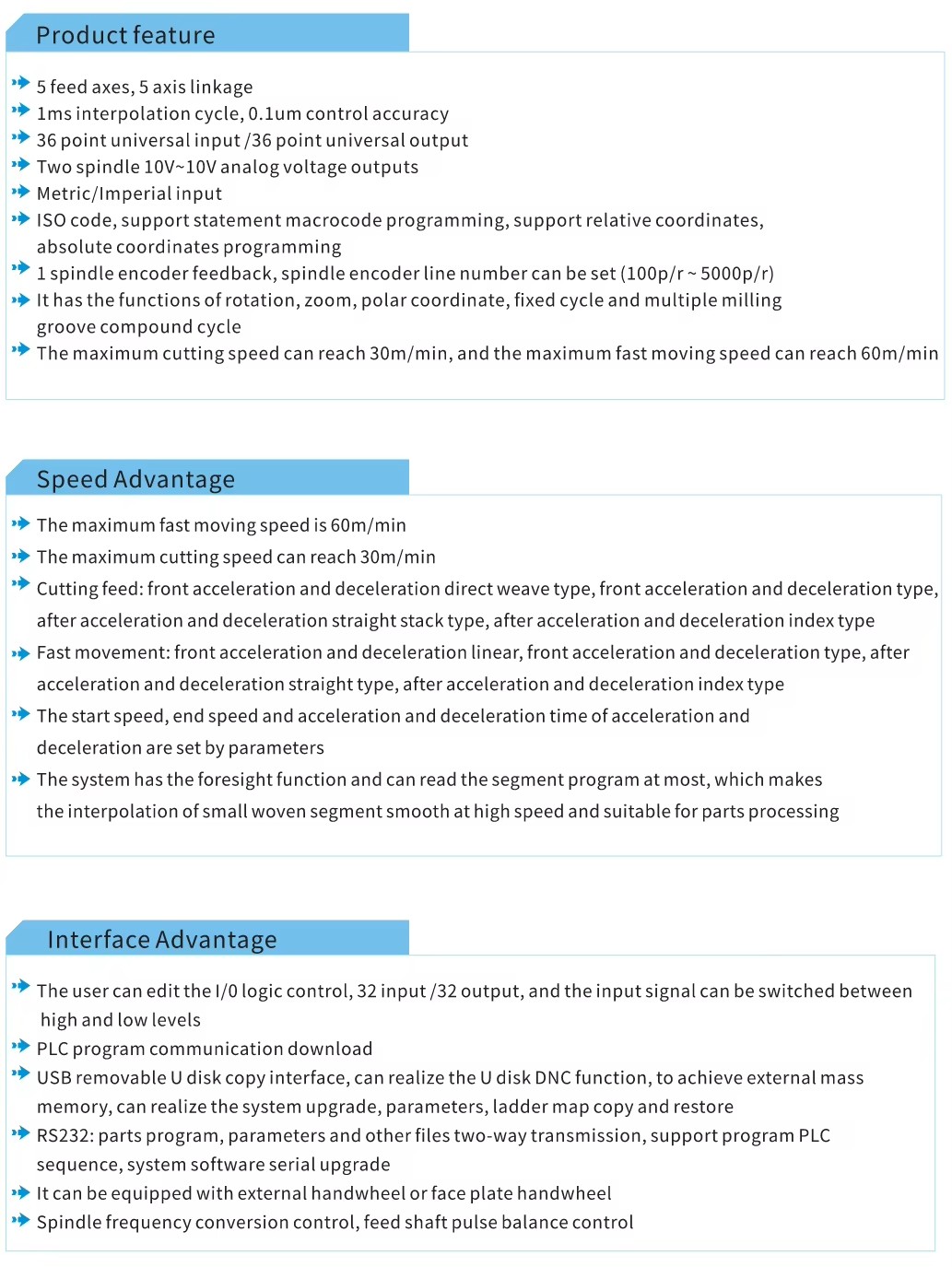

Product Characteristics

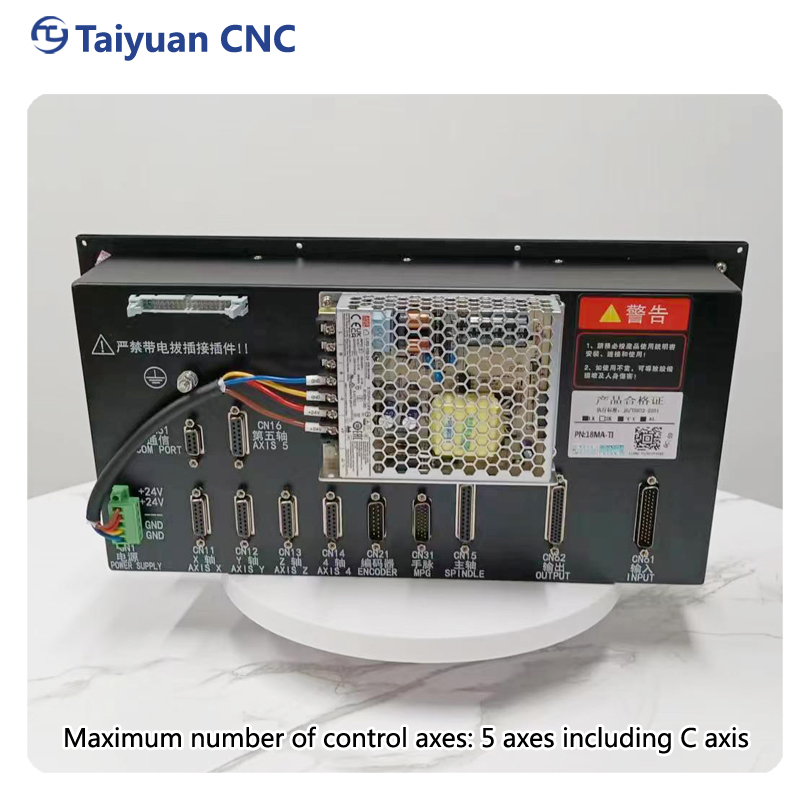

◆ Number of control axes: 5 feed axes, 2 analog spindles;

◆ Number of linkage axes: 5 axes

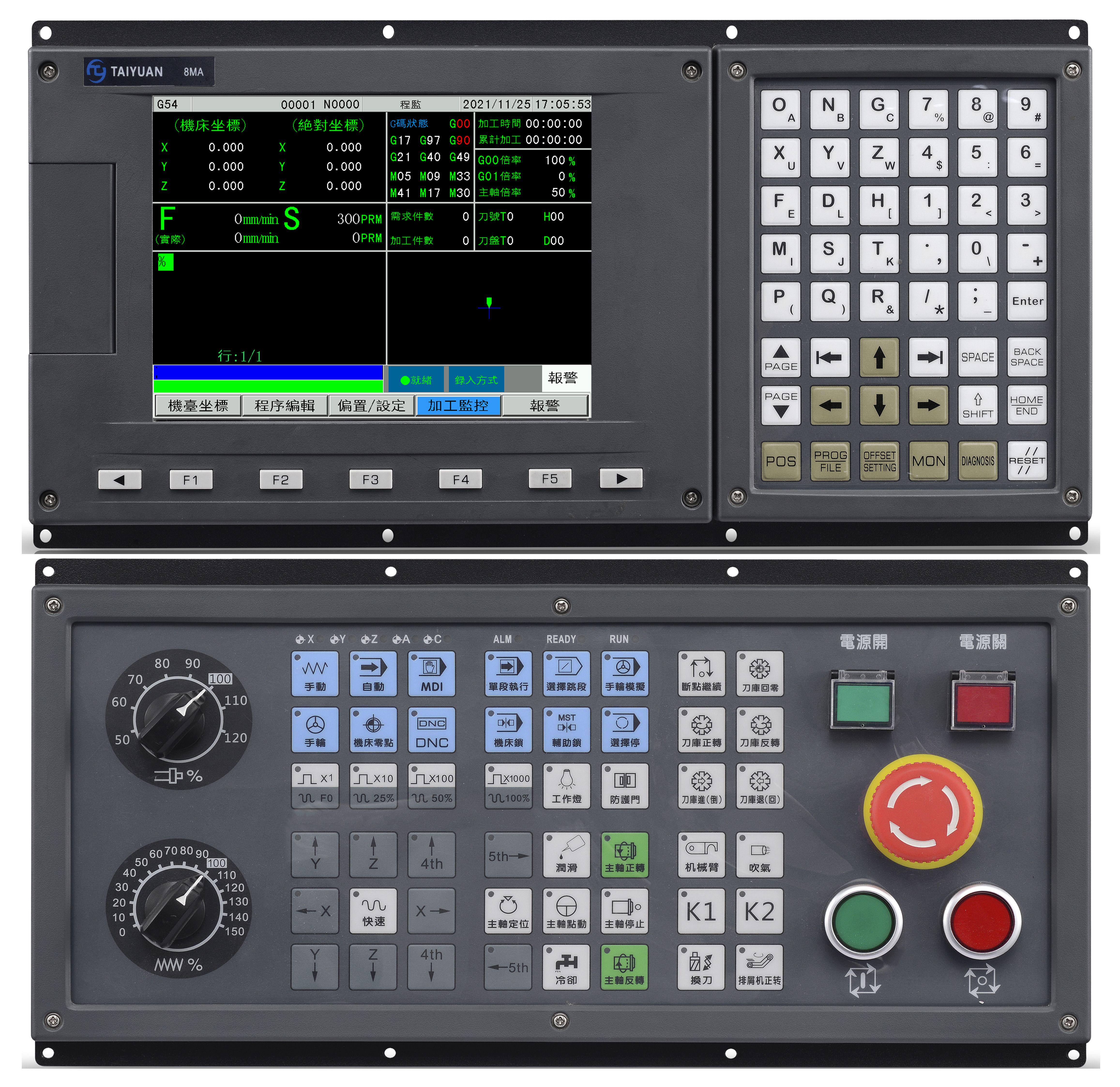

◆ 8.4-inch widescreen LCD with resolution of 800×480

◆ Adopt 32-bit high-performance CPU and large scale programmable device FPGA

◆ 56M user storage space

◆ Real-time comprehensive self-diagnosis function, real-time display of various states of the system

◆ Feed every minute, feed every turn

◆ Metric, imperial input

◆ Machine back reference point

◆ Fast rate: F0, 25%, 50%, 100% four real-time adjustment

◆ Feed rate: 0 ~ 150% a total of 16 real-time adjustments

◆ 1 spindle encoder feedback, spindle encoder line number can be set (100p/r ~ 5000p/r)

◆ Transmission ratio between encoder and spindle: (1 ~ 255) : (1 ~ 255)

◆ Spindle speed: can be set by S code or PLC signal, speed range 0r/min ~ 9999r/min

◆ Spindle ratio: 50% ~ 120%, a total of 8 levels of real-time repair

◆ Interpolation mode: linear interpolation, arc interpolation (support three-point arc interpolation), flexible tapping

◆ Automatic chamfering function

◆ Spindle constant linear speed control

◆ ISO code, support statement macro code programming, support relative coordinates, absolute coordinates and mixed coordinates programming

◆ Program call: Support macro program call with parameters, 4-level subroutine nesting

◆ With rotation, scaling, polar coordinates, fixed cycle and a variety of milling groove compound cycle work

◆ Each shaft independent reverse clearance compensation

◆ Pitch error compensation: compensation points, compensation interval, compensation origin can be set

◆ Tool radius compensation, tool length compensation, tool wear compensation, tool life management

◆ Tool deviation execution mode: modify coordinate mode, tool movement mode

◆ The maximum speed of each shaft, acceleration and deceleration are set independently

◆ Emergency stop, hardware travel limit, software travel check

◆ English page switch

◆ Display real-time time, processing number, processing time and other information

◆ All kinds of interpolation instruction functions and M, S, T functions

◆ Data backup and recovery, upgrade function
