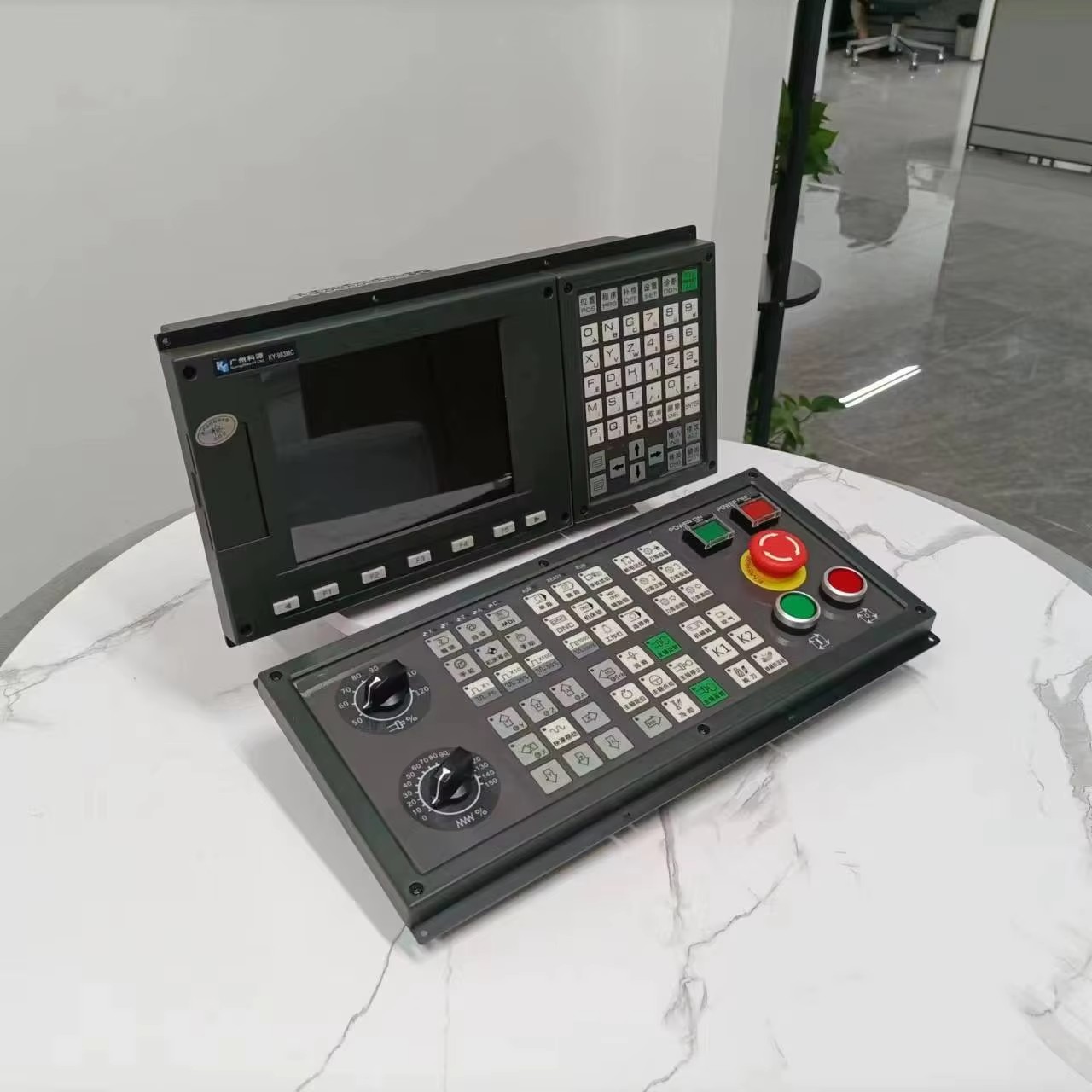

Multi Function 3 Axis CNC Router Kit with Ethernet Control for Industrial Machining

Model：983MC

Reservation Now

Consult immediately

QR code

Detail

详情图片_01.jpg 详情图片_02.jpg 详情图片_03.jpg

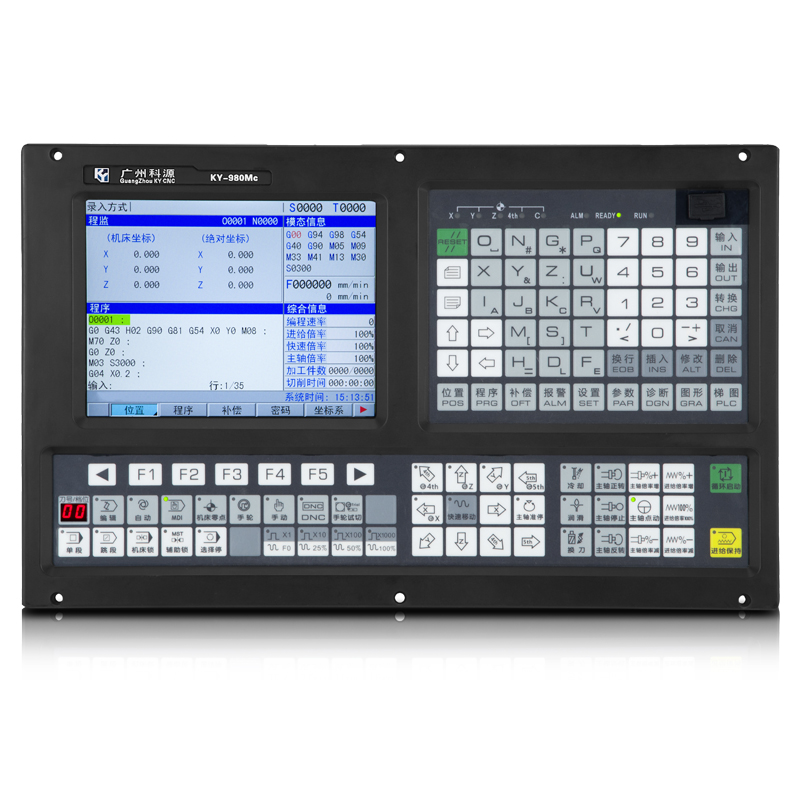

Type	2-3 axis full English CNC milling controller

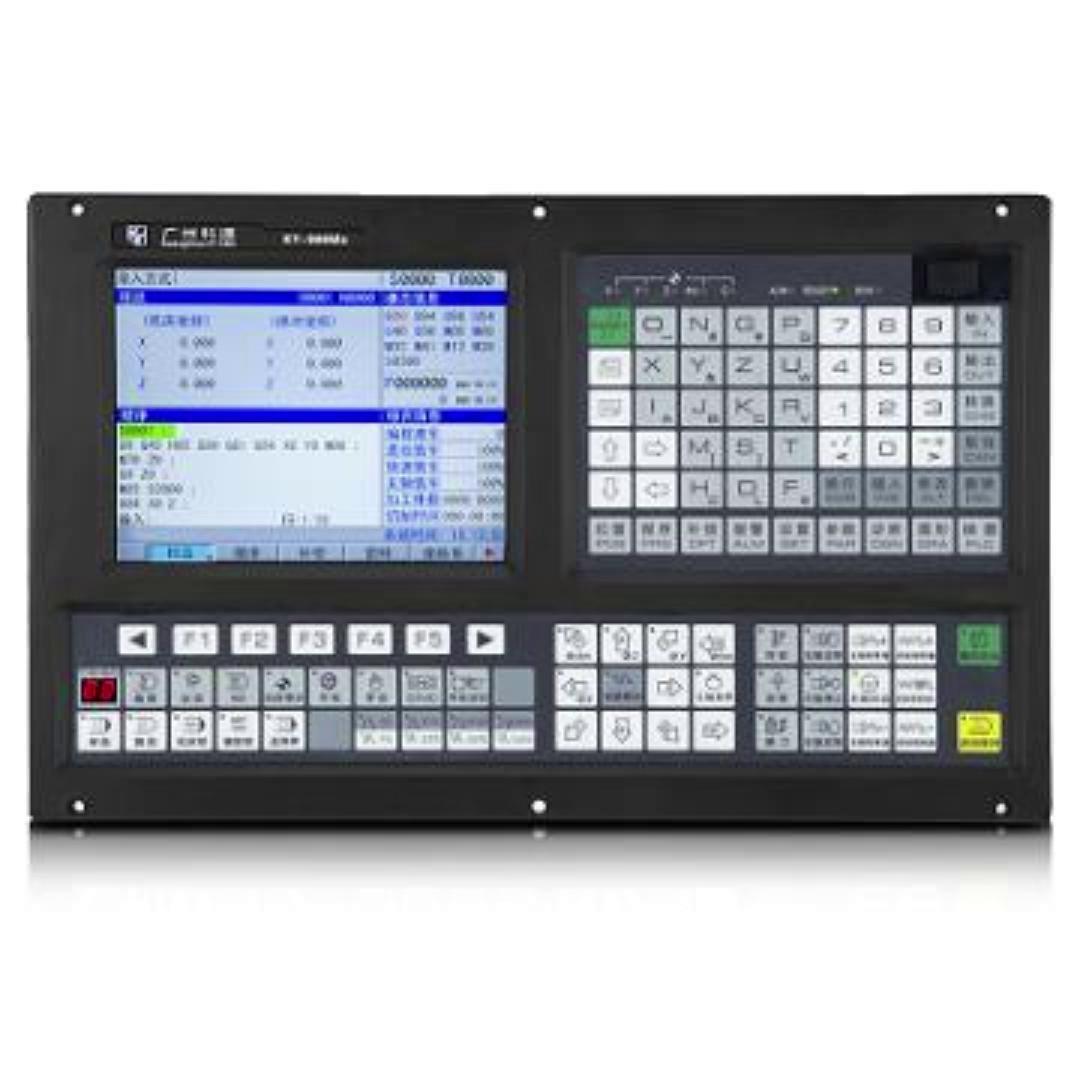

Monitor	800x480, 8-inch true color LCD monitor
Tool Tower	None
Tool magazine	supports tool arrangement
Function	ATC, macro function, PLC function
Connect the motor control mode (pulse/analog)	analog control
Tapping methods	spindle positioning, rigid tapping, spindle tapping

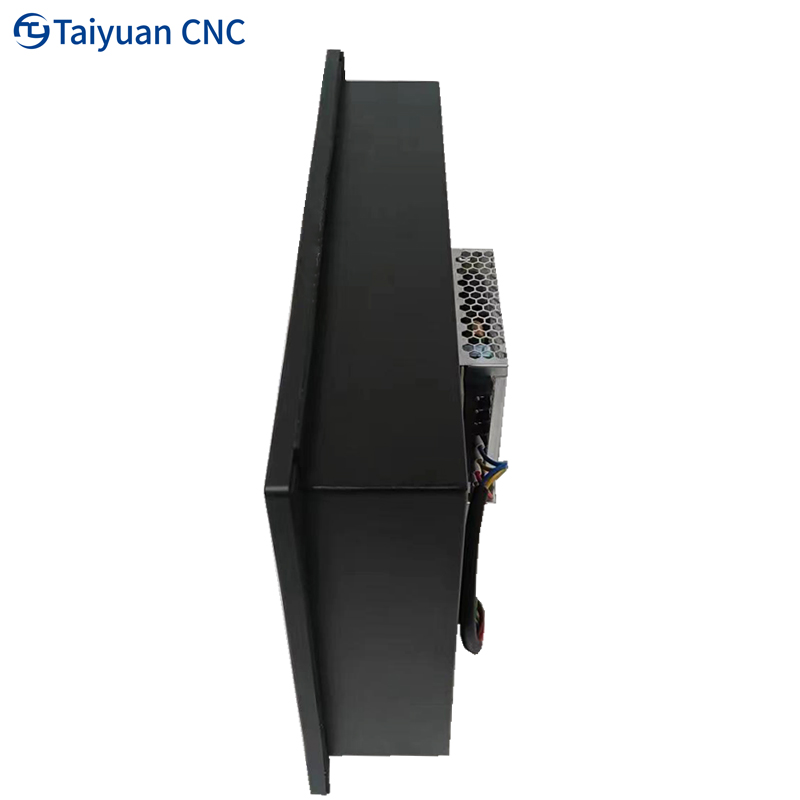

Switching power supply	high anti-interference, 220VAC ->24VDC&5V
Memory	128MB memory, 100Mb user storage space
Interface	USB, upgrade, copy
Spindle	1 channel 0~10V analog voltage output, 1 channel spindle encoder feedback
Position detection	None

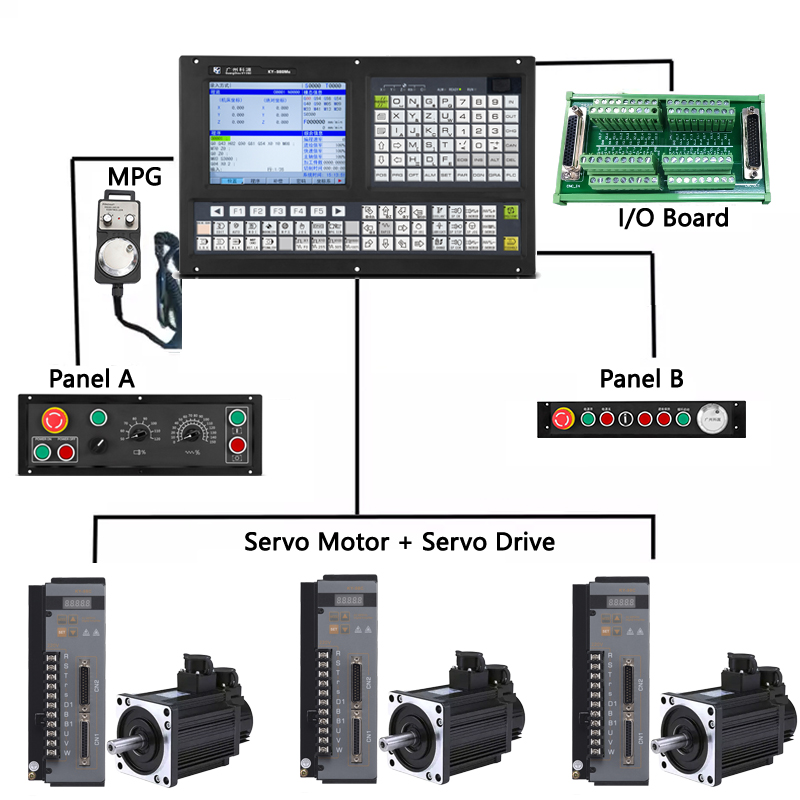

I/O	16 inputs/16 outputs, PLC online display, monitoring and design
Tool offset	none

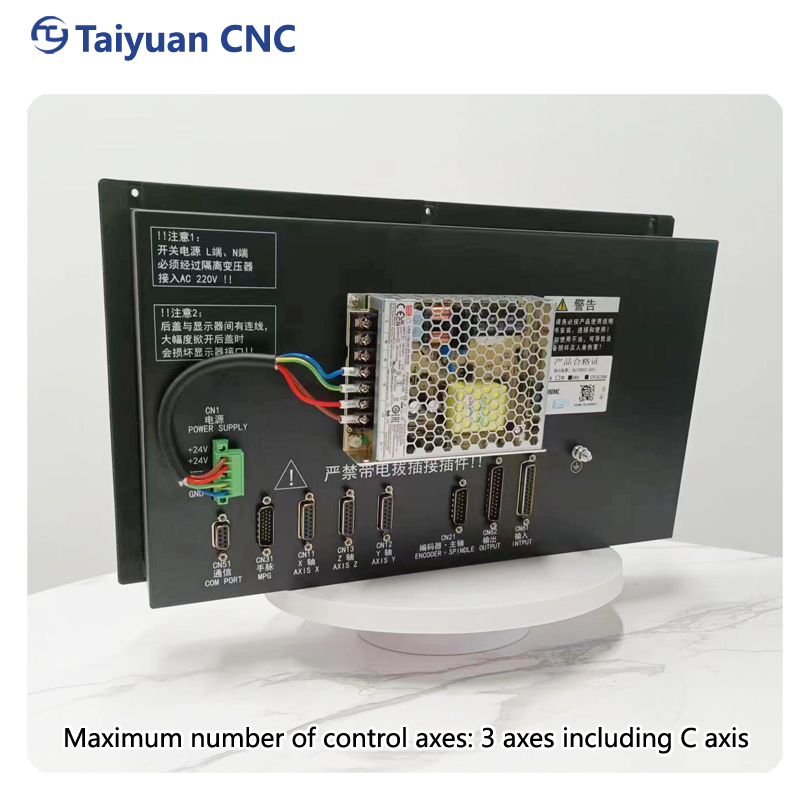

Maximum number of linkage axes	maximum control of 3 feed axes, 3-axis linkage
Menu	Chinese and English menus, programs and interfaces, full-screen version
Macro variables	supports macro program/subprogram calling, allowing 4 levels of nesting
Processing accuracy	screw pitch compensation, backlash compensation
Communication protocol	The system adopts Modbus485 protocol

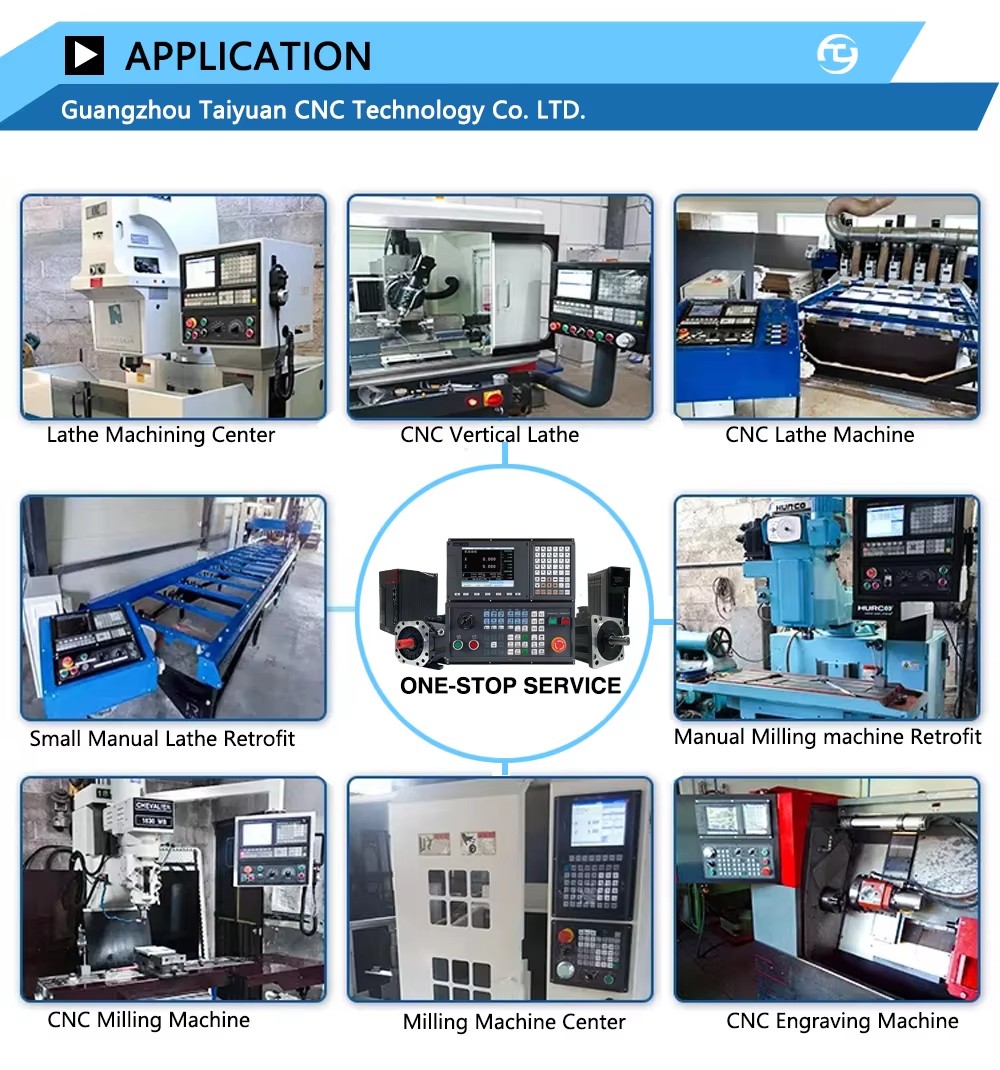

Application	CNC milling machines, drilling machines, grinders and other machinery and automation equipment
Supplementary functions	Support tool setter function, two-point centering and arc centering functio

详情图片_04.jpg 详情图片_05.jpg 详情图片_06.jpg 详情图片_07.jpg 详情图片_08.jpg 详情图片_10.jpg 详情图片_11.jpg 详情图片_12.jpg 详情图片_13.jpg 详情图片_14.jpg 详情图片_15.jpg 详情图片_16.jpg
